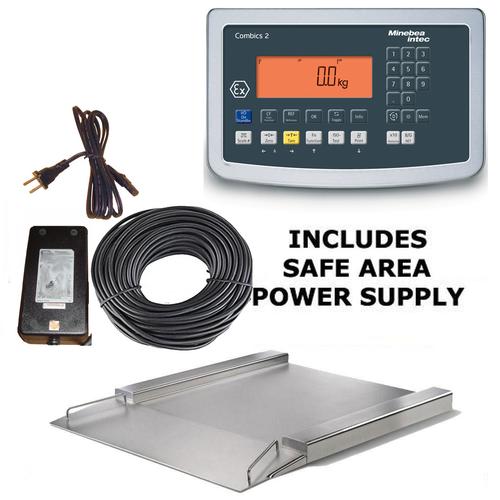

Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale, 31.5 x 31.5 inch, 660 x 0.02 lb |
|
Save valuable time. Integrate the scale into your process. Traditional floor and pit scales Immovable mechanical obstacles which hinder the process sequence. more ... |
Scales >
Industrial Scales >
Explosion Proof
|
|
|
This Item Contains the following items
|
|
|
|
Features
Minebea Stainless Steel FM Approved Flatbed Platforms With Indicator
Save valuable time. Integrate the scale into your process. Traditional floor and pit scales Immovable mechanical obstacles which hinder the process sequence. Floor pits can give rise to static problems. Hygiene problems because pits are inaccessible collection points for dirt and can only be cleaned at considerable expense. Scales are increasingly being integrated into production processes in order to make them more efficient. Applications requiring the weighing of large quantities and containers offer the greatest potential for savings as more costly handling is needed in such cases. Traditional floor scales are often a mechanical obstacle in the production process while flush installation in a floor pit hides a number of disadvantages. IF flat-bed scales from Minebea offer a practical, time-saving solution.
IF flat-bed scales
- Easy handling due to ergonomic design and sophisticated equipment.
- Ideal for clean rooms in the pharmaceutical industry,for example, as they are designed with hygiene aspects in mind.
- Suitable for operation with aggressive substances due to the use of resistant materials.
- Very easy wet cleaning e.g. in wet production facilities in the food industry.
- Freely moveable due to rollers and steering drawbar.
- Low maintenance costs and long service life due to robust construction.
- Customization on request.
- Comes with CAIXS2 Indicator.
protection classes and conformities.
- Explosion protection available as standard
Optionally, all models of series IFP4 and IFS4 are suitable for installation in potentially explosive atmospheres (Zones 2 and 22). ATEX: II 3 GD EEx nR II T6 T80°C
Ex-series models IFXS4 are suitable for installation in potentially explosive atmospheres (Zones 1 and 21 as well as 2 and 22) and comply with IP69K. ATEX: II 2 GD EEx ib II C T4 T150°C
- Display resolutions and use in legal metrology
Display resolutions of up to 15,000 steps are possible, in legal metrology up to 2x3000e as a multiple-range scale. Higher resolutions of up to 60,000 scale intervals for weighing in smaller quantities are available on request. The minimum initial weight can be provided with a DKD certificate if required. All scales have PTB test certificates and are suitable for use in legal metrology. Suitable scale indicators can be found in the broad range of Sartorius weighing and process indicators. On request we also supply DKD certificates and|or manufacturer’s test reports.
- GMP | HACCP
The constructional details of the scales (materials, protection classes, surfaces) and the associated manufacturer’s certificates are the basis for use in the regulated industries (pharmaceutical, food and drink, cosmetics). We support integration in the validation process (IQ|OQ), through to the Factory Acceptance Test (FAT).
- NIOSH
Foldable models (option T8) comply with the NIOSH requirement for cleaning by one person with minimum effort.
Sartorius CAIXS2 Combics 2 Explosion Proof Indicator
Stainless Steel housing with cable gland Integrated A/D converter, standard interface, Pre-assembled adapter cable for power supply modules
Dimensions X:
31.50
Y:
31.50
|
|
Other Minebea Intec Combics Ex Safe Area Explosion Proof Flatbed Scales
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 23.6 x 23.6 inch 330 x 0.01 lb
$17,051.95
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 23.6 x 23.6 inch 2200 x 0.1lb
$17,051.95
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 23.6 x 23.6 inch 660 x 0.02 lb
$17,051.95
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 23.6 x 23.6 inch 1320 x 0.05 lb
$17,051.95
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 23.6 inch 330 x 0.01lb
$17,252.65
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 23.6 inch 2200 x 0.1lb
$17,252.65
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 23.6 inch 660 x 0.02 lb
$17,252.65
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 23.6 inch 1320 x 0.05 lb
$17,252.65
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 31.5 inch 330 x 0.01 lb
$17,438.95
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 31.5 inch 660 x 0.02 lb
$17,438.95
You are viewing this product
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 31.5 inch 2200 x 0.1lb
$17,438.95
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 31.5 inch 3300 x 0.1 lb
$17,438.95
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 31.5 x 31.5 inch 1320 x 0.05 lb
$17,438.95
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 23.6 inch 660 x 0.02 lb
$17,814.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 23.6 inch 1320 x 0.05 lb
$17,814.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 23.6 inch 2200 x 0.1lb
$17,814.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 23.6 inch 3300 x 0.1lb
$17,814.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 23.6 inch 330 x 0.01 lb
$17,814.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 31.5 inch 660 x 0.02 lb
$18,210.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 31.5 inch 2200 x 0.1lb
$18,210.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 31.5 inch 3300 x 0.1 lb
$18,210.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 31.5 inch 330 x 0.01 lb
$18,210.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 31.5 inch 1320 x 0.05 lb
$18,210.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 39.4 inch 660 x 0.02 lb
$18,777.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 39.4 inch 1320 x 0.05 lb
$18,777.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 39.4 inch 330 x 0.01 lb
$18,777.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 39.4 inch 6600 x 0.2 lb
$18,777.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 39.4 inch 3300 x 0.1 lb
$18,777.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 39.4 x 39.4 inch 2200 x 0.1 lb
$18,777.25
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 39.4 inch 3300 x 0.1 lb
$19,276.75
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 39.4 inch 6600 x 0.2 lb
$19,276.75
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 39.4 inch 330 x 0.01 lb
$19,276.75
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 39.4 inch 2200 x 0.1lb
$19,276.75
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 39.4 inch 660 x 0.02 lb
$19,276.75
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 39.4 inch 1320 x 0.05 lb
$19,276.75
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 49.2 inch 660 x 0.02 lb
$19,836.55
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 49.2 inch 2200 x 0.1lb
$19,836.55
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 49.2 inch 1320 x 0.05 lb
$19,836.55
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 49.2 inch 3300 x 0.1 lb
$19,836.55
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 49.2 inch 6600 x 0.2 lb
$19,836.55
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 49.2 x 49.2 inch 330 x 0.01 lb
$19,836.55
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 49.2 inch 6600 x 0.2 lb
$20,368.45
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 49.2 inch 3300 x 0.1 lb
$20,368.45
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 49.2 inch 1320 x 0.05 lb
$20,368.45
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 49.2 inch 2200 x 0.1lb
$20,368.45
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 49.2 inch 330 x 0.01 lb
$20,368.45
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 49.2 inch 660 x 0.02 lb
$20,368.45
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 59.1 inch 330 x 0.01 lb
$20,903.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 59.1 inch 6600 x 0.2 lb
$20,903.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 59.1inch 3300 x 0.1 lb
$20,903.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 59.1inch 1320 x 0.05 lb
$20,903.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 59.1inch 2200 x 0.1lb
$20,903.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 59.1 x 59.1 inch 660 x 0.02 lb
$20,903.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 78.7 x 59.1 inch 330 x 0.01 lb
$21,443.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 78.7 x 59.1inch 1320 x 0.05 lb
$21,443.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 78.7 x 59.1 inch 2200 x 0.1lb
$21,443.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 78.7 x 59.1 inch 3300 x 0.1 lb
$21,443.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 78.7 x 59.1 inch 6600 x 0.2 lb
$21,443.05
|
Minebea Combics Ex Safe Area Explosion Proof Flatbed Scale 78.7 x 59.1inch 660 x 0.02 lb
$21,443.05
|
|
Specifications
Minebea Stainless Steel FM Approved Flatbed Platforms With Indicator
|
Model |
Dimensions (A x B) |
Capacity (lb) |
Readability (kg) |
Platform Height |
IFXS4-150GK |
23.6 x 23.6 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150IGK |
31.5 x 23.6 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150IIK |
31.5 x 31.5 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150LGK |
39.4 x 23.6 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150LIK |
39.4 x 31.5 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150LLK |
39.4 x 39.4 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150NLK |
49.2 x 49.2 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150NNK |
59.1 x 49.2 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150RNK |
59.1 x 59.1 |
330 x 0.01 |
150 x 0.005 |
25 |
IFXS4-150RRK |
78.7 x 59.1 |
330 x 0.01 |
150 x 0.005 |
35 |
IFXS4-150WRK |
23.6 x 23.6 |
330 x 0.01 |
150 x 0.005 |
35 |
IFXS4-300GGK |
31.5 x 23.6 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300IGK |
31.5 x 31.5 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300IIK |
39.4 x 23.6 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300LGK |
39.4 x 31.5 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300LIK |
39.4 x 39.4 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300LLK |
49.2 x 39.4 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300NLK |
49.2 x 49.2 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300NNK |
59.1 x 49.2 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300RNK |
59.1 x 59.1 |
660 x 0.02 |
300 x 0.01 |
25 |
IFXS4-300RRK |
59.1 x 59.1 |
660 x 0.02 |
300 x 0.01 |
35 |
IFXS4-300WRK |
78.7 x 59.1 |
660 x 0.02 |
300 x 0.01 |
35 |
IFXS4-600GGK |
23.6 x 23.6 |
1320 X 0.05 |
600 x 0.02 |
25 |
IFXS4-600IGK |
31.5 x 23.6 |
1320 X 0.05 |
600 x 0.02 |
25 |
IFXS4-600IIK |
31.5 x 31.5 |
1320 X 0.05 |
600 x 0.02 |
25 |
ISXP4-600LGK |
39.5 x 23.6 |
1320 X 0.05 |
600 x 0.02 |
25 |
IFXS4-600LIK |
39.5 x 31.5 |
1320 X 0.05 |
600 x 0.02 |
25 |
IFXS4-600LLK |
39.4 x 39.4 |
1320 X 0.05 |
600 x 0.02 |
25 |
IFXS4-600NLK |
49.2 x 39.4 |
1320 X 0.05 |
600 x 0.02 |
25 |
IFXS4-600NNK |
49.2 x 49.2 |
1320 X 0.05 |
600 x 0.02 |
35 |
IFXS4-600RNK |
59.1 x 49.2 |
1320 X 0.05 |
600 x 0.02 |
35 |
IFXS4-600RRK |
59.1 x 59.1 |
1320 X 0.05 |
600 x 0.02 |
35 |
IFXS4-600WRK |
78.7 x 59.1 |
1320 X 0.05 |
600 x 0.02 |
35 |
IFXS4-1KGGK |
23.6 x 23.6 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KIGK |
31.5 x 23.6 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KIIK |
31.5 x 31.5 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KLGK |
39.4 x 23.6 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KLIK |
39.4 x 31.5 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KLLK |
39.4 x 39.4 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KNLK |
49.2 x 39.4 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KNNK |
49.2 x 49.2 |
2220 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1KRNK |
59.1 x 49.2 |
2220 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1KRRK |
59.1 x 59.1 |
2220 X 0.1 |
1000 x 0.05 |
45 |
IFXS4-1KWRK |
78.7 x 59.1 |
2220 X 0.1 |
1000 x 0.05 |
45 |
IFXS4-1KGGK
| 23.6 x 23.6 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KIGK |
31.5 x 23.6 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KIIK |
31.5 x 31.5 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KLGK |
39.4 x 23.6 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KLIK |
39.4 x 31.5 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KLLK |
39.4 x 39.4 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KNLK |
49.2 x 39.4 |
2220 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1KNNK |
49.2 x 49.2 |
2220 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1KRNK |
59.1 x 49.2 |
2220 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1KRRK |
59.1 x 59.1 |
2220 X 0.1 |
1000 x 0.05 |
45 |
IFXS4-1KWRK |
78.7 x 59.1 |
2220 X 0.1 |
1000 x 0.05 |
45 |
IFXS4-1K5IIK |
31.5 x 31.5 |
3300 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1K5LGK |
39.4 x 23.6 |
3300 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1K5LIK |
39.4 x 31.5 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5LLK |
39.4 x 39.4 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5NLK |
49.2 x 39.4 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5NNK |
49.2 x 49.2 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5RNK |
59.1 x 49.2 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5RRK |
59.1 x 59.1 |
3300 X 0.1 |
1000 x 0.05 |
45 |
IFXS4-1K5WRK |
78.7 x 59.1 |
3300 X 0.1 |
1000 x 0.05 |
45 |
IFXS4-1K5IIK |
31.5 x 31.5 |
3300 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1K5LGK |
39.4 x 23.6 |
3300 X 0.1 |
1000 x 0.05 |
25 |
IFXS4-1K5LIK |
39.4 x 31.5 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5LLK |
39.4 x 39.4 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5NLK |
49.2 x 39.4 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5NNK |
49.2 x 49.2 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5RNK |
59.1 x 49.2 |
3300 X 0.1 |
1000 x 0.05 |
35 |
IFXS4-1K5RRK |
59.1 x 59.1 |
3300 X 0.1 |
1000 x 0.05 |
45 |
IFXS4-1K5WRK |
78.7 x 59.1 |
3300 X 0.1 |
1000 x 0.05 |
45 |
IFXS4-3KGGK |
39.4 x 39.4 |
6600 X 0.2 |
3000 x 0.01 |
45 |
IFXS4-3KIGK |
49.2 x 39.4 |
6600 X 0.2 |
3000 x 0.01 |
45 |
IFXS4-3KIIK |
49.2 x 49.2 |
6600 X 0.2 |
3000 x 0.01 |
45 |
IFXS4-3KLGK |
59.1 x 49.2 |
6600 X 0.2 |
3000 x 0.01 |
45 |
IFXS4-3KLIK |
59.1 x 59.1 |
6600 X 0.2 |
3000 x 0.01 |
45 |
IFXS4-3KLLK |
78.7 x 59.1 |
6600 X 0.2 |
3000 x 0.01 |
45 |
CAIXS2 Indicator |
Stainless Steel housing with cable gland Integrated A/D converter, standard interface, Pre-assembled adapter cable for power supply modules |
Cable Platform |
6m |
Approvals |
Optionally, all models of series IFP4 and IFS4 are suitable for installation in potentially explosive atmospheres (Zones 2 and 22). ATEX: II 3 GD EEx nR II T6 T80°C |
Regulatory Compliance |
HACCP, FDA, Class 10,000 clean rooms (US Federal Standard 209D) |
Warranty |
Two year limited warranty |
Load Cells |
Four hermetically sealed IP68 |
|
|
|
Optional Accessories
more info
|
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
Minebea YBP03CIS 4-leg Base For Column
Dimensions of the floor plate (LxW) 220mm x 135mm
Equipment supplied: floor –mounted column incl. fasteners (3 M4x 8 screws, screws with thread designed for wood acc. to DIN571-?6x50-A2, 4 dowels ? 8x40)
Base for installing floor-mounted column or bench stand
You can attach the base (YBP03CIS), if needed, to the bottom of the column.
At each end of the base, hook the ends of the two feet together; use the 4 Allen screws to attach the base to the column.
The illustration shows a view of the column and base from the bottom.
|
|
more info
|
Minebea YPP01CWS Printer stand for YDH03CISUS column
Minebea YPP01CWSUS Data Printer
Features
The following can be computed/printed out using this Sartorius data printer:
- Number of weighing operations
- Mean value
- Standard deviation
- Variation coefficient
- Minimum value/weight
- Maximum value/weight
- Difference between the maximum and minimum value/weight
Data are transferred either automatically or manually by pressing a key.
Built-in real-time clock
Built-in statistics program. These programs can be individually selected to meet your needs.
Counter for consecutive numbering of transactions can be activated.
High contrast LCD that shows the date or time as well as the current transaction number.
Integrated rechargeable batteries with battery level indicator.
Ultrafast print head.
Runs on the balances power, no separate power supply necessary.
Easy to change paper roll and ink ribbon cassette.
|
|
more info
|
Minebea YDH03CISUS 43in Floor Mounted Column
43in Floor Mounted Column
|
|
more info
|
Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
13" Column for attaching indicator to platform for sizes 12.6" x 9.4".
|
|
more info
|
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
19.7" Column for attaching indicator to platform for sizes 15.7" x 11.8" and 19.7" x 15.7".
|
|
more info
|
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
29.5" Column for attaching indicator to platform for sizes 19.7" x 15.7".
|
|
more info
|
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
Stainless steel holder for bench top fixing, only for platform sizes 9.4" (DC), 15.7" x 11.8" (ED) and 19.7" x 15.7" (FE).
|
|
more info
|
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
Brackets for wall mounting, stainless steel, tiltable indicator.
|
|
|
|
|
|
|
|
