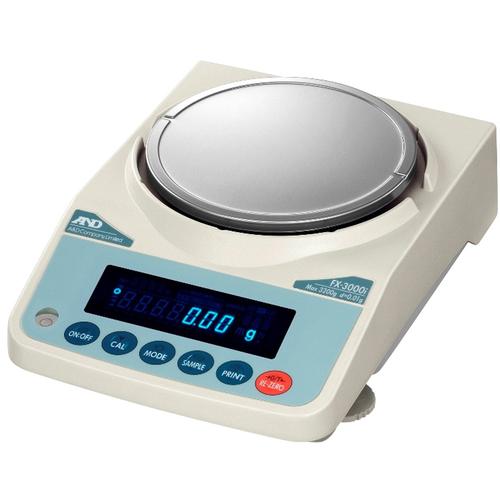

Name: AND Weighing FX-3000i Precision Balance,3200 x 0.01 g
Brand: AND Weighing
SKU: 26350
Price: 1039.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Analytical and Precision Balances

Lab Balances by Readability

Manufacturers

AND Weighing FX-3000i Precision Balance,3200 x 0.01 g
A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg resolution balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time more ...

Scales > Laboratory > Basic

AND Weighing FX-3000i Precision Balance,3200 x 0.01 g

Specifications Chart View Full Detail Page

More Products in Series

Have Questions?

email Us

Our Staff will be glad to help

AND Weighing FX-3000i Precision Balance,3200 x 0.01 g
FREE Ground Shipping
(48 US States Only)
Price: $831.60

Available to Ship

Optional Accessories

View Features

AND Weighing
SKU: FX-3000i

Features

A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg resolution balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time.

The FX-i also contains a specially designed internal shock absorber that offers protection from the adverse effects of vertical or transverse overloading. Legal-for-trade models (NTEP and Measurement Canada) are also available.

Statistical Calculation Function
The statistical values Sum, Maximum, Minimum,Range, Standard Deviation, Number of Data,and Coeffi cient of Variation can be displayedor output.

Comparator Function
Easy to compare weighing results by setting HI limit and LO limit to display HI,OK,LO indicator.

ACAI – Automatic Counting Accuracy Improvement
This counting function recalculates the average weight each time a sample is added to eliminate errors caused by variations in unit weight.

Percent Mode Function
A sample can be registered as 100% and the weight of another sample can be compared as a percentage

Animal Weighing Function
The HOLD function enables freezing of weighing data for animal weighing applications and an ANIMAL indicator appears on the display.

Underhook
The underhook allows for measurement of magnetic materials and density measurements in air and water

Standard RS-232C Interface
Incorporates bi-directional communication with a PC, printer or other peripheral devices.

GLP/GMP/GCP/ISO Compliant
In accordance with GLP and LIMS regulations the balance ID number and calibration data can be printed out using A&D’s AD-8121B or a PC.

Auto Power OFF Function
The display switches OFF automatically when the balance is inactive for 10 minutes as a power-saving tool.

Built-in Rechargeable Battery (FXi-09)
An optional Ni-MH rechargeable battery pack can be fitted into the FX-i series for use without AC power and for mobile applications (10 hours charging time for 8 hours operation).

Weight: 10.00 lb

Other AND Weighing FX-i Precision Balances

FX-120i Precision Balance 122 x 0.001 g $903.00	FX-120iNC Legal For Trade Canada Precision Balance 122 x 0.001 g $753.20	FX-120iN Legal For Trade Class II Precision Balance 122 x 0.001 g $753.20	FX-1200i Precision Balance 1220 x 0.01 g $790.16	FX-200i Precision Balance 220 x 0.001 g $772.80
FX-2000i Precision Balance 2200 x 0.01 g $807.59	AND FX-300i Precision Balance 320 x 0.001 g $810.50	FX-1200iNC Legal For Trade Canada Precision Balance 1220 x 0.01 g $789.60	FX-300iN-CA Legal For Trade Canada Precision Balance 320 x 0.001 g $789.60	FX-1200iN Legal For Trade Class II Precision Balance 1220 x 0.01 g $829.08
FX-300iN Legal For Trade Class II Precision Balance 320 x 0.001 g $829.08	FX-200iN Legal For Trade Class II Precision Balance 220 x 0.001 g $798.00	FX-200iNC Legal For Trade Canada Precision Balance 220 x 0.001 g $803.60	FX-2000iN Legal For Trade Class II Precision Balance 2200 x 0.01 g $849.66	FX-2000iNC Legal For Trade Canada Precision Balance 2200 x 0.01 g $809.20
FX-3000i Precision Balance 3200 x 0.01 g $831.60 You are viewing this product	FX-3000iNC Legal For Trade Canada Precision Balance 3200 x 0.01 g $845.60	FX-3000iN Legal For Trade Class II Precision Balance 3200 x 0.01 g $845.60	FX-500i Precision Balance 520 x 0.001 g $938.00	FX-5000i Precision Balance 5200 x 0.01 g $940.80
FX-200iN Legal For Trade Class II Precision Balance 220 x 0.001 g N/A	FX-300iN Legal For Trade Class II Precision Balance 320 x 0.001 g N/A

Specifications

Model	FX-120i	FX-200i	FX-300i	FX-500i	FX-1200i	FX-2000i	FX-3000i	FX-5000i
Capacity X Readability	122 g x 0.001g	220 g x 0.001g	320 g x 0.001g	520 g x 0.001g	1220 g x 0.01g	2200 g x 0.01g	3200 g x 0.01g	5200 g x 0.01g
	4.30 x 0.00005 oz	7.76 x 0.00005 oz	11.28 x 0.00005 oz	18.34 x 0.00005 oz	43.0 x 0.0005 oz	77.6 x 0.0005 oz	112.8 x 0.0005 oz	183.4 x 0.0005 oz
	0.268 x 0.000005 lb	0.485 x 0.000005 lb	0.705 x 0.000005 lb	1.14 x 0.000005	2.68 x 0.00005 lb	4.85 x 0.00005 lb	7.05 x 0.00005 lb	11.46 x 0.0005 lb
	0 lb, 4.30 oz x 0.01 oz	0 lb, 7.76 oz x 0.01 oz	0 lb, 11.28 oz x 0.01 oz	1 lb, 18.34 oz x 0.01 oz	2 lb, 11.30 oz x 0.01 oz	4 lb, 13.60 oz x 0.01 oz	7 lb, 0.88 oz x 0.01 oz	11 lb, 7.65 x 1 lb, 0.001 oz
	3.92 x 0.00005 ozt	7.07 x 0.00005 ozt	10.28 x 0.00005 ozt	16.71 x 0.00005 ozt	39.2 x 0.0005 ozt	70.7 x 0.0005 ozt	102.8 x 0.0005 ozt	167.18 x 0.005 ozt
	610 x 0.005 ct	1100 x 0.005 ct	1600 x 0.005 ct	2600 x 0.005 ct	6100 x 0.05 ct	11000 x 0.05 ct	16000 x 0.05 ct	26000 x 0.05 ct
	78.6 x 0.001 dwt	141.7 x 0.001 dwt	206.2 x 0.001 dwt	335.1 x 0.001 dwt	786 x 0.01 dwt	1417 x 0.01 dwt	2062 x 0.01 dwt	3351 x 0.01 dwt
	1882 x 0.02 GN	3395 x 0.02 GN	4938 x 0.02 GN	8024 x 0.02 GR	18827 x 0.2 GN	33951 x 0.2 GN	49383 x 0.2 GN	80248 x 0.2 GN
Legal For Trade Models	FX-120iN	FX-200iN	FX-300iN	-	FX-1200iN	FX-2000iN	FX-3000iN	-
Legal For Trade Models	NTEP Class II - NTEP CofC #08-045A2
NTEP Capacity X Readability	122 g x 0.01g	220 g x 0.01g	320 g x 0.01g	-	1220 g x 0.1g	2200 g x 0.1g	3200 g x 0.1g	-
Canada Measurement Models	FX-120iNC	FX-200iNC	FX-300iNC	-	FX-1200iNC	FX-2000iNC	FX-3000iNC	-
Canada Measurement Models	Canada AM-5692
Canada Measurement Capacity X Readability	122 g x 0.01g	220 g x 0.01g	320 g x 0.01g	-	1220 g x 0.1g	2200 g x 0.1g	3200 g x 0.1g	-
Pan Size	Ø 5.12”				Ø 5.91”
Units of Measurement	g, pcs, %, oz, lb, suit weighing environment conditions. fi tted into the FX-i series for use without AC power and lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes and MLT
Counting Mode	Min. Unit Mass 0.001g				Min. Unit Mass 0.01g
Counting Mode	# of Samples 5, 10, 25, 50 or 100 pieces
Percent Mode	Min. 100% Ref. Mass 0.1g				Min. 100% Ref. Mass 1.0g
Percent Mode	Min. 100% Display 0.01%, 0.1%, 1% (depends on the reference mass stored)
Repeatability (Std. Deviation	0.001g				0.01g
Linearity	±0.002g				±0.02g
Stabilization Time (typically set at FAST)	Approx. 1 second
Sensitivity Drift	±2ppm / °C (10°C to 30°C)
Operating Temp	5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation)
Display Type	Vacuum Fluorescent Display (VFD)
Display Refresh Rate	5 times / second, 10 times / second or 20 times / second
Std. Serial Interface	RS-232C Interface
Weighing Pan	130mm				150mm
External Calibration	100g 50g	200g 100g	300g 200g 100g	500g 400g 300g 200g 100g 50g	1000g 500g	2000g 1000g	3000g 2000g 1000g	5000g 4000g 3000g 2000g 1000g 500g
AC Adaptor	Confirm that the adaptor type is correct for the local voltage and power receptacle
Power Consumption	Approx. 11VA (supplied to the AC Adaptor)
External Dimensions	193 (W) x 262.5 (D) x 84.5 (H) mm
Net Weight	Approx. 2.5kg

* within the 48 continental US States

Optional Accessories

more info

AND Weighing FXi-02 USB interface with cable FXi--Series

$95.45

AND Weighing FXi-02 Quick USB interface with cable FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)

more info

AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series

$296.00

AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)

more info

AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series

$328.00

AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)

more info

AND Weighing FXi-10 Small breeze break 3.4 in for FXi--Series

$87.15

AND Weighing FXi-10 Small breeze break 3.4 in for FXi--Series Provided for FX-120i /200i /300i as standard. Can be used for FX-1200i /2000i /3000i. The Small breeze break is 3.4 inch high

more info

AND Weighing FXi-11 Large breeze break 7.9 in for FXi--Series

$141.10

AND Weighing FXi-11 Large breeze break 7.9 in for FXi--Series Breeze break with greater height. Can be used for all models. Convenient when a large beake or measuring cylinder is used and requires more height. The Large breeze break is 7.9 inch high

more info

AND Weighing FXi-12 Animal weighing pan for FZ Series

$272.00

AND Weighing FXi-12 Animal weighing pan for FZ Series

more info

AND Weighing TB:648 120V/220V AC Adapter

$67.50

Compatible with the following units: Phoenix GH Series, Gemini GR Series, Galaxy HR Series, Orion HR Series, GF Series, GX Series, FZ Series, FX Series, BM Series, MC Series, AD Pipette Series

more info

A&D Weighing AX-USB-2920-9P Plugable RS-232 to USB DB9 Converter

$67.50

A&D Weighing AX-USB-2920-9P Plugable USB to RS-232 DB9 Converter

more info

AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series

$153.55

AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series

more info

AND AD-8920A Universal Remote Display

$255.00

Universal Remote Display for AND Weighing balances Connects to A&D’s balances and scales using either RS-232C or current loop Includes an AC adapter and a communication cable that matches your instrument Recognizes the balance/scale baud setting automatically Large and bright VFD display

more info

AND AD-8922A Remote Controller

$578.65

Remote Controller for AND Weighing balances Displays weighing data Remotely controls a weighing instrument with key operations (no access to the internal settings) Outputs weighing data to another external device such as a PC or printer via the RS-232C connection Optional BCD, comparator, and analog outputs available Can be panel-mounted

more info

AND Weighing AD-1192· Compact Palm-sized Dot-impact Printer

$415.35

The AD-1192 is a compact, palm-sized dot-impact printer that provides users with essential functions. Multiple Applications - Use the AD-1192 with A&D balances & scales or in data-logging applications. Convenient - The AD-1192 is ultra compact, lightweight, low cost and operates with low power consumption. It features a paper near-end detection function. Connectivity - RS-232C serial interface

Features / Applications

Compact and light weight
Uses standard 2 ¼” paper
High speed printing
Paper near-end detection function
RS-232C interface
Low power consumption
Wall mountable
Balance & scale data
Weighing slips

more info

AND Weighing KO:WW9-25: RS-232C Cable, 25 pin male to 9 pin female for AD-1192

$54.00

AND Weighing ,KO:WW9-25:, RS-232C Cable,, 25 pin male to 9 pin female RS-232C Cable, 25 pin male to 9 pin female (for BM, EJ, EKi/EWi, FCi/FCSi, FXi(WP)/ FZi(WP), GH, JM) RS-232C Cable, 25 pin male to 9 pin female (for BM, EJ, EKi/EWi, FCi/FCSi, FXi(WP)/ FZi(WP), GH, JM)

more info

AND Weighing AD-8127 Compact Multi-Function Printer

$817.50

Features

Easy setting and operation with a numeric keypad and LCD display
Built-in calendar and clock for printing date and time at any time
Sends re-zero and weighing data request commands to the balance/scale
Clear and visible dot matrix printing, which also enables long-term preservation of the printed records
Compact and lightweight for portability and installation anywhere
Interval printing mode for printing weighing data at set intervals
Chart printing mode for printing time-series variations of weighing data
Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from the balance/scale
Performs and prints the results of statistical calculation including standard deviation
Prints an ID number set for the printer at any time
Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to connect to balances/scales with different interfaces*
Receives a print, paper feed, print statistical calculation results, print total, re-zero, or weighing data request command from the optional foot switch (AX-SW128)

Character specifications	7 × 9 dots, 1.6 (W) × 3.2 (H) mm
Printing speed	Approx. 1.6 lines/second
Paper feeding speed	Approx. 4 lines/second
Number of characters printed	24 characters/line
Printer paper width	57.5 mm
Operating environment	0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation)
Storage environment	-20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation)
Interface	RS-232C (D-Sub 9P, male) / Current loop (DIN)
Power supply	AC adapter
Size / weight	174 (W) × 141 (D) × 87 (H) mm / approx. 500 g
Standard accessories	Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)*
