AND Weighing AD-1192· Compact Palm-sized Dot-impact Printer |
|
| The AD-1192 is a compact, palm-sized dot-impact printer that provides
users with essential functions. more ... |
|
|
|
|
|
|
|
Features
The AD-1192 is a compact, palm-sized dot-impact printer that provides users with essential functions.
Multiple Applications - Use the AD-1192 with A&D balances & scales or in data-logging applications.
Convenient - The AD-1192 is ultra compact, lightweight, low cost and operates with low power consumption. It features a paper near-end detection function.
Connectivity - RS-232C serial interface
Features / Applications
- Compact and light weight
- Uses standard 2 ¼” paper
- High speed printing
- Paper near-end detection function
- RS-232C interface
- Low power consumption
- Wall mountable
- Balance & scale data
- Weighing slips
Weight:
1.00 lb
|
|
Specifications
| Model |
AD-1192 |
| Printing Method |
Dot Matrix |
| Print Direction |
Uni-directional |
| Character Cofing (W x H) |
(4+0.5) x 8 |
| Number of Columns |
40 columns: 180 dots/line |
| Print Speed |
Approx. 1.8 lines/sec |
| Character Size (W x H) |
1.08 x 2.4 mm |
| Character Spacing |
1.19 mm |
| Line Pitch |
3.52 mm |
| Paper Feed Speed |
Approx. 3.6 lines/sec |
| Paper |
Single sheet, copier paper (original and copy),
Total thickness: 0.13 mm or less
Paper roll: 57.5 ± 0.5 (W) x 60 or 80 (Dia) mm
Core ID: Ø12 ± 1 mm
Core OD: Ø18 ± 1 mm |
| input Buffer |
2K bytes |
| Ink Ribbon |
Black, Service life: approx. 250,000 characters |
| Power Supply |
DC 7V ± 1V (Printing) Use exclusive adapter (DC 7V 1.6A) |
| Power Consumption |
Printing: Approx. 7VA
Stand-by: Approx. 0.5VA
|
| Weight |
Approx. 470g |
| Dimensions (W x D x H) |
106 x 180 x 88 mm / 4.2 x 7.5 x 3.5 in. |
| Environment - Operation |
Temperature 0-40°C
Humidity 35-85% RH (without condensation) |
| Environment - Storage |
Temperature 20-60°C
Humidity 10-90% RH (without condensation)
|
| Reliability |
MCBF 1 million lines |
Options/Accessories
- KO:1131- RS-232C Cable, 25 pin male to 25 pin male (for GF/X-K, GH, GR, GX/GF, GP, HD, HR/HRi, MC, MS/MX/MF/ ML, SV/SVA, AD-4212 series)
- KO:WW9-25 - RS-232C Cable, 25 pin male to 9 pin female (for BM, EJ, EKi/EWi, FCi/FCSi, FXi(WP)/ FZi(WP), GH, JM)
- KO:WW25-7 RS-232C Cable, 25 pin male to 7 pin male (for FG-K, HCi, HV, HV-G, HW-G, HV-WP, HW-WP )
- AD-1192-1 Replacement Ribbon
- AD-1192-2 Replacement Power Cord
- WP:PP137 Roll Paper, 2.25ø, 5 rolls per carton
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|

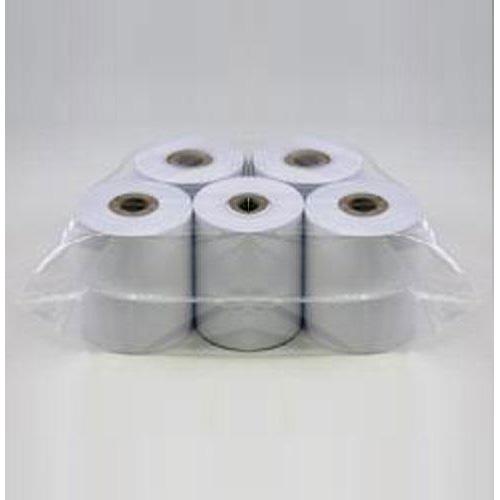

AND Weighing WP:PP137 Roll Paper (5 Rolls) for AD-1192
