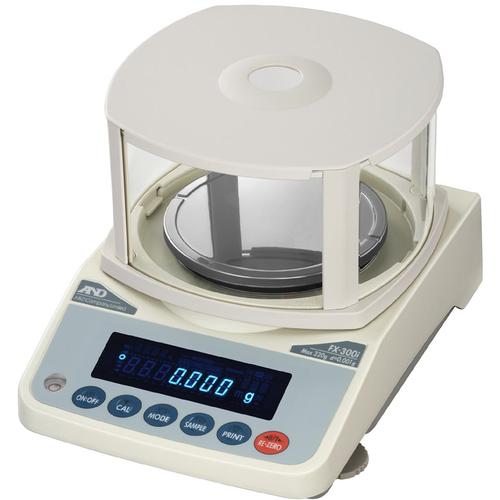

AND Weighing FX-500i Precision Balance 520 x 0.001 g |
|
A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg resolution balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time more ... |
Scales >
Laboratory >
Basic
|
|
|
|
Features
A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg resolution balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time.
The FX-i also contains a specially designed internal shock absorber that offers protection from the adverse effects of vertical or transverse overloading. Legal-for-trade models (NTEP and Measurement Canada) are also available.
Statistical Calculation Function
The statistical values Sum, Maximum, Minimum,Range, Standard Deviation, Number of Data,and Coeffi cient of Variation can be displayedor output.
Comparator Function
Easy to compare weighing results by setting HI limit and LO limit to display HI,OK,LO indicator.
ACAI – Automatic Counting Accuracy Improvement
This counting function recalculates the average weight each time a sample is added to eliminate errors caused by variations in unit weight.
Percent Mode Function
A sample can be registered as 100% and the weight of another sample can be compared as a percentage
Animal Weighing Function
The HOLD function enables freezing of weighing data for animal weighing applications and an ANIMAL indicator appears on the display.
Underhook
The underhook allows for measurement of magnetic materials and density measurements in air and water
Standard RS-232C Interface
Incorporates bi-directional communication with a PC, printer or other peripheral devices.
GLP/GMP/GCP/ISO Compliant
In accordance with GLP and LIMS regulations the balance ID number and calibration data can be printed out using A&D’s AD-8121B or a PC.
Auto Power OFF Function
The display switches OFF automatically when the balance is inactive for 10 minutes as a power-saving tool.
Built-in Rechargeable Battery (FXi-09)
An optional Ni-MH rechargeable battery pack can be fitted into the FX-i series for use without AC power and for mobile applications (10 hours charging time for 8 hours operation).
Weight:
10.00 lb
|
|
Other AND Weighing FX-i Precision Balances
|
Specifications
Model |
FX-120i |
FX-200i |
FX-300i |
FX-500i |
FX-1200i |
FX-2000i |
FX-3000i |
FX-5000i |
Capacity X Readability |
122 g x 0.001g |
220 g x 0.001g |
320 g x 0.001g |
520 g x 0.001g |
1220 g x 0.01g |
2200 g x 0.01g |
3200 g x 0.01g |
5200 g x 0.01g |
4.30 x 0.00005 oz |
7.76 x 0.00005 oz |
11.28 x 0.00005 oz |
18.34 x 0.00005 oz |
43.0 x 0.0005 oz |
77.6 x 0.0005 oz |
112.8 x 0.0005 oz |
183.4 x 0.0005 oz |
0.268 x 0.000005 lb |
0.485 x 0.000005 lb |
0.705 x 0.000005 lb |
1.14 x 0.000005 |
2.68 x 0.00005 lb |
4.85 x 0.00005 lb |
7.05 x 0.00005 lb |
11.46 x 0.0005 lb |
0 lb, 4.30 oz x 0.01 oz |
0 lb, 7.76 oz x 0.01 oz |
0 lb, 11.28 oz x 0.01 oz |
1 lb, 18.34 oz x 0.01 oz |
2 lb, 11.30 oz x 0.01 oz |
4 lb, 13.60 oz x 0.01 oz |
7 lb, 0.88 oz x 0.01 oz |
11 lb, 7.65 x 1 lb, 0.001 oz |
3.92 x 0.00005 ozt |
7.07 x 0.00005 ozt |
10.28 x 0.00005 ozt |
16.71 x 0.00005 ozt |
39.2 x 0.0005 ozt |
70.7 x 0.0005 ozt |
102.8 x 0.0005 ozt |
167.18 x 0.005 ozt |
610 x 0.005 ct |
1100 x 0.005 ct |
1600 x 0.005 ct |
2600 x 0.005 ct |
6100 x 0.05 ct |
11000 x 0.05 ct |
16000 x 0.05 ct |
26000 x 0.05 ct |
78.6 x 0.001 dwt |
141.7 x 0.001 dwt |
206.2 x 0.001 dwt |
335.1 x 0.001 dwt |
786 x 0.01 dwt |
1417 x 0.01 dwt |
2062 x 0.01 dwt |
3351 x 0.01 dwt |
1882 x 0.02 GN |
3395 x 0.02 GN |
4938 x 0.02 GN |
8024 x 0.02 GR |
18827 x 0.2 GN |
33951 x 0.2 GN |
49383 x 0.2 GN |
80248 x 0.2 GN |
Legal For Trade Models |
FX-120iN |
FX-200iN |
FX-300iN |
- |
FX-1200iN |
FX-2000iN |
FX-3000iN |
- |
NTEP Class II - NTEP CofC #08-045A2 |
NTEP Capacity X Readability |
122 g x 0.01g |
220 g x 0.01g |
320 g x 0.01g |
- |
1220 g x 0.1g |
2200 g x 0.1g |
3200 g x 0.1g |
- |
Canada Measurement Models |
FX-120iNC |
FX-200iNC |
FX-300iNC |
- |
FX-1200iNC |
FX-2000iNC |
FX-3000iNC |
- |
Canada AM-5692 |
Canada Measurement Capacity X Readability |
122 g x 0.01g |
220 g x 0.01g |
320 g x 0.01g |
- |
1220 g x 0.1g |
2200 g x 0.1g |
3200 g x 0.1g |
- |
Pan Size |
Ø 5.12” |
Ø 5.91” |
Units of Measurement |
g, pcs, %, oz, lb, suit weighing environment conditions. fi tted into the FX-i series for use without AC power and
lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes and MLT |
Counting Mode |
Min. Unit Mass 0.001g |
Min. Unit Mass 0.01g |
# of Samples 5, 10, 25, 50 or 100 pieces |
Percent Mode |
Min. 100% Ref. Mass 0.1g |
Min. 100% Ref. Mass 1.0g |
Min. 100% Display 0.01%, 0.1%, 1% (depends on the reference mass stored) |
Repeatability (Std. Deviation |
0.001g |
0.01g |
Linearity |
±0.002g |
±0.02g |
Stabilization Time (typically set at FAST) |
Approx. 1 second |
Sensitivity Drift |
±2ppm / °C (10°C to 30°C) |
Operating Temp |
5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation) |
Display Type |
Vacuum Fluorescent Display (VFD) |
Display Refresh Rate |
5 times / second, 10 times / second or 20 times / second |
Std. Serial Interface |
RS-232C Interface |
Weighing Pan |
130mm |
150mm |
External Calibration |
100g 50g |
200g 100g |
300g 200g 100g |
500g 400g 300g 200g 100g 50g |
1000g 500g |
2000g 1000g |
3000g 2000g 1000g |
5000g 4000g 3000g 2000g 1000g 500g |
AC Adaptor |
Confirm that the adaptor type is correct for the local voltage and power receptacle |
Power Consumption |
Approx. 11VA (supplied to the AC Adaptor) |
External Dimensions |
193 (W) x 262.5 (D) x 84.5 (H) mm |
Net Weight |
Approx. 2.5kg |
|
|
|
* within the 48 continental US States
|
