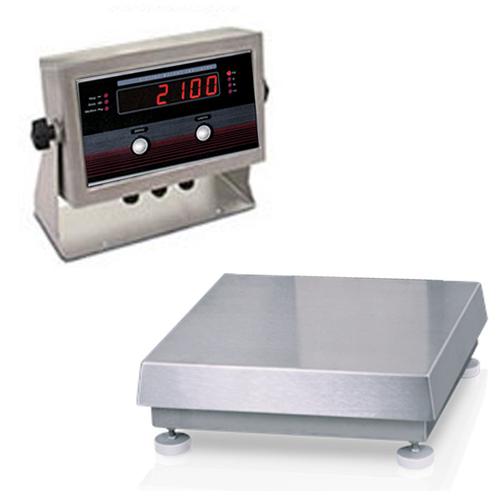

Rice Lake IQ plus® 2100SL 65172 Legal for Trade 12 x 12 inch Bench Scale with Tilt Stand 30 lb x 0.01 lb |
|
| This special 2100 model is enhanced with a four-point spring plate suspension, to minimize shock and overload damage. For increased durability, the 2100SL is an economical and durable checkweigher. more ... |
|
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
|
|
Features
The IQ plus® 2100SL
This special 2100 model is enhanced with a four-point spring plate suspension, to minimize shock and overload damage. For increased durability, the 2100SL is an economical and durable checkweigher.
Unmatched Features and Value. The 2100SL is ideal for use in general purpose weighing, portioning, and a variety of food processing applications. Stainless steel buttons repel messy ingredient spills and damage by knife point, while the NEMA 4X stainless steel indicator enclosure stands up to frequent washdown. Standard overload stops protect the base during heavy use
All operations are controlled through two buttons—zero and units. Push-button zero and a full range of units, including lb/oz, offer the flexibility needed for a wide variety of applications.
Offering the unique capability to read lb and oz simultaneously, the 2100SL lends itself to portioning and ingredient weighing. The two-button keypad and vibrant display that is visible from all angles make operation so easy that users are sure to lock in the most accurate weighments.
- NEMA Type 4X/IP66
- 304 stainless steel construction
- Large, bold 0.8 in light emitting diode (LED) display
- Status annunciators: lb, kg, oz, g, negative, motion, center of zero
- 1 full-duplex RS-232 port
- 2 digital inputs for remote zero, print and units
- 12 in column, attachment bracket or tilt stand for table, wall or under counter mounting
- Aluminum, single-point load cell
- Overload and upload stops on scale base
- Stainless steel, non-tactile feel, piezo zero and units buttons
- Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
- PreVent™ breather vent
- LifeGuard™ base design isolates load cell from overloads and shock loads for added durability (Maximum Overload - 200%)
- Meets USDA requirements
Weight:
24.00 lb
|
|
Technical Specifications
Capacity x Readability
30 x 0.01 lb; 15 x 0.005 kg; 15000 x 5 g; 480 x 0.20 oz
Legal For Trade
Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d Base: NTEP CC 95-072, Class III 5,000 d
Line Voltages
: 115 or 230 VAC
Power Consumption
70mA at 115 VAC (8 W) , 35mA at 230 VAC (8 W)
Display Resolution
10,000 dd
Digital Inputs
2 inputs, TTL or switch closure, active-low
Digital Filter
Software selectable
Serial Communications
Full-duplex RS-232; 9600, 4800, 2400, 1200 bps; 7 or 8 data bits; even, odd or no parity
Display
6-digit light emitting diode (LED) display. 7-segment, 0.8 in (20mm) digits
LED Annunciators
: Negative value, center of zero, motion, kg, g, lb, oz
Keypad
2 stainless steel piezo switches
Operating Temperature
14 0 F to 104 0 F (-10 0 C to 40 0 C)
Rating/Material
NEMA Type 4X/IP66, stainless steel
Warranty
Two-year limited warranty
Approvals
Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d; Measurement Canada, AM-5374; UL and C-UL listed; Base: NTEP CC 95-072, Class III 5,000 d
|
|
|
Other Rice Lake IQ plus® 2100SL Legal for Trade Legal for Trade Bench Scales with 200% Overload

IQ plus® 2100SL 65169 Legal for Trade 10 x 10 inch Bench Scale with Tilt Stand 10 lb x 0.002 lb
$1,185.60
|

IQ plus® 2100SL 65170 Legal for Trade 10 x 10 inch Bench Scale with Tilt Stand 20 lb x 0.005 lb
$1,185.60
|

IQ plus® 2100SL 65171 Legal for Trade 10 x 10 inch Bench Scale with Tilt Stand 30 lb x 0.01 lb
$1,185.60
|

IQ plus® 2100SL 65168 Legal for Trade 10 x 10 inch Bench Scale with Tilt Stand 5 lb x 0.001 lb
$1,185.60
|

IQ plus® 2100SL 65172 Legal for Trade 12 x 12 inch Bench Scale with Tilt Stand 30 lb x 0.01 lb
$1,259.70
You are viewing this product
|

IQ plus® 2100SL 65173 Legal for Trade 12 x 12 inch Bench Scale with Tilt Stand 50 lb x 0.01 lb
$1,259.70
|

IQ plus® 2100SL 65174 Legal for Trade 12 x 12 inch Bench Scale with Tilt Stand 100 lb x 0.02 lb
$1,259.70
|

IQ plus® 2100SL 65178 Legal for Trade 10 x 10 inch Bench Scale with Attachment Bracket 30 lb x 0.01 lb
$1,263.60
|

IQ plus® 2100SL 65177 Legal for Trade 10 x 10 inch Bench Scale with Attachment Bracket 20 lb x 0.005 lb
$1,263.60
|

IQ plus® 2100SL 65176 Legal for Trade 10 x 10 inch Bench Scale with Attachment Bracket 10 lb x 0.002 lb
$1,263.60
|

IQ plus® 2100SL 65175 Legal for Trade 10 x 10 inch Bench Scale with Attachment Bracket 5 lb x 0.001 lb
$1,263.60
|

IQ plus® 2100SL 65182 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 5 lb x 0.001 lb
$1,298.70
|

IQ plus® 2100SL 65183 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 10 lb x 0.002 lb
$1,298.70
|

IQ plus® 2100SL 65184 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 20 lb x 0.005 lb
$1,298.70
|

IQ plus® 2100SL 65185 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 30 lb x 0.01 lb
$1,298.70
|

IQ plus® 2100SL 65179 Legal for Trade 12 x 12 inch Bench Scale with Attachment Bracket 30 lb x 0.01 lb
$1,337.70
|

IQ plus® 2100SL 65180 Legal for Trade 12 x 12 inch Bench Scale with Attachment Bracket 50 lb x 0.01 lb
$1,337.70
|

IQ plus® 2100SL 65181 Legal for Trade 12 x 12 inch Bench Scale with Attachment Bracket 100 lb x 0.02 lb
$1,337.70
|

IQ plus® 2100SL 65186 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 30 lb x 0.01 lb
$1,372.80
|

IQ plus® 2100SL 65187 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 50 lb x 0.01 lb
$1,372.80
|

IQ plus® 2100SL 65188 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 100 lb x 0.02 lb
$1,372.80
|
|
IQ plus® 2100SL Legal for Trade Legal for Trade Bench Scales with 200% Overload Specifications
| Model |
65168 |
65169 |
65170 |
65171 |
65172 |
65173 |
65174 |
65175 |
65176 |
65177 |
65178 |
65179 |
65180 |
65181 |
| Capacity x Readability |
5 x 0.001 lb 2.5 x 0.0005 kg 2500 x 0.5 g 80 x 0.02 oz |
10 x 0.002 lb 5 x 0.001 kg 5000 x 1 g 160 x 0.05 oz |
20 x 0.005 lb 10 x 0.002 kg 10000 x 2 g 320 x 0.10 oz |
30 x 0.01 lb 15 x 0.005 kg 15000 x 5 g 480 x 0.20 oz |
30 x 0.01 lb 15 x 0.005 kg 15000 x 5 g 480 x 0.20 oz |
50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.20 oz |
100 x 0.02 lb 50 x 0.01 kg 50000 x 10 g 1600 x 0.50 oz |
5 x 0.001 lb 2.5 x 0.0005 kg 2500 x 0.5 g 80 x 0.02 oz |
10 x 0.002 lb 5 x 0.001 kg 5000 x 1 g 160 x 0.05 oz |
20 x 0.005 lb 10 x 0.002 kg 10000 x 2 g 320 x 0.10 oz |
30 x 0.01 lb 15 x 0.005 kg 15000 x 5 g 480 x 0.20 oz |
30 x 0.01 lb 15 x 0.005 kg 15000 x 5 g 480 x 0.20 oz |
50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.20 oz |
100 x 0.02 lb 50 x 0.01 kg 50000 x 10 g 1600 x 0.50 oz |
| Size |
10 x 10 in |
10 x 10 in |
10 x 10 in |
10 x 10 in |
12 x 12 in |
12 x 12 in |
12 x 12 in |
10 x 10 in |
10 x 10 in |
10 x 10 in |
10 x 10 in |
12 x 12 in |
12 x 12 in |
12 x 12 in |
| Includes |
Tilt Stand |
Attachment Bracket |
| Legal For Trade |
Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d Base: NTEP CC 95-072, Class III 5,000 d |
| Line Voltages: |
115 or 230 VAC |
| Frequency |
50 or 60Hz |
| Power Consumption |
70mA at 115 VAC (8 W) , 35mA at 230 VAC (8 W) |
| Display Resolution |
10,000 dd |
| Digital Inputs |
2 inputs, TTL or switch closure, active-low |
| Digital Filter |
Software selectable |
| Serial Communications |
Full-duplex RS-232; 9600, 4800, 2400, 1200 bps; 7 or 8 data bits; even, odd or no parity |
| Display |
6-digit light emitting diode (LED) display. 7-segment, 0.8 in (20mm) digits |
| LED Annunciators: |
Negative value, center of zero, motion, kg, g, lb, oz |
| Keypad |
2 stainless steel piezo switches |
| Operating Temperature |
14° F to 104° F (-10°C to 40°C) |
| Rating/Material |
NEMA Type 4X/IP66, stainless steel |
| Warranty |
Two-year limited warranty |
| Approvals |
Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d
Measurement Canada, AM-5374;
UL and C-UL listed
Base: NTEP CC 95-072, Class III 5,000 d |
| Model |
65182 |
65183 |
65184 |
65185 |
65186 |
65187 |
65188 |
| Capacity x Readability |
5 x 0.001 lb 2.5 x 0.0005 kg 2500 x 0.5 g 80 x 0.02 oz |
10 x 0.002 lb 5 x 0.001 kg 5000 x 1 g 160 x 0.05 oz |
20 x 0.005 lb 10 x 0.002 kg 10000 x 2 g 320 x 0.10 oz |
30 x 0.01 lb 15 x 0.005 kg 15000 x 5 g 480 x 0.20 oz |
30 x 0.01 lb 15 x 0.005 kg 15000 x 5 g 480 x 0.20 oz |
50 x 0.01 lb 25 x 0.005 kg 25000 x 5 g 800 x 0.20 oz |
100 x 0.02 lb 50 x 0.01 kg 50000 x 10 g 1600 x 0.50 oz |
| Size |
10 x 10 in |
10 x 10 in |
10 x 10 in |
10 x 10 in |
12 x 12 in |
12 x 12 in |
12 x 12 in |
| Includes |
12 in column |
| Legal For Trade |
Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d Base: NTEP CC 95-072, Class III 5,000 d |
| Line Voltages: |
115 or 230 VAC |
| Frequency |
50 or 60Hz |
| Power Consumption |
70mA at 115 VAC (8 W) , 35mA at 230 VAC (8 W) |
| Display Resolution |
10,000 dd |
| Digital Inputs |
2 inputs, TTL or switch closure, active-low |
| Digital Filter |
Software selectable |
| Serial Communications |
Full-duplex RS-232; 9600, 4800, 2400, 1200 bps; 7 or 8 data bits; even, odd or no parity |
| Display |
6-digit light emitting diode (LED) display. 7-segment, 0.8 in (20mm) digits |
| LED Annunciators: |
Negative value, center of zero, motion, kg, g, lb, oz |
| Keypad |
2 stainless steel piezo switches |
| Operating Temperature |
14° F to 104° F (-10°C to 40°C) |
| Rating/Material |
NEMA Type 4X/IP66, stainless steel |
| Warranty |
Two-year limited warranty |
| Approvals |
Indicator: NTEP CC 00-045 Class III/IIIL 10,000 d
Measurement Canada, AM-5374;
UL and C-UL listed
Base: NTEP CC 95-072, Class III 5,000 d |
|
|
|
|
|
|
| |
|
|
Product support
Frequently asked questions
Helpful answers about this product.
What is the weighing capacity and readability of this bench scale?
This scale has a 30 lb capacity with 0.01 lb readability.
What is the platform size?
The scale has a 12 x 12 inch platform.
Is this scale legal for trade?
Yes, this model is listed as legal for trade.
Does this scale include a tilt stand?
Yes, this product includes a tilt stand.
|
|
|
|
