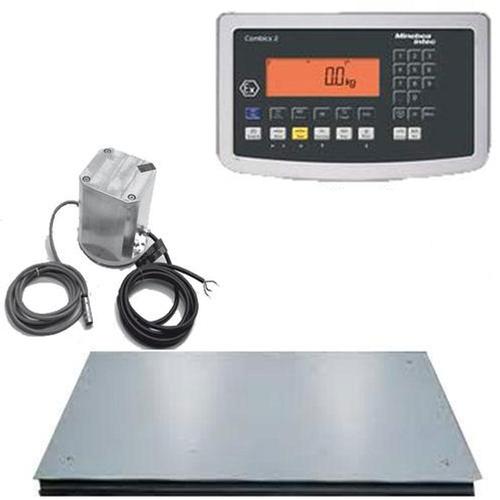

Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 600 x 0.02 lb |
|
FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CIX53-U Can be used in areas where explosive gas and dust mixtures occur Documentation to verify intrinsic safety available upon request Completely constructed with AISI 304 stainless steel more ... |
Scales >
Industrial Scales >
Explosion Proof
|
|
|
This Item Contains the following items
|
|
|
|
Features
Minebea Intec Combics
Explosion Proof Bench and Floor Platforms
Standard Features
- FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CIX53-U
- Can be used in areas where explosive gas and dust mixtures occur
- Documentation to verify intrinsic safety available upon request
- Completely constructed with AISI 304 stainless steel
- All units are built for easy cleaning and disinfection and meet HACCP and FDA requirements for the food industry.
- Load cells are hermetically sealed, IP68 protection rated
- Load cell cables are 10ft (for bases up to 30in x 30in) or 20ft (for bases 36in x 36in and larger)
- NEMA4/IP67 protection rated
- Pit frames for flush mounting available
- High resolution 30,000d
Applications
- Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing
- Regulatory Compliance
- NEMA, HACCP, FDA, GLP/GMP*, FM
Dimensions X:
30.00
Y:
30.00
|
|
Other Minebea Intec Combics 2 Explosion Proof Hazardous Area Floor Scales
Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 30 x 0.001 lb
$5,965.85
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 15 x 0.0005 lb
$6,013.55
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 60 x 0.002 lb
$6,046.85
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 12 x 12in 60 x 0.002 lb
$6,138.65
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 12 x 12in 150 x 0.005 lb
$6,171.05
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 60 x 0.002 lb
$6,533.75
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 150 x 0.005 lb
$6,541.85
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 200 x 0.01 lb
$6,586.85
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 150 x 0.005 lb
$10,564.85
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 300 x 0.01 lb
$10,653.05
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 600 x 0.02 lb
$10,653.05
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 300 x 0.01 lb
$11,177.75
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 150 x 0.005 lb
$11,177.75
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 600 x 0.02 lb
$11,177.75
You are viewing this product
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 1500 x 0.05 lb
$11,177.75
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 x 36in 1500 x 0.05 lb
$12,660.95
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 x 36in 3000 x 0.1 lb
$12,660.95
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 X 36in 6000 x 0.2 lb
$12,660.95
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 x 48 3000 x 0.1 lb
$14,639.15
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 X 48in 6000 x 0.2 lb
$14,639.15
|
Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 x 48in 1500 x 0.05 lb
$14,886.65
|
|
Specifications
300 to 6000 lb models |
MODEL |
CIXS3 CAPXS4U-250GG-I |
CIXS3 CAPXS4U-250HH-I |
CIXS3 CAPXS4U-500GG-I |
CIXS3 CAPXS4U-500HH-I |
CIXS3 CAPXS4U-1000HH-I |
CIXS3 CAPXS4U-1000KK-I |
CIXS3 CAPXS4U-1000NN-I |
CIXS3 CAPXS4U-2500KK-I |
CIXS3 CAPXS4U-2500NN-I |
CIXS3 CAPXS4U-5000KK-I |
CIXS3 CAPXS4U-5000NN-I |
Capacity / Readability (Lbs.) |
300 x 0.01 lb |
300 x 0.01 lb |
600 x 0.02 lb |
600 x 0.02 lb |
1500 x 0.05 lb |
1500 x 0.05 lb |
1500 x 0.05 lb |
3000 x 0.1 lb |
3000 x 0.1 lb |
6000 x 0.2 lb |
6000 x 0.2 lb |
Capacity / Readability (Kg.) |
150 x 0.005 kg |
150 x 0.005 kg |
300 x 0.01 kg |
300 x 0.01 kg |
600 x 0.02 kg |
600 x 0.02 kg |
600 x 0.02 kg |
1500 x 0.05 kg |
1500 x 0.05 kg |
3000 x 0.1 kg |
3000 x 0.1 kg |
Dimension |
24" x 24" |
30” x 30” |
24” x 24” |
30” x 30” |
30” x 30” |
36" x 36" |
48” x 48” |
36” x 36” |
48” x 48” |
36” x 36” |
48” x 48” |
Indicator |
Sartorius CAIXS2 Combics 2 Explosion- Proof Indicator |
|
Stainless Steel Platform |
IP Protection |
IP67 |
Platform Resolution |
30,000d |
Connecting Cable |
10 ft |
10 ft |
10 ft |
10 ft |
10 ft |
20 ft |
20 ft |
20 ft |
20 ft |
20 ft |
20 ft |
FM Approved |
Class 1,2,3,Division 1,Groups A,B,C,D,E,F.G,T4 More info |
Shipping Weight |
121 lb |
187 lb |
121 lb |
187 lb |
187 lb |
250 lb |
390 lb |
250 lb |
390 lb |
250 ft |
390 ft |
|
|
|
|
Optional Accessories
more info
|
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
Minebea YBP03CIS 4-leg Base For Column
Dimensions of the floor plate (LxW) 220mm x 135mm
Equipment supplied: floor –mounted column incl. fasteners (3 M4x 8 screws, screws with thread designed for wood acc. to DIN571-?6x50-A2, 4 dowels ? 8x40)
Base for installing floor-mounted column or bench stand
You can attach the base (YBP03CIS), if needed, to the bottom of the column.
At each end of the base, hook the ends of the two feet together; use the 4 Allen screws to attach the base to the column.
The illustration shows a view of the column and base from the bottom.
|
|
more info
|
Minebea YPP01CWS Printer stand for YDH03CISUS column
Minebea YPP01CWSUS Data Printer
Features
The following can be computed/printed out using this Sartorius data printer:
- Number of weighing operations
- Mean value
- Standard deviation
- Variation coefficient
- Minimum value/weight
- Maximum value/weight
- Difference between the maximum and minimum value/weight
Data are transferred either automatically or manually by pressing a key.
Built-in real-time clock
Built-in statistics program. These programs can be individually selected to meet your needs.
Counter for consecutive numbering of transactions can be activated.
High contrast LCD that shows the date or time as well as the current transaction number.
Integrated rechargeable batteries with battery level indicator.
Ultrafast print head.
Runs on the balances power, no separate power supply necessary.
Easy to change paper roll and ink ribbon cassette.
|
|
more info
|
Minebea YDH03CISUS 43in Floor Mounted Column
43in Floor Mounted Column
|
|
more info
|
Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
13" Column for attaching indicator to platform for sizes 12.6" x 9.4".
|
|
more info
|
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
19.7" Column for attaching indicator to platform for sizes 15.7" x 11.8" and 19.7" x 15.7".
|
|
more info
|
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
29.5" Column for attaching indicator to platform for sizes 19.7" x 15.7".
|
|
more info
|
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
Stainless steel holder for bench top fixing, only for platform sizes 9.4" (DC), 15.7" x 11.8" (ED) and 19.7" x 15.7" (FE).
|
|
more info
|
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
Brackets for wall mounting, stainless steel, tiltable indicator.
|
|
|
|
|
|
|
