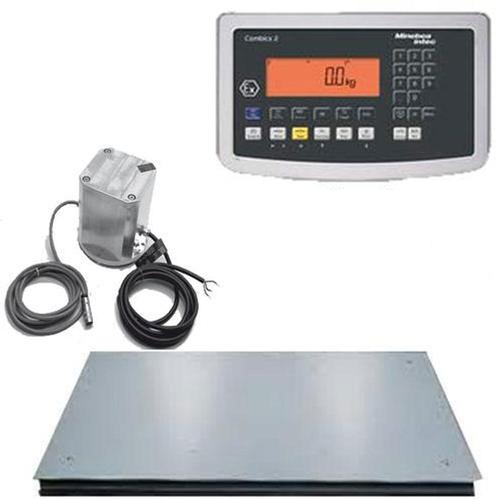

Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in, 30 x 0.001 lb
FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CIX53-U Can be used in areas where explosive gas and dust mixtures occur Documentation to verify intrinsic safety available upon request Completely constructed with AISI 304 stainless steel more ...
Scales >
Industrial Scales >
Explosion Proof
This Item Contains the following items
Features
Minebea Intec Combics
Explosion Proof Bench and Floor Platforms
Standard Features
FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CIX53-U
Can be used in areas where explosive gas and dust mixtures occur
Documentation to verify intrinsic safety available upon request
Completely constructed with AISI 304 stainless steel
All units are built for easy cleaning and disinfection and meet HACCP and FDA requirements for the food industry.
Load cells are hermetically sealed, IP68 protection rated
Load cell cables are 10ft (for bases up to 30in x 30in) or 20ft (for bases 36in x 36in and larger)
NEMA4/IP67 protection rated
Pit frames for flush mounting available
High resolution 30,000d
Applications
Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing
Regulatory Compliance
NEMA, HACCP, FDA, GLP/GMP*, FM
Dimensions X:
10.00
Y:
10.00
Other Minebea Intec Combics 2 Explosion Proof Hazardous Area Floor Scales
Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 15 x 0.0005 lb
$6,205.10
Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 30 x 0.001 lb
$6,205.10
You are viewing this product
Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 60 x 0.002 lb
$6,205.10
Minebea Combics 2 Hazardous Area Explosion Proof Scale 12 x 12in 60 x 0.002 lb
$6,350.00
Minebea Combics 2 Hazardous Area Explosion Proof Scale 12 x 12in 150 x 0.005 lb
$6,350.00
Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 60 x 0.002 lb
$6,674.00
Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 150 x 0.005 lb
$6,674.00
Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 200 x 0.01 lb
$6,674.00
Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 X 36in 6000 x 0.2 lb
$9,025.30
Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 150 x 0.005 lb
$10,565.60
Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 300 x 0.01 lb
$10,565.60
Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 600 x 0.02 lb
$10,565.60
Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 150 x 0.005 lb
$10,925.60
Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 300 x 0.01 lb
$10,925.60
Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 600 x 0.02 lb
$10,925.60
Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 1500 x 0.05 lb
$10,925.60
Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 x 36in 3000 x 0.1 lb
$11,610.50
Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 x 36in 1500 x 0.05 lb
$11,852.60
Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 x 48 3000 x 0.1 lb
$13,107.20
Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 X 48in 6000 x 0.2 lb
$13,107.20
Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 x 48in 1500 x 0.05 lb
$13,494.20
Specifications
MODEL
CAPXS1U-10CC-I
CAPXS1U-20CC-I
CAPXS1U-50CC-I
CAPXS1U-50DD-I
CAPXS1U-50EE-I
CAPXS1U-100DD-I
CAPXS1U-100EE-I
CAPXS4U-100GG-I
CAPXS4U-100HH-I
CAPXS1U-200EE-I
Capacity / Readability (Lbs.)
15 x 0.0005 lb
30 x 0.001 lb
60 x 0.002 lb
60 x 0.002 lb
60 x 0.002 lb
150 x 0.005 lb
150 x 0.005 lb
150 x 0.005 lb
150 x 0.005 lb
200 x 0.01 lb
Capacity / Readability (Kg.)
6 x 0.0002 kg
15 x 0.0005 kg
30 x 0.001 kg
30 x 0.001 kg
30 x 0.001 kg
60 x 0.002 kg
60 x 0.002 kg
60 x 0.002 kg
60 x 0.002 kg
100 x 0.005 kg
Dimension
10" x 10"
10” x 10”
10” x 10”
12” x 12”
18” x 18”
12" x 12"
18” x 18”
24” x 24”
30” x 30”
18” x 18”
Stainless Steel Platform
IP Protection
IP67
Platform Resolution
30,000d
Connecting Cable
10 ft
10 ft
10 ft
10 ft
10 ft
10 ft
10 ft
10 ft
10 ft
10 ft
FM Approved
Class 1,2,3,Division 1,Groups A,B,C,D,E,F.G,T4 More info
Shipping Weight
16 lb
16 lb
16 lb
24 lb
62 lb
24 lb
62 lb
121 lb
187 lb
62 ft
* within the 48 continental US States
Optional Accessories
more info
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
Minebea YBP03CIS 4-leg Base For Column
Dimensions of the floor plate (LxW) 220mm x 135mm
Equipment supplied: floor –mounted column incl. fasteners (3 M4x 8 screws, screws with thread designed for wood acc. to DIN571-?6x50-A2, 4 dowels ? 8x40)
Base for installing floor-mounted column or bench stand
You can attach the base (YBP03CIS), if needed, to the bottom of the column.
At each end of the base, hook the ends of the two feet together; use the 4 Allen screws to attach the base to the column.
The illustration shows a view of the column and base from the bottom.
more info
Minebea YPP01CWS Printer stand for YDH03CISUS column
Minebea YPP01CWSUS Data Printer
Features
The following can be computed/printed out using this Sartorius data printer:
Number of weighing operations
Mean value
Standard deviation
Variation coefficient
Minimum value/weight
Maximum value/weight
Difference between the maximum and minimum value/weight
Data are transferred either automatically or manually by pressing a key.
Built-in real-time clock
Built-in statistics program. These programs can be individually selected to meet your needs.
Counter for consecutive numbering of transactions can be activated.
High contrast LCD that shows the date or time as well as the current transaction number.
Integrated rechargeable batteries with battery level indicator.
Ultrafast print head.
Runs on the balances power, no separate power supply necessary.
Easy to change paper roll and ink ribbon cassette.
more info
Minebea YDH03CISUS 43in Floor Mounted Column
43in Floor Mounted Column
more info
Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
13" Column for attaching indicator to platform for sizes 12.6" x 9.4".
more info
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
19.7" Column for attaching indicator to platform for sizes 15.7" x 11.8" and 19.7" x 15.7".
more info
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
29.5" Column for attaching indicator to platform for sizes 19.7" x 15.7".
more info
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
Stainless steel holder for bench top fixing, only for platform sizes 9.4" (DC), 15.7" x 11.8" (ED) and 19.7" x 15.7" (FE).
more info
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
Brackets for wall mounting, stainless steel, tiltable indicator.
