Name: Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in, 60 x 0.002 lb
Brand: Minebea Intec
SKU: 43700
Price: 6533.75 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in, 60 x 0.002 lb
FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CIX53-U Can be used in areas where explosive gas and dust mixtures occur Documentation to verify intrinsic safety available upon request Completely constructed with AISI 304 stainless steel more ...

Scales > Industrial Scales > Explosion Proof

Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in, 60 x 0.002 lb

Specifications Chart View Full Detail Page

More Products in Series

Have Questions?

email Us

Our Staff will be glad to help

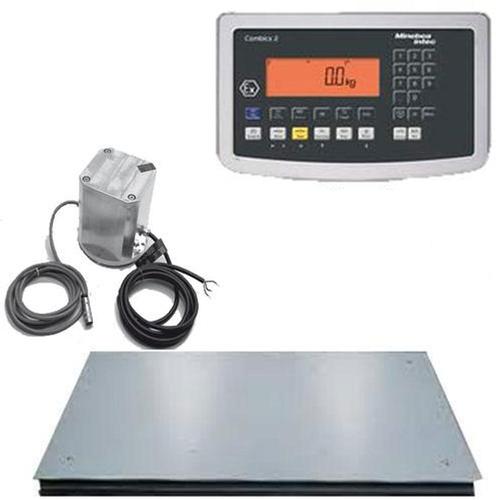

This Item Contains the following items

1 x Minebea CAPXS1U-50EE-I Explosion Proof Platform 18 x 18in, 60 x 0.002 lb

1 x Minebea YPS02-XUR Power Supply, Hazardous area for USA

1 x Minebea CAIXS2-U Combics 2 Explosion- Proof Indicator

Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in, 60 x 0.002 lb
FREE Ground Shipping
(48 US States Only)

Price: $6,533.75

Available to Ship

Optional Accessories

	Minebea YBP03CIS 4-leg Base For YDH03CISUS Column , $262.80

	Minebea YPP01CWS Printer stand for YDH03CISUS column , $274.50

	Minebea YDH03CISUS 43in Floor Mounted Column , $386.10

	Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High , $573.30

	Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High , $293.40

	Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High , $345.60

	Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series , $124.20

	Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series , $104.40

View Features

Minebea Intec
SKU: Comb1860

Features

Minebea Intec Combics

Explosion Proof Bench and Floor Platforms

Standard Features

FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CIX53-U
Can be used in areas where explosive gas and dust mixtures occur
Documentation to verify intrinsic safety available upon request
Completely constructed with AISI 304 stainless steel
All units are built for easy cleaning and disinfection and meet HACCP and FDA requirements for the food industry.
Load cells are hermetically sealed, IP68 protection rated
Load cell cables are 10ft (for bases up to 30in x 30in) or 20ft (for bases 36in x 36in and larger)
NEMA4/IP67 protection rated
Pit frames for flush mounting available
High resolution 30,000d

Applications

Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing
Regulatory Compliance
NEMA, HACCP, FDA, GLP/GMP*, FM

Dimensions
X: 18.00 Y: 18.00

Other Minebea Intec Combics 2 Explosion Proof Hazardous Area Floor Scales

Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 30 x 0.001 lb $5,965.85	Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 15 x 0.0005 lb $6,013.55	Minebea Combics 2 Hazardous Area Explosion Proof Scale 10 x 10in 60 x 0.002 lb $6,046.85	Minebea Combics 2 Hazardous Area Explosion Proof Scale 12 x 12in 60 x 0.002 lb $6,138.65	Minebea Combics 2 Hazardous Area Explosion Proof Scale 12 x 12in 150 x 0.005 lb $6,171.05
Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 60 x 0.002 lb $6,533.75 You are viewing this product	Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 150 x 0.005 lb $6,541.85	Minebea Combics 2 Hazardous Area Explosion Proof Scale 18 x 18in 200 x 0.01 lb $6,586.85	Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 150 x 0.005 lb $10,564.85	Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 300 x 0.01 lb $10,653.05
Minebea Combics 2 Hazardous Area Explosion Proof Scale 24 x 24in 600 x 0.02 lb $10,653.05	Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 300 x 0.01 lb $11,177.75	Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 150 x 0.005 lb $11,177.75	Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 600 x 0.02 lb $11,177.75	Minebea Combics 2 Hazardous Area Explosion Proof Scale 30 x 30in 1500 x 0.05 lb $11,177.75
Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 x 36in 1500 x 0.05 lb $12,660.95	Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 x 36in 3000 x 0.1 lb $12,660.95	Minebea Combics 2 Hazardous Area Explosion Proof Scale 36 X 36in 6000 x 0.2 lb $12,660.95	Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 x 48 3000 x 0.1 lb $14,639.15	Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 X 48in 6000 x 0.2 lb $14,639.15
Minebea Combics 2 Hazardous Area Explosion Proof Scale 48 x 48in 1500 x 0.05 lb $14,886.65

Specifications

MODEL	CAPXS1U-10CC-I	CAPXS1U-20CC-I	CAPXS1U-50CC-I	CAPXS1U-50DD-I	CAPXS1U-50EE-I	CAPXS1U-100DD-I	CAPXS1U-100EE-I	CAPXS4U-100GG-I	CAPXS4U-100HH-I	CAPXS1U-200EE-I
Capacity / Readability (Lbs.)	15 x 0.0005 lb	30 x 0.001 lb	60 x 0.002 lb	60 x 0.002 lb	60 x 0.002 lb	150 x 0.005 lb	150 x 0.005 lb	150 x 0.005 lb	150 x 0.005 lb	200 x 0.01 lb
Capacity / Readability (Kg.)	6 x 0.0002 kg	15 x 0.0005 kg	30 x 0.001 kg	30 x 0.001 kg	30 x 0.001 kg	60 x 0.002 kg	60 x 0.002 kg	60 x 0.002 kg	60 x 0.002 kg	100 x 0.005 kg
Dimension	10" x 10"	10” x 10”	10” x 10”	12” x 12”	18” x 18”	12" x 12"	18” x 18”	24” x 24”	30” x 30”	18” x 18”
	Stainless Steel Platform
IP Protection	IP67
Platform Resolution	30,000d
Connecting Cable	10 ft	10 ft	10 ft	10 ft	10 ft	10 ft	10 ft	10 ft	10 ft	10 ft
FM Approved	Class 1,2,3,Division 1,Groups A,B,C,D,E,F.G,T4 More info
Shipping Weight	16 lb	16 lb	16 lb	24 lb	62 lb	24 lb	62 lb	121 lb	187 lb	62 ft

* within the 48 continental US States

Optional Accessories

more info

Minebea YBP03CIS 4-leg Base For YDH03CISUS Column

$262.80

Minebea YBP03CIS 4-leg Base For Column

Dimensions of the floor plate (LxW) 220mm x 135mm

Equipment supplied: floor –mounted column incl. fasteners (3 M4x 8 screws, screws with thread designed for wood acc. to DIN571-?6x50-A2, 4 dowels ? 8x40)

Base for installing floor-mounted column or bench stand

You can attach the base (YBP03CIS), if needed, to the bottom of the column.

At each end of the base, hook the ends of the two feet together; use the 4 Allen screws to attach the base to the column.

The illustration shows a view of the column and base from the bottom.
