AND Weighing GP-100K Industrial Scale, 100 kg x 1 g |
|
The GP Series industrial scales incorporate the enhanced Super Hybrid weighing sensor. The most accurate weighing results for industrial balances. With RS232, data memory, interval weighing, GLP, densitiy determination, multiple weighing modes and more more ... |
Scales >
Industrial Scales >
High Resolution Bench Scales
|
|
|
|
Features

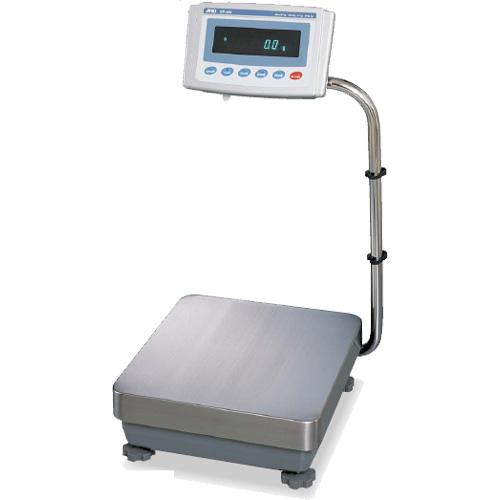

The AND Weighing GP Series industrial Scales
incorporate the enhanced weighing sensor, Double Leveraged Super Hybrid
Sensor (SHS). Building on the basic SHS features of speed and stabilization,
the enhanced SHS technology brings the most accurate weighing results
to industrial balances in 12kg to 101kg capacities.
- IP-65 Splash Proof Keyboard, Display and
Base Units - resists dust, water and moisture
- Swing-arm display
- GLP/GMP/ISO Compliant - output data to
AD-8121 printer or PC indicating date, time, balance ID, serial
number and calibration data
- Balance ID Number - used to identify balance when GLP is used.
ID number is stored in memory, even if the AC adapter is removed.
- PC control - control the balance by command to query for weighing
data, to control the balance, to control the memory function or to
control the comparator function of the balance
- Optional Underhook - ideal for density
determination and for weighing magnetic substances
- Density Determination of a Solid Object
- Enlargement Indication of HI, OK, LO Symbols
- Accumulation of Weighing Results
- Time and Date - complies with GLP and
interval weighing in the Data Memory function
- Auto Self Checking - automatically checks
itself when setting the Automatic Adjustment Environment
- Data Memory -- format the data memory
function for:
- 200 sets of weighing data
- 100 sets of weighing data with time and date
- 20 sets of tare values
- 50 sets of GLP data, time & date, calibration data, ID
number and serial number
- 50 sets of unit weight for counting mode
- 20 sets of comparator upper and lower limits
- Interval Time Setting - weighing intervals
of 2, 5, 10, 30 seconds and 1, 2, 5, 10 minutes in the Data Memory
function
- Auto Re-Zero - re-zeros automatically
after data input
- Large Stainless Steel Weighing Pan
- Multiple Weighing Units and Programmable
Unit including animal weighing, automatic adjustable environmental
settings, comparator function, ACAI counting function, percentage
weighing function and capacity indicator (g, kg, lb, oz, ct, dwt,
mom, tl, ms, tola and ds)
- Air Bubble Leveling - easily check the
balance for level installation
- SmartRange (on GP22K and GP-102K)
- Clear and large VFD display is easy to see -- even in the dark.
Wide angle view prevents mistakes.
- Built-In Internal Calibration Mass with
automatic self calibration (automatically detects ambient temperature
changes)
- With WinCT (Windows Communication Tools Software) - provides easy
transmission of weighing data from the balance to a computer using
the RS232. Quickly exports data into Windows applications.
- RS-232 interface - allows you to transfer data between a USB equipped
PC and multiple GP balances. This makes your GP balance hot-swappable
with no need to turn the balance(s) and computer off before disconnecting
the balance.
- Display Auto Power OFF - display turns
off after 10 minutes of inactivity
- Auto Power ON - turns on automatically
when plugged in
- Density Determination Mode - available after changing the internal
parameter settings. Once the objects weight in the air, in liquid
and the liquid density are input, the solid density will be calculated
(ideal for determining concretes density)
- Accumulation Model - accumulate your weighing results then display
and/or output them
Specifications
- Stabilization Time: 1.5 seconds
- Display Refresh: 5 times per second / 10 times per second
- Operating Temp: 5°C ~ 40 °C (14°F ~ 104°F)
- Power: 14 VA (supplied by AC adapter)
Model with Swing Arm display type |
GP-12K |
GP-20K |
GP-30K |
GP-32K |
GP-40K |
GP-60K |
GP-61K |
GP-100K |
GP-102K |
|
|
|
|
|
|
|
|
|
Model with detached display unit |
- |
- |
GP-30KS |
GP-32KS |
- |
GP-60KS |
GP-61KS |
GP-100KS |
- |
- |
- |
|
|
- |
|
|
|
|
Weighing Capacity |
12kg |
21kg |
31kg |
31kg/6.1kg |
41kg |
61kg |
61kg |
101kg |
101kg/61kg |
Resolution |
0.1g |
1g/0.1g (Smart Range) |
0.5g |
1g |
0.1g |
1g |
10g/1g (Smart Range) |
Repeatability (Standard Deviation) |
0.1g |
0.5g/0.1g |
0.5g |
0.7g |
0.2g |
1g |
5g/1g |
Linearity |
±0.2g |
±1g/±0.2g |
±1g |
±0.5g |
±2g |
±10g/±2g |
Stabilization Time |
1.5 seconds (TYP at FAST mode) |
Accuracy just calibrated by internal mass |
±1.0g |
±1.5g |
±1.0g |
±1.5g |
±5g |
±3.0g |
±10g |
Sensitivity Drift (10¢ªC-30¢ªC/50¢ªF-86¢ªF) |
±3ppm/¢ªC |
±5ppm/¢ªC |
±6ppm/¢ªC |
±10ppm/¢ªC |
Operating Temperature |
5¢ªC to 40¢ªC ( 41¢ªF to 104¢ªF ), 85% RH or less ( No condensation ) |
Sensing Method |
Super Hybrid Sensor (SHS) |
Display Type |
Vacuum Fluorescent Display (VFD) |
Display Refresh Rates |
5 times/second or 10 times/second |
Weighing Units and Modes |
g, kg, lb, L OZ, OZ, ct, dwt, OZt, mom, TL, MS, tola, DS and % and counting PCS [ Weighing units g, ct, and dwt are not available on GP-102K] |
Counting Mode |
Minimum unit mass |
0.1g |
1g |
0.5g |
1g |
0.1g |
1g |
10g |
Number of samples |
10, 25, 50 or 100 pieces |
Percent Mode |
Min. 100% reference mass |
10g |
100g |
50g |
100g |
10g |
100g |
1000g |
Min. 100% display |
0.01%, 0.1%, 1% (automatically switches depening on the reference mass stored) |
Standard Interface |
RS-232C Serial Interface with Windows Communication Tools (WinCT) |
Recommended External Calibrating Weight |
5kg 10kg |
10kg 20kg |
20kg 30kg |
20kg 30kg |
20kg 30kg 40kg |
30kg 40kg 50kg 60kg |
20kg 30kg 40kg 50kg 60kg |
60kg 80kg 100kg |
Water & Dustproof Level |
Complies with IP-65 (International Protect), covers the entire apparatus |
Weighing Pan |
Stainless steel weighing pan (Wash down type) 384mm x 344mm |
386mm x 346mm |
Calibration |
Motor-driven internal calibration mass with SHS |
External Dimensions |
372(W)x615(D)x130(H)mm (Note: GP-30KS is 344(W)x442(D)x130(H)mm) |
373(W)x615(D)x130(H)mm (Note: GP-100KS is 346(W)x443(D)x130(H)mm) |
AC Adaptor |
Please confirm that the adapter is correct for the local voltage and power receptacle. |
AC Adaptor |
Please confirm that the adapter is correct for the local voltage and power receptacle. |
Power Consumption |
Approximately 14VA (supplied by AC adaptor) |
Net Weight |
Approximately 17kg |
Approximately 18kg |
Dimensions (mm)
|
|
