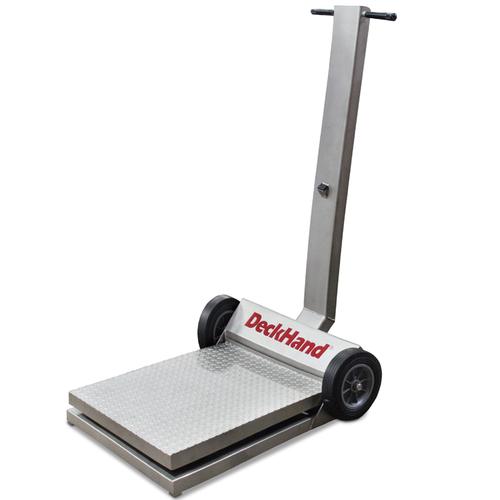

Rice Lake 41298 Deckhand DH2000SS Legal for Trade Stainless Steel 2000 lb - Base Only |
|
| The DeckHand portable scale is a mobile floor scale with an indicator platform. Partnered with one of Rice Lake’s battery-operated indicators, such as the 482 Plus Legend® series indicator, you will have a clearly visible weight anywhere the scale is located. If product is loaded off-center, all four corners of the platform weigh perfectly, so weight is measured accurately from anywhere on the platform. Take this scale to any work area for the immediate weight of large stationary items. more ... |
|
Industrial Scales >
Scale Bases No Indicator >
Scale Bases with Wheels
|
|
|
|
|
|
Features
The DeckHand portable scale is a mobile floor scale with an indicator platform. Partnered with one of Rice Lake’s battery-operated indicators, such as the 482 Plus Legend® series indicator, you will have a clearly visible weight anywhere the scale is located. If product is loaded off-center, all four corners of the platform weigh perfectly, so weight is measured accurately from anywhere on the platform. Take this scale to any work area for the immediate weight of large stationary items.
The DeckHand large rubber wheels simplify movement on uneven floors. The two wheels hover when stationary, so the weighing platform remains stable despite variances in floor contour. Environmentally sealed aluminum load cells help keep things lighter for easier mobility.
- Mild or stainless steel wheeled frame, base and mast
- Diamond tread top plate, mild or stainless steel
- Large rubber wheels (not rated for IS) simplify movement on uneven floors
- Two IP67 aluminum load cells
- Standard indicator mount with integral handles for the 380/380X Synergy, 480/480 Plus, 482/482 Plus, 880/880 Plus, 680 Synergy and 381 Synergy
|
|
Other Rice Lake Deckhand Base Only
|
Specifications
| Model |
41293
DH500 |
41294
DH1000 |
41295
DH2000 |
211285
DH500 |
211286
DH1000 |
211287
DH2000 |
41296
DH500SS |
41297
DH1000SS |
41298
DH2000SS |
| Capacity |
500 lb |
1000 lb |
2000 lb |
500 lb |
1000 lb |
2000 lb |
500 lb |
1000 lb |
2000 lb |
| Type |
Mild Steel |
Mild Steel, with conductive wheel for use with 882IS |
Stainless Steel |
| Top Plate |
diamond-tread |
diamond-tread |
Smooth top |
| Pan Size |
30.375 x 24 inch |
| Legal For Trade |
NTEP Calss III #98-004 2,500 d
Measurement Canada #AM-5218 |
| End Load Capacity |
100% end loading |
| Cable length |
9 ft 10 in (3 m) |
| mV/V Output |
2 mV/V |
| Weighing Platter |
4.5 in height when in weigh mode |
| Column Height |
59 in |
| Warranty |
Weldment: Five-year - Load cells: Two- year - All other components: One- year |
| Options |
Ramps, Smooth top, Mounting Bracket |
|
|
|
|
|
|
|
|
|
|
|
|
