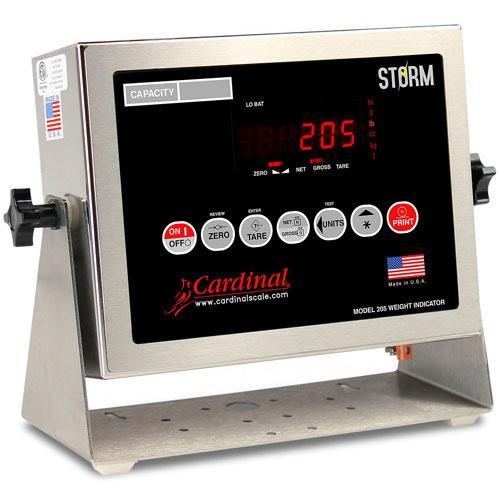

The Cardinal model 205 is a reliable general-purpose weight indicator which may be connected to bench, floor, overhead track, tank/hopper, livestock or even truck scales. The stainless steel desk or wall-mountable enclosure ensures accurate, reliable operation in harsh environments and washdown applications. An easy-to-read 0.6-inch/15 mm high bright-red LED displays weight to six digits while push-button Gross, Tare, Net conversion, StableSENSE adjustable filtering, selectable key lockout, flexible print formats, selectable weight units, auto shutoff and sleep mode make the 205 easy to use. Four bi-directional RS232 serial ports, four input control lines, optional SnapStream wireless, USB-B standard, and USB-A optional features provide multiple connectivity options. NTEP, OIML, Measurement Canada,
4 RS232 Serial Ports
Gross/Tare/Net Conversion
IP67 Enclosure Rating
NTEP Legal for Trade
OIML Certified
Powers up to 8 Load Cells
Stainless Steel Enclosure
USB-B Standard - USB-A Optional
Loaded with Time-Tested Features
Cardinal’s model 205 and 210 STORM
indicators are ideal for a wide variety of weighing
applications ranging from bench and floor scales to the most sophisticated vehicle scale. The four serial ports and wireless capability with SnapStream ease
interfacing with remote displays, printers and PC’s.
Livestock Weighing Whether you’re weighing a single animal or an entire herd, the 210 indicator makes it simple. Cardinal’s StableSENSE® digital filter minimizes the effects of moving livestock while the 210 can provide time, date, ID, consecutive number, gross weight, head count and average head weight for recording.
Complete Ticket Configurability
Convenient print tab settings with X-Y
coordinates make it easy to set up a ticket with the information you need to print for any ASCII printer. With Cardinal’s powerful nControl software you can create
additional custom print formats for truck tickets, weight receipts, and even
bar-coded labels to your specifications.
Digital Fill Control
Cardinal’s model 210 STORM indicator supports single and dual-speed digital fill control operation and allows a variety of discharge gate configurations. The 210 includes up to 25 stored preset / accumulators and remote inputs for Zero, Tare, Gross, Units, Start, Stop and Print.
205 and 210 Standard Features
Push-button Tare
Gross, Tare, Net display
Selectable key lockout
Hi-Resolution mode
StableSENSE® adjustable filtering
Gross and Net accumulators
Four serial ports
USB interface
Programmable print format using Visual Print or nControl (2 Visual Tickets available)
SMA level 2 compliant serial communications
Field re-programmable via PC connection
Test feature (performs display and internal tests)
Auto Shutoff and Sleep modes
210 Exclusive Features
Alphanumeric keypad
Keypad Tare
Count feature with accumulator
Time and Date with selectable 12 or 24 hour format
Checkweigher
Eight (8) preset weight comparators
Axle weigher (CWL-40) operation mode
Animal weigher
ID storage
2-Speed fill control
Eight (8) remote inputs for Zero, Tare, Gross, Units, Start, Stop and Print (1,000 feet maximum)
Optional Features
Analog output
PLC interface (Remote I/O, EIP, Modbus TCP)
10/100 mbps Ethernet TCP/IP adapter
Additional serial port
Internal relay box
External relay box
Column mounting
Checkweigher light bar
Wireless Options
When equipped with Cardinal Scale’s proprietary SnapStream Wireless
Interface, the 205 and 210 indicators can send weight data wirelessly to a host of peripheral equipment including
printers, remote displays, PCs and
networks. SnapStream is a fully integrated NTEP legal-for-trade wireless scale system for use in both commercial and non-commercial applications.
Custom Applications
Need a special application? the Cardinal’s in-house software team is ready to write special software for both the 205 and 210 to meet your unique requirements. Note that the memory capacity of the 210 has been
doubled from the previous version to support your most complex application. Please give us a call at 1-800 832-0055 or e-mail to discuss custom applications
4 ea serial I/O ports configured as:
1 ea 20mA output-only ports (uses one of the four RS-232 ports)
1 ea bi-directional 20mA port (uses one of the four RS-232 ports)
1 ea USB port (uses one of the four RS-232 ports)
-
-
8 ea remote isolated inputs
8 ea remote isolated outputs
100 to 240 VAC (50/60 Hz) at 0.4A Max. / 190DC: 10.5 to 30 VDC 1.0A Max
100 to 240 VAC (50/60 Hz) at 0.4A Max
Enclosure Type:
Thermoplastic IP69K wall or desk-mount
IP67 Stainless steel wall or desk-mount
Enclosure Size
9.4 inch W x 6.4 inch H x 3.7 inch D / 239 mm W x 163 mm H x 93 mm D
9.2-in W x 7.5-in H x 3.1-in D (233-mm W x 191-mm H x 79-mm D)
Operating Environment
Temperature: 14 to 104 ºF (-10 to +40 ºC) Humidity: 90% non-condensing (maximum)
Compensated Temperature Range: 14 to 104 ºF (-10 to 40 ºC) Operating Temperature Range: -10 to 122 ºF (-23 to 50 ºC) Humidity: 90% non-condensing (maximum)
Display:
Six digit, seven segment, 1.0 inch high Backlit LCD
Six-digit, seven-segment, 0.6-in (15-mm) high LED
Transducer Excitation
5.18 VDC
9.4 VDC
Signal Input Range
0.5 mV min. to 40 mV max. (with dead load boost)
1.0 mV min. to 40 mV max. (with dead load boost)
Number of Load Cells
6 each, 350 OHM minimum resistance
8 each 350-ohm load cells
Load Cell Cable Length
1500 feet maximum. 30 feet maximum without sense lines Consult factory for other requirements
11,500 feet (457 m) maximum (requires the use of sense lines). Consult factory for other requirements. 30 feet (9 m) maximum without sense lines
Division Value
1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001 commercial 0 to 99, non-commercial
Commercial: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001 Non-commercial: 1 to 99 x 10, 1, 0.1, 0.01, 0.001
