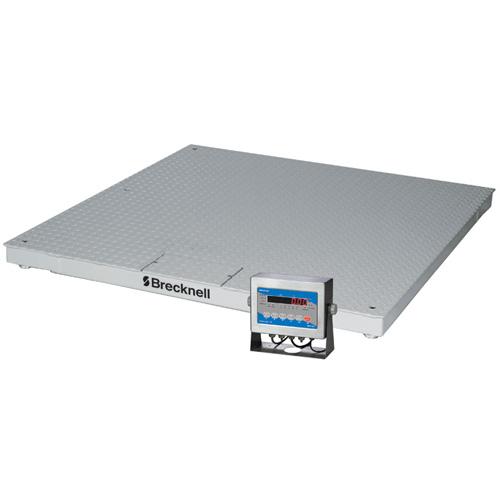

Salter Brecknell DCSB6060-05 Pegasus Digital Floor Scales (5 x 5) 5000 x 1 lb |
|
| Capacities in 5000 or 10000 lbs, weighs in both lbs and kgs. In 36 x 36, 48 x 48 or 60 x 60 platform sizes. Legal for trade. Mild steel construction with powder coat paint finish with leveling feet, RS232 and 4 alloy tool steel potted loadcells more ... |
|
Industrial Scales >
Floor Scales >
0 lb to 5000 lb
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:5000 lbx 1 lb
Legal For Trade: 5000 lb x 1 lb
Pan Size
5 x 5 ft
|
|
|
|
|
|
|
|
|
Features
IP65 rated mild steel general purpose weighing platform with alloy tool steel potted load cells. Pre-calibrated with SBI-521 LED indicator and interface cable
- Pre-calibrated to SBI-521 LED Indicator
- Easy Installation– Units can be placed into service with no on-site installation required
- Capacity and Size– Match a capacity and size with SBI-521 LED indicator
- A/D Conversion Rate – Up to 25 measurements per second
|
|
Specifications
| Model |
DCSB3636-02 |
DCSB4848-05 |
DCSB6060-05 |
DCSB4848-10 |
DCSB6060-10 |
| Capacity x Readability |
2,000 x 0.5 lb
1,000 x 0.1 kg |
5,000 x 1 lb
2500 x 0.5 kg |
5,000 x 1 lb
2500 x 0.5 kg |
10,000 x 2 lb
5000 x 1 kg |
10,000 x 2 lb
5000 x 1 kg |
| Dimension (in) |
36 x 36 x 3.1 |
48 x 48 x 3.1 |
60 x 60 x 3.1 |
48 x 48 x 3.1 |
60 x 60 x 3.1 |
| Dimension (cm) |
91 x 91 x 7.9 |
122 x 122 x 7.9 |
152 x 152 x 7.9 |
122 x 122 x 7.9 |
152 x 152 x 7.9 |
| Legal for Trade |
Scale NTEP COC #02-070 |
| Indicator NTEP at 5,000d, Class III, CC #11-119 |
| Indicator |
SBI-521 LED Indicator |
| Construction |
Scale: Mild steel - J-Box: Stainless steel - Finish: Powder coat paint |
| Indicator Heavy duty stainless steel |
| Rated |
IP65 |
| Load Cell |
Material: Alloy tool steel potted - Rated Output: 3mv/V - Output Resistance: 350 ohm |
| Display |
17 mm / 0.7" LED display |
| Power |
6 volt 4 AH rechargeable internal lead acid battery with 110/220 AC internal transformer |
| Excitation Voltage |
±5 VDC, 8 x 350 ohm load cells |
| Serial Port |
1. Full-duplex RS-232 - 2. Full-duplex RS-232 or half-duplex RS-485 |
| Digital Calibration |
Front panel calibration and configuration |
| Keyboard |
Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off |
| Functions |
Motion, Zero, Net, Gross, Tare, Total, lb, kg, %, pcs, oz, Peak/Hold, HI, OK, LO, AC/CHG |
| Units |
kg, lb, lb:oz, PCS, % |
| Stand |
Stainless steel swivel stand included |
| Display: |
Up to 50,000 graduations |
| Shipping Weight |
185 lb |
275 lb |
470 lb |
280 lb |
475 lb |
|
|
|
|
|
|
|
