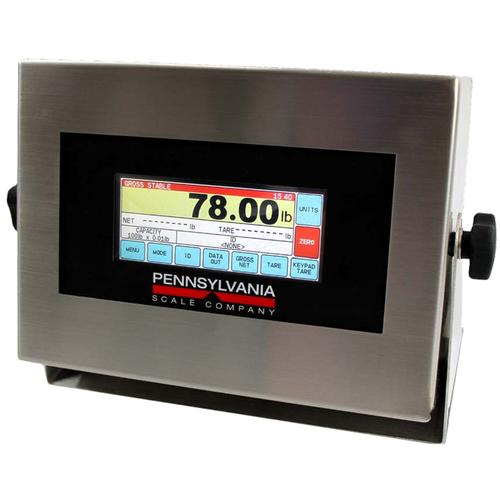

Pennsylvania Scale 7800MAX Series IP69K Washdown Touchscreen Weighing & Counting Indicator

Available with ethernet IP, the 7800 MAX Indicator is a powerful communicator that provides critical insights into your operations. It’s easy to set up, can duplicate existing configurations without reprogramming, and features onboard diagnostics for fast problem resolution. The 7800 MAX Series is also built for tough environments—its heavy-duty, industrial design delivers years of reliability and trouble-free performance.

THE INTUITIVE SOLUTION TO INCREASING PRODUCTIVITY AND PRECISION.
Unlock a new level of weight and process data-management efficiency and precision with the 7800 Touchscreen Indicator with ethernet IP. It’s the ultimate solution to streamline your tasks, enhance your workflow and increase your bottom line.
The Windows-type operating display features a unique multi-mode for weighing, counter check-weighing or process control. The screen displays only the data and input buttons of the function being used, so there’s no confusing onscreen clutter or data. Paired with the responsive, user-friendly QWERTY keyboard and operational prompts, weighing and counting have never been easier or more efficient.

EIP ADVANTAGE
Say goodbye to PC connections and complex third-party software configurations.
With the 7800 MAX Indicator, you can effortlessly perform all setup through the indicator or scale HMI. Because you can read or write scale data without the constraints of fixed setups, data in and out can be mapped to any register. That makes the 7800 MAX Series the ideal replacement for existing indicators—duplicate the setup seamlessly without the need to reprogram or adjust PLC or control device settings.

TOUCH SCREEN
Its high-impact glass, 800x320-dot resolution, and 4.6 inch full-color LCD display with resistive touch panel provide superior display quality and a super-wide viewing angle—all in an extremely rugged design.

• Second base input
• Battery AC operation, built-in re-chargeable system, 30+ hours of operation
• Printers for label, barcode label or receipt printing
• Barcode scanner
• Upgraded Internal Product DB, 1500 and 3000 entries
• External power input 12 or 24 VDC. Specify at time of order. Requires external power supply of 12 or 24 VDC
• 220/230 VAC operation
• 1 alarm buzzer mounted inside scale or indicator
• Setpoint/relays DC or AC
• Alarm stack lights and buzzer
• Communications: Ethernet IP, Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth®
• Analog output, 4-20ma or 0-10vdc
• Custom label design and setup
• Custom engineering for unique applications

• Power AC line voltages 115VAC, 50/60HZ
• Power consumption 0.25A at 115VAC
• Circuit protection RFI, EMI, ESD protection ADC shielded
• Display: 800X 320 dot resolution and 4.6" full-color LCD display
• Indications for Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
• Operating temperature 14°F to 104°F, -10°C to 40°C
• Internal resolution 1/8,000,000
• Displayed resolution, standard 1/10,000, up to 1/50,000
• 5 VDC excitation to power up to 12, 350-ohm load cells
• Dimensions: 8"H X 11"W X 3"D
• Four-Year Limited Warranty
• Ntep Approved Legal for Trade
• 304 Stainless Steel Enclosure with IP69K washdown protection.
