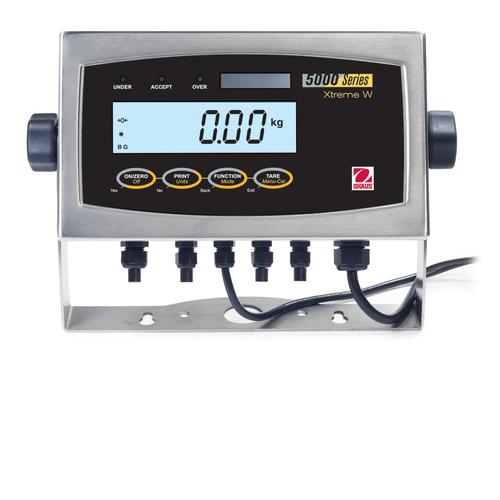

Ohaus T51XW Indicator With Stainless Steel Housing, 1 tp 999,950kg/Ib |
|
| Ideal for bench and floor scale use, the T51XW has a NEMA4X/IP66 water resistant stainless steel housing, a large, bright backlit display, raised tactile keys, optional battery-powered use, and is easy set-up and use. The T51XW is your solution to wet weighing applications that require multiple functions, rugged construction, comprehensive yet intuitive software and multiple connectivity options. more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
Ideal for bench and floor scale use, the T51XW has a NEMA4X/IP66 water resistant stainless steel housing, a large, bright backlit display, raised tactile keys, optional battery-powered use, and is easy set-up and use. The T51XW is your solution to wet weighing applications that require multiple functions, rugged construction, comprehensive yet intuitive software and multiple connectivity options.
Features:
- NEMA 4X/IP66 water
resistant stainless steel
housing with integral
faceplace supports for easy
servicing
- 30,000d maximum
displayed weighing
resolution with temporary
display of 10x readability
in weighing mode using quick
key press
- Quick display of results
using large LCD with
high-contrast white
backlight
- Easy to operate with
4-key membrane keypad with
raised tactile keys
- Weighs in one or more
units: kg, g, lb, oz, lb:oz
(decimal), tonnes and
user-definable custom unit
- Multiple weighing modes
including Counting, Percent
Weighing, Dynamic/Animal
Weighing, Checkweighing, and
Display Hold
- Internal universal
switching power supply with
hardwired line cord
Optional NiMH internal
rechargeable power pack
available
- Includes RS232 interface
with GMP/GLP data output
including date and time
- Optional interfaces
include DC relay control
kit, AC relay control kit,
2nd RS232 and RS485/422
Weight:
8.80 lb
|
|
Other Ohaus 5000 Series Indicators
|
Specifications
| Model |
T51P |
T51XW |
| Display resolution |
1:30,000d |
| Counting resolution (without Auto-add) |
1:300,000d |
| Minimum APW (without Auto-add) (lb/g) |
0.1d |
| Weighing units |
kg, lb, g, oz, lb:oz, tonnes, custom |
| Weighing modes |
Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold |
| Housing |
ABS plastic with internal reinforcing ribs |
304 stainless steel enclosure |
| Display |
6-digit, 7-segment LCD, 25mm /1 inch high digits, with high-contrast white LED backlight |
| Keyboard |
4 function membrance switches, raised tactile keys |
| Ingress Protection |
- |
NEMA 4X/ IP66 |
| Load Cell Excitation (V dc) |
5V DC |
| Load Cell Drive |
Up to 8 x 350 ohm Load Cells |
| Load Cell input sensitivity |
Up to 3 mV/V |
| Stabilization time (seconds) |
Within 2 seconds |
| Auto Zero Tracking |
Off, 0.5, 1 or 3d |
| Zeroing range |
2% or 100% of capacity |
| Span Calibration |
1 kg / lb to 100% of capacity |
| Interface |
Built-in RS232 and External Tare Input included / Optional 2nd RS232, RS422/485, AC Relay or DC Relay available |
| Dimensions WxHxD (in/cm) |
10.2 x 2.7 x 8.8 in / 260 x 71 x 224 mm |
10.3 x 3 x 8.7 in / 262 x 76 x 212 mm |
| Net Wt. (lb/kg) |
3.3 lb / 1.5 kg |
7.7 lb / 3.5 kg |
| Shipping Wt. (lb/kg) |
5.0 lb / 2.3 kg |
9.5 lb / 4.3 kg |
| Shipping dimensions (WxDxH) (in/cm) |
13 x 9.5 x 7 in / 330 x 240 x 180 mm |
13 x 9.5 x 7 in / 330 x 240 x 180 mm |
| Operating Temperature Range |
14°F to 104°F
-10°C to 40°C |
| Operating Humidity Range |
Maximum 80% up to 88°F/31°C, decreasing linearly to 50% at 104°F/40°C |
| Powered By |
100-240 VAC/ 50-60 Hz Internal universal power supply, line cord / 6 C cell batteries (not supplied) with 80 hour life/ Opt. int. rechargeable NiMH battery (10-hr. typical operation) |
100-240 VAC/ 50-60 Hz Internal universal power supply, hardwire cord / Opt. int. rechargeable NiMH battery (10-hr. typical operation |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus SW12W TAL Win Wedge Software (80850080)
TAL Software Win Wedge V1.2 for Ohaus balances
|
|
more info
|
Ohaus SF40A Portable Dot-Matrix Impact Printer
OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
- Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
- Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
- Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
|
|
more info
|
Ohaus 80500552 RS232 Cable, PC 9 Pin To Defender 5000 & 7000 with T71XW, T51XW
Ohaus 80500552 RS232 Cable, PC 9 Pin To Defender 5000 & 7000 with T71XW, T51XW
|
|
more info
|
Ohaus 80252574 RS232 Cable and Adapter, 80252042 Printer to Defender 5000 & 7000 with T71XW, T51XW
Ohaus 80252574 RS232 Cable and Adapter, 80252042 Printer to Defender 5000 & 7000 with T71XW, T51XW
RS232 Cable & Adapter (used with 80252042 Printer) for CW11, CKW55, T31XW, T51XW and T71XW
|
|
more info
|

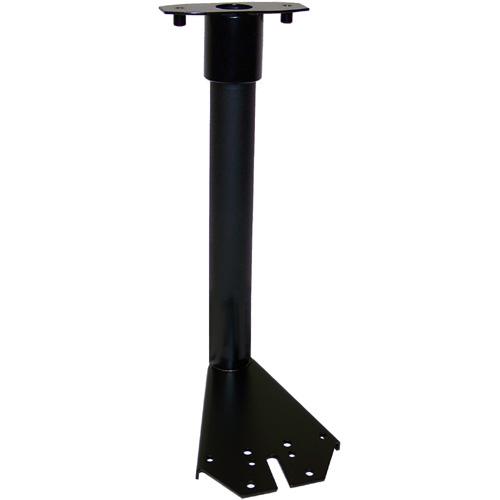

Ohaus 80500724 Column Mount Kit for T71P and T71WX Indicators to Champ and Defender Bases, 26.75 in/ 68 cm High Painted Steel
