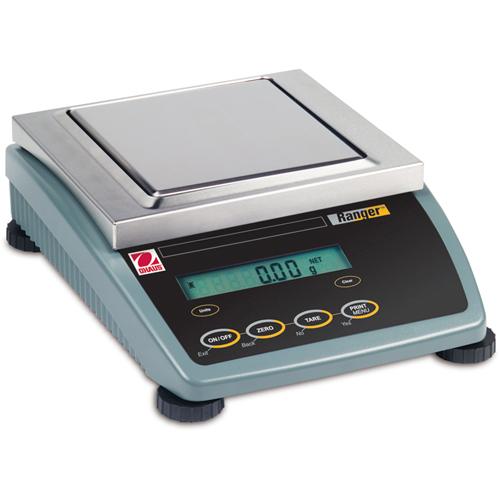

Ohaus RD3RM/2 with 2nd RS232 Ranger High Resolution Bench Scale Legal for Trade, 3000 g x 0.01 g |
|
| Four digital industrial scales to choose from in capacities from 3 to 60 kilograms with maximum 0.01 g precision. RS-232 standard. Weighs in both pounds and kilograms more ... |
|
Scales >
Industrial Scales >
High Resolution Bench Scales
|
|
|
|
|
|
Features
Compact High-Resolution Industrial Bench Scales
The OHAUS RangerTM line of high-resolution compact bench scales has been upgraded and expanded with
new software and models for even better performance in demanding industrial applications. The Ranger
High-Resolution line now combines a MFR loadcell with an enhanced microprocessor and updated filtering
software for improved performance in the lab, on the production line, or in the field.
| Model |
RD3RM |
RD6RM |
RD15LM |
RD35LM |
 |
 |
 |
|
| Default Capacity x Readability |
6.61388 x 0.00002 lb
105.8228 x 0.0002 oz
3 x 0.00001 kg
3000 x 0.01 g
|
13.22770 x 0.00005 lb
211.6440 x 0.0005 oz
6 x 0.00002 kg
6000 x 0.02 g |
33.0694 x 0.0001 lb
529.110 x 0.002 oz
15 x 0.00005 kg
15,000 x 0.05 g |
77.1620 x 0.0002 lb
1234.592 x 0.002 oz
35 x 0.0001 kg
35,000 x 0.1 g |
| Capacity x Readability NTEP Certified |
6 x 0.0002 lb
3 x 0.0001 kg |
12 x 0.0005 lb
6 x 0.0002 kg |
30 x 0.001 lb
15 x 0.0005 kg |
60 x 0.002 lb
30 x 0.001 kg |
|
 |
|
|
|
| Scale with NiMH Internal Battery |
RD3RM/1 |
RD6RM/1 |
RD15LM/1 |
RD35LM/1 |
|
|
|
|
|
| Scale with Second RS232 |
RD3RM/2 |
RD6RM/2 |
RD15LM/2 |
RD35LM/2 |
|
|
|
|
|
| Scale with NiMH Battery and 2nd RS232 |
RD3RM/3 |
RD6RM/3 |
RD15LM/3 |
RD35LM/3 |
|
|
|
|
|
| Platform Size (W x D) |
6.5 x 6.5 in / 165 x 165 cm |
7.9 x 9.5 in / 200 x 240 cm |
9.5 x 13.8 in / 240 x 350 cm |
| Safe Overload Capacity |
150% of capacity |
| Construction |
Stainless steel weighing pan / Painted cast-aluminum housing |
| Protection |
IP43 |
| Weighing Units / Modes |
lb, oz, g, kg / Weighing, Dynamic Weighing, Gross / Net / Tare |
| Display |
0.63 inch / 16 mm digit height, backlit LCD |
| Keyboard |
Six button membrane switch |
| Stabilization Time |
< 2 seconds |
| Auto Zero Tracking |
0.5, 1, 2, 5, 10d, OFF |
| Power |
Internal AC adapter, rechargeable NiHM battery optional |
| Calibration |
External span, 20 - 100% |
| Operating Temperature |
50° F to 86° F / 10° C to 30° C |
| Net (Shipping) Weight |
12 lb / 5.1 kg (15 lb / 6.7 kg) |
24 lb / 10.6 kg (29 lb / 12.8 kg) |
| Scale Dimensions(W x D x H) |
10.5 x 13.2 x 4 in / 26.5 x 33.5 x 10 cm |
14.2 x 14.6 x 4.5 in / 36 x 37 x 11.5 cm |
| Shipping Dimensions (W x D x H) |
16.5 x 19 x 10 in / 42 x 48 x 25 cm |
20 x 20.5 x 10.5 in / 52 x 53 x 27 cm |
Ultra-Precise, Fast Industrial Bench Scales in Rugged Cast Aluminum Housings
Every Ranger features a large, backlit LCD display with fast display of weighing results within 2 seconds, as
well as a RS232 port for quick connectivity to printers and systems. For use in applications requiring
additional filtering, the Ranger series now includes dynamic weighing software allowing weigh determination
where vibration is an issue.
Every Ranger is designed with OHAUS’ easy-to-use software interface, making operation intuitive with a
consistent feel across all four Ranger lines: Ranger, Ranger High Resolution, Ranger Count and Ranger Count
Plus. No matter the industrial need, there is a Ranger for that application!
Standard Features Include:
- High performance MFR loadcells for added precision, encased in a tough painted cast aluminum housing
- Wide range of platforms and capacities from 6lb to 70lb
- Weigh in lb, oz, kg or g units
- Large, backlit LCD display
- Dynamic weighing software included
- RS232 interface included, optional second RS232 available
- 1:300,000 default resolution, NTEP 1:30,000 legal-for-trade resolution
- Built-in AC with hardwired plug, factory-installed NiMH battery optional
|
Weight:
15.00 lb
|
2 Year Manufacture Warranty
|
