Features

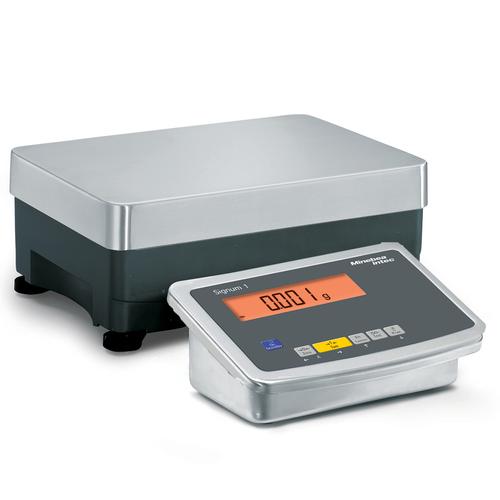

Minebea SIWRDCP-V9 is a compact industrial scale in which a standard strain gauge weigh cell is used. Speed-up technology makes the Signum uniquely fast, which means Signum bench scales can weigh in half a second.
Minebea preconfigured Signum offers exceptional performance features and is a very easy-to-operate bench scale. The SIWRDCP-V9 is extremely rugged and resistant, and perfectly adapts to any ambient conditions in an industrial environment. With Signum, anything is possible: pick and choose your level of applications and different resolutions, and enjoy the benefits of a wide variety of interfaces and options for IP65 protection, use in harsh areas and for many more features. Sartorius Signum is a compact scale built exactly the way you want it – without compromises.
Model |
SIWRDCP-V6 |
SIWRDCP-V7 |
SIWRDCP-V8 |
SIWRDCP-V9 |
SIWRDCP-V10 |
SIWRDCP-V11 |
SIWRDCP-V12 |
SIWRDCP-V13 |
SIWRDCP-V14 |
SIWRDCP-V15 |
Capacity |
3 kg |
6 kg |
15 kg |
35 kg |
60 kg |
6 kg |
6 kg |
15 kg |
35 kg |
60 kg |
Readability |
0.1 g |
0.2 g |
0.5 g |
1.0 g |
2.0 g |
0.2 g |
1.0 g |
0.5 g |
1.0 g |
2.0 g |
Repeatability |
0.2 g |
1 g |
2 g |
0.2 g |
1 g |
2 g |
Linearity |
0.3 g |
0.4 g |
0.8 g |
1.5 g |
3 g |
0.4 g |
0.8 g |
1.5 g |
3 g |
Weighing Modes |
Carats,Grains,Milligrams,Pounds,Ounces,Pennyweight,Grams,Troy Ounces,KiloGrams |
Weigh Cell |
Strain Gauge |
Standard Features |
Basic Weighing, RS232 interface, Underhook |
Indicator/Platform Material |
Die-Cast Aluminum - (AISI304)
(Stands up to most citrus applications) |
Indicator Cable Length |
3 meters (coiled in units base) |
Operating Temperature |
-10°C to 40°C (14°F to 104°F) |
External Calibration |
Requires 2,000 g Cal. Weight |
Requires 5,000 g Cal. Weight |
Requires 10,000 g Cal. Weight |
Requires 20,000 g Cal. Weight |
Requires 5,000 g Cal. Weight |
Display Type |
Backlit Liquid Crystal Display with 14 Segments |
Power |
AC Powered Only |
Platform Size |
12.6" x 9.4" |
Dimensions (W x D) |
16.4" x 5.2" |
Protection Rating |
IP65 |
Functions |
Zero, Tare |
Zero, Tare, Counting, Checkweighing, Classification, Averaging(animal weighing), Totalizing, Neutral Measurement, % Weighing, Formulation |
Level |
Weigh Only Level 1 |
Applications Level 2 |
Application Levels and Their Capabilities
Level Capabilities |
Level 1 |
Level 2 |
Level 3 |

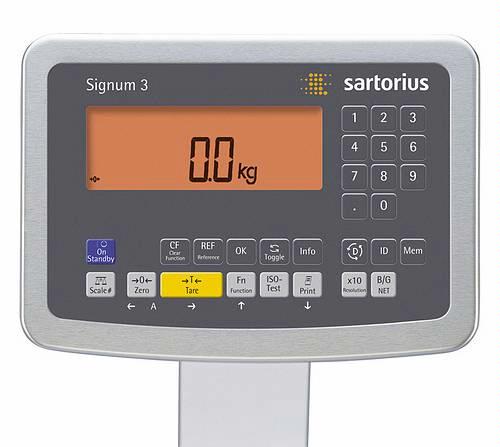

Keypad |
6 Keys |
14 Keys |
17 Keys |
Display |
14 Segments |
14 segments plus application symbols |
14 segments plus application symbols |
Weighing |
Yes |
Yes |
Yes |
Averaging |
N/A |
Yes |
Yes |
Reference Scale Connection |
N/A |
Yes |
Yes |
Counting |
N/A |
Yes |
Yes |
Totalizing |
N/A |
Yes |
Yes |
Checkweighing |
N/A |
Yes |
Yes |
Product Data Memory |
N/A |
N/A |
Yes |
Date/Time |
N/A |
Option A31 |
Option A31 |
SQ min (min sample qty) |
Yes |
Yes |
Yes |
ID Codes (4x40 characters) |
N/A |
N/A |
Yes |
Weight:
30.00 lb
|
|
