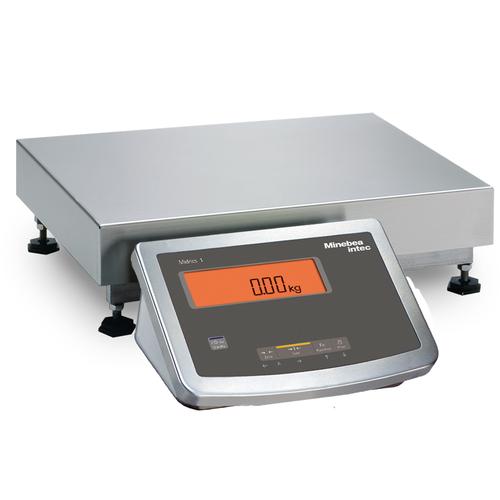

Minebea MW1S1U-150FE-L Midrics Bench Stainless Steel 19.5 x 15.75 Scale 300 x 0.02 lb |
|
| 2 Indicators types to choose from, 7 weighing ranges from 3 kg to 300kg, 5 platform dimensions, Resolution 15.000 digits, Unit comes wired, calibrated and ready to weigh! more ... |
|
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
|
|
Optional Warranty
|
Features
Midrics Complete Scales Stainless Steel Version
Features
- 2 Indicators types to choose from
- 7 weighing ranges from 3 kg to 300kg
- 5 platform dimensions
- Resolution 15.000 digits
- Unit comes wired, calibrated and ready to weigh!
Specifications
| Maximum readability: |
15.000d |
| Accuracy class: |
Klasse III |
| Number of verification scale intervals: |
3.000e, 2 x 3.000e |
| Data interface: |
optional |
| Power supply: |
100-240 V/AC |
| DC power supply: |
optional, 24V/DC |
| AC power supply: |
optional, 24V/AC |
| Temperature range: |
-10°C ... +40°C |
| Electrical safety: |
EN61010-1, EN60950
IEC1010-1, IEC950 |
| Display- and Control unit: |
remoted, optional with column for connecting to platform |
| Version: |
All in Stainless steel 1.4301 (V2A) |
| Ingress Protection Rate: |
Display- and Control unit IP65
Platform IP 67 (load cell IP 68) |
| Weighing system: |
Design1 and design2 : Stainless steel Single Point load cell C 3
Design3 : 4 load cells C3 |
| Load plate: |
Stainless steel 1.4301 AISI 304 |
| Others: |
4 adjustable leveling feet
Built-in level indicator
Overload stop |
| Battery operation: |
Optional via internal or external rechargeable battery pack |
| Limitation of emissions: |
EN61326 Kl. B, (IEC61326) |
| Defined immunity to interference: |
EN61326 Ind. (IEC61326) |
Dimensions
X:
19.50
Y:
15.75
|
|
Other Minebea Intec Midrics Stainless Steel Bench Scales - MW1 - Level 1
Minebea MW1S1U-60ED-L
Midrics Complete Bench 15.75 x 11.8 Stainless Steel Scales 120 x 0.01 lb
$2,060.10
|
Minebea MW1S1U-30ED-L
Midrics Complete Bench 15.75 x 11.8 Stainless Steel Scales
60 x 0.005 lb
$2,099.70
|
Minebea MW1S1U-15DC-L
Midrics Complete Bench 12.5 x 9.5
Stainless Steel Scales 30 x 0.002 lb
$2,105.10
|
Minebea MW1S1U-3DC-L
Midrics Complete Bench 12.5 x 9.5
Stainless Steel Scales 6 x 0.0005 lb
$2,122.20
|
Minebea MW1S1U-6DC-L
Midrics Complete Bench 12.5 x 9.5 Stainless Steel Scales 15 x 0.001 lb
$2,122.20
|
Minebea MW1S1U-60FE-L
Midrics Complete Bench 19.5 x 15.75 Stainless Steel Scales 120 x 0.01 lb
$2,456.10
|
Minebea MW1S1U-30FE-L
Midrics Complete Bench 19.5 x 15.75 Stainless Steel Scales 60 x 0.005 lb
$2,456.10
|
Minebea Midrics MW1S1U3DC
Complete Bench Scales Stainless Steel
Non-Verifiable 12.5 x 9.5
6 x 0.0005 lb
$1,377.00
|
Minebea Midrics MW1S1U15DC
Complete Bench Scales Stainless Steel
Non-Verifiable 12.5 x 9.5
30 x 0.002
$1,377.00
|
Minebea Midrics MW1S1U6DC
Complete Bench Scales Stainless Steel
Non-Verifiable 12.5 x 9.5
15 x 0.001
$1,377.00
|
Minebea Midrics MW1S1U30ED
Complete Bench Scales Stainless Steel
Non-Verifiable 15.75 x 11.8
60 x 0.005
$1,633.50
|
Minebea Midrics MW1S1U60ED
Complete Bench Scales Stainless Steel
Non-Verifiable 15.75 x 11.8
120 x 0.01
$1,633.50
|
Minebea Midrics MW1S1U30FE
Complete Bench Scales Stainless Steel
Non-Verifiable 19.5 x 15.75
60 x 0.005
$1,804.50
|
Minebea Midrics MW1S1U15FE
Complete Bench Scales Stainless Steel
Non-Verifiable 19.5 x 15.75
300 x 0.02
$1,804.50
|
Minebea MW1S1U-150FE-L
Midrics Bench Stainless Steel 19.5 x 15.75 Scale 300 x 0.02 lb
$2,467.80
You are viewing this product
|
|
Specifications
Models with
Painted Steel |
MW1P1U-3DC-L |
MW1P1U-6DC-L |
MW1P1U-15DC-L |
MW1P1U-30ED-L |
MW1P1U-60ED-L |
MW1P1U-30FE-L |
MW1P1U-60FE-L |
MW1P1U-150FE-L |
Models with
Stainless Steel |
MW1S1U-3DC-L |
MW1S1U-6DC-L |
MW1S1U-15DC-L |
MW1S1U-30ED-L |
MW1S1U-60ED-L |
MW1S1U-30FE-L |
MW1S1U-60FE-L |
MW1S1U-150FE-L |
| Capacity x Readability |
6 x 0.0005 lb
3 x 0.0002 kg |
15 x 0.001 lb
6 x 0.0005 kg |
30 x 0.002 lb
15 x 0.001 kg |
60 x 0.005 lb
30 x 0.002 kg |
120 x 0.01 lb
60 x 0.005 kg |
60 x 0.005 lb
30 x 0.002 kg |
120 x 0.01 lb
60 x 0.005 kg |
300 x 0.02 lb
150 x 0.01 kg |
| Pan Size |
12.6 in x 9.4 in |
15.7 in x 11.8 in |
19.7 in x 15.7 in |
| Platform (mm) |
320 x 240 x 85-100 |
400 x 300 x 96-111 |
500 x 400 x 110-125 |
| Legal for Trade |
YES |
| Protection rating |
IP65 |
| Adjustable Leveling Feets |
YES |
| Temperature range |
-10°C ... +40°C |
| Display |
20 mm LCD with backlit |
| Battery operation |
Optional via internal or external rechargeable battery pack |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
Minebea YBP03CIS 4-leg Base For Column
Dimensions of the floor plate (LxW) 220mm x 135mm
Equipment supplied: floor –mounted column incl. fasteners (3 M4x 8 screws, screws with thread designed for wood acc. to DIN571-?6x50-A2, 4 dowels ? 8x40)
Base for installing floor-mounted column or bench stand
You can attach the base (YBP03CIS), if needed, to the bottom of the column.
At each end of the base, hook the ends of the two feet together; use the 4 Allen screws to attach the base to the column.
The illustration shows a view of the column and base from the bottom.
|
|
more info
|
Minebea YPP01CWS Printer stand for YDH03CISUS column
Minebea YPP01CWSUS Data Printer
Features
The following can be computed/printed out using this Sartorius data printer:
- Number of weighing operations
- Mean value
- Standard deviation
- Variation coefficient
- Minimum value/weight
- Maximum value/weight
- Difference between the maximum and minimum value/weight
Data are transferred either automatically or manually by pressing a key.
Built-in real-time clock
Built-in statistics program. These programs can be individually selected to meet your needs.
Counter for consecutive numbering of transactions can be activated.
High contrast LCD that shows the date or time as well as the current transaction number.
Integrated rechargeable batteries with battery level indicator.
Ultrafast print head.
Runs on the balances power, no separate power supply necessary.
Easy to change paper roll and ink ribbon cassette.
|
|
more info
|
Minebea YDH03CISUS 43in Floor Mounted Column
43in Floor Mounted Column
|
|
more info
|
Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
13" Column for attaching indicator to platform for sizes 12.6" x 9.4".
|
|
more info
|
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
19.7" Column for attaching indicator to platform for sizes 15.7" x 11.8" and 19.7" x 15.7".
|
|
more info
|
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
29.5" Column for attaching indicator to platform for sizes 19.7" x 15.7".
|
|
more info
|
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
Stainless steel holder for bench top fixing, only for platform sizes 9.4" (DC), 15.7" x 11.8" (ED) and 19.7" x 15.7" (FE).
|
|
more info
|
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
Brackets for wall mounting, stainless steel, tiltable indicator.
|
|
|
|
|
|
|
|
|
