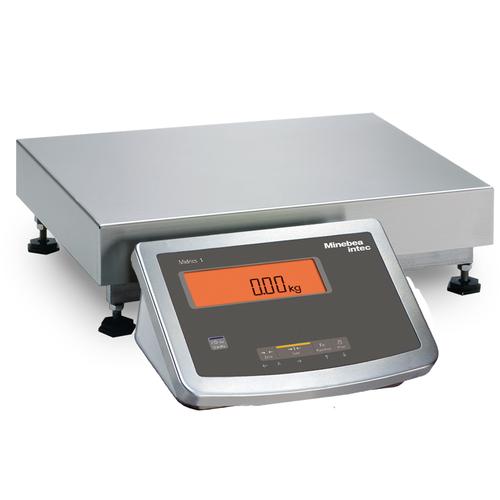

Minebea MW1P1U-60ED-L Midrics Industrial Scale With Galvanized/Painted frame 120 x 0.01 lb |
|
| There are hundreds of possible applications for an industrial scale, and not everyone needs a standard "off-the-rack" solution. Whatever, wherever, and however the Midrics® industrial scale can do it all more ... |
|
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
|
|
Features
”Power on, weigh; job finished.“ An industrial scale has to be that simple to operate, and at the same time totally reliable and easy to clean. A lot of manufactures can offer one feature or another, but the new Midrics from Sartorius has it all – and offers it all in a complete range of platform sizes, resolutions and weighing capacities. The Midrics series has the right scale for every application, from
incoming inspection and shipping to production, warehouse management and packaging.
There are hundreds of possible applications for an industrial scale, and not everyone needs a standard "off-the-rack" solution. Whatever, wherever, and however the Midrics® industrial scale can do it all: From 0.2 g to 3 t, verified or non-verified, with or without EX protection, Zone 2 and 22.
Painted versions have an IP65 protection rating for industrial use
Stainless steel versions have IP67|IP68 protection ratings and are therefore suited for industrial use in wet environments (stainless steel 1.4301/AISI 304)
Rugged construction
4 x adjustable feet, level indicator on LCE and NCE
Class III resolution for legal metrology (1 x 3000 e, 2 x 3000 e) or standard resolution (15000 d)
2 display and indicator units
10 weighing ranges from 3 kg to 3 t
13 platform dimensions
Dimensions
X:
12.60
Y:
3.40
Z:
9.50
|
|
Other Minebea Intec Midrics Painted Steel Bench Scales - MW1 - Level 1
Minebea MW1P1U-6DC-LU Midrics Industrial Scale With Galvanized/Painted frame 12.5 x 9.5
10lb x 0.002lb
$1,505.70
|
Minebea MW1P1U3DCLU Midrics Industrial Scale With Galvanized/Painted frame 12.5 x 9.5
5lb x 0.001lb
$1,505.70
|
Minebea MW1P1U15DCL
Midrics Industrial Scale With Galvanized/Painted frame 12.5 x 9.5
25lb x 0.005lb
$1,505.70
|
Minebea MW1P1U-6DC-L
Midrics Industrial Scale With Galvanized/Painted frame 15 x 0.001 lb
$1,505.70
|
Minebea MW1P1U-3DC-L Midrics Industrial Scale With Galvanized/Painted frame 6 x 0.0005 lb
$1,505.70
|
Minebea MW1P1U-15DC-L
Midrics Industrial Scale With Galvanized/Painted frame 30 x 0.002 lb
$1,505.70
|
Minebea MW1P1U30EDL
Midrics Industrial Scale With Galvanized/Painted frame 15.75 x 11.8
50lb x 0.01lb
$1,646.10
|
Minebea MW1P1U-60ED-L
Midrics Industrial Scale With Galvanized/Painted frame 120 x 0.01 lb
$1,646.10
You are viewing this product
|
Minebea MW1P1U-30ED-L
Midrics Industrial Scale With Galvanized/Painted frame 60 x 0.005 lb
$1,646.10
|
Minebea MW1P1U60EDL
Midrics Industrial Scale With Galvanized/Painted frame 15.75 x 11.8
100lb x 0.02lb
$1,646.10
|
Minebea MW1P1U60FEL
U Midrics Complete Bench Scales Painted Scales 19.5 x 15.75
100lb x 0.02lb
$1,872.90
|
Minebea MW1P1U150FELU Midrics Complete Bench Scales Painted Scales 19.5 x 15.75
250lb x 0.05lb
$1,872.90
|
Minebea MW1P1U-30FE-L
Midrics Industrial Scale 19.5 x 15.75 With Galvanized/Painted frame 60 x 0.005 lb
$1,872.90
|
Minebea MW1P1U-150FE-L
Midrics Industrial Scale With Galvanized/Painted frame 300 x 0.02 lb
$1,872.90
|
Minebea MW1P1U-60FE-L
Midrics Industrial Scale With Galvanized/Painted frame 120 x 0.01 lb
$1,872.90
|
|
Specifications
Models with
Painted Steel |
MW1P1U-3DC-L |
MW1P1U-6DC-L |
MW1P1U-15DC-L |
MW1P1U-30ED-L |
MW1P1U-60ED-L |
MW1P1U-30FE-L |
MW1P1U-60FE-L |
MW1P1U-150FE-L |
Models with
Stainless Steel |
MW1S1U-3DC-L |
MW1S1U-6DC-L |
MW1S1U-15DC-L |
MW1S1U-30ED-L |
MW1S1U-60ED-L |
MW1S1U-30FE-L |
MW1S1U-60FE-L |
MW1S1U-150FE-L |
| Capacity x Readability |
6 x 0.0005 lb
3 x 0.0002 kg |
15 x 0.001 lb
6 x 0.0005 kg |
30 x 0.002 lb
15 x 0.001 kg |
60 x 0.005 lb
30 x 0.002 kg |
120 x 0.01 lb
60 x 0.005 kg |
60 x 0.005 lb
30 x 0.002 kg |
120 x 0.01 lb
60 x 0.005 kg |
300 x 0.02 lb
150 x 0.01 kg |
| Pan Size |
12.6 in x 9.4 in |
15.7 in x 11.8 in |
19.7 in x 15.7 in |
| Platform (mm) |
320 x 240 x 85-100 |
400 x 300 x 96-111 |
500 x 400 x 110-125 |
| Legal for Trade |
YES |
| Protection rating |
IP65 |
| Adjustable Leveling Feets |
YES |
| Temperature range |
-10°C ... +40°C |
| Display |
20 mm LCD with backlit |
| Battery operation |
Optional via internal or external rechargeable battery pack |
|
|
|
|
