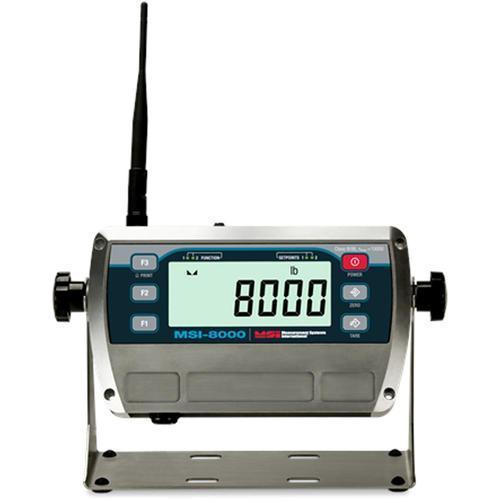

MSI 159379 8000HD RF Meter/2 A/D Inputs/18-72 VDC |
|
The MSI-8000HD is the heavy-duty version of the reputable MSI-8000 RF handheld remote display. The milled anodized aluminum, IP68-rated enclosure is mountable in either a direct panel mount or optional tilt stand MSI 159379 8000HD RF Meter/2 A/D Inputs/18-72 VDC more ... |
Industrial Scales >
Crane Scales & Dynamometers >
Accessories
|
|
|
|
Features
Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavyduty version of the reputable handheld MSI-8000 RF Remote Display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine, and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.
Fully ergonomic with user-definable function keys and a bold six-digit one inch display ease usability and readability. Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD-1 and MSI-8000HD-2 may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD.
Wi-Fi, Ethernet, or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting
- IP68 Rugged Milled Aluminum enclosure
- Membrane Keypad for User Control Functionality
- User Definable Function Keys for added versatility
- Indicator or RF remote display with six-digit 1.0 in (26.4 mm) LCD screen
- IP68 milled aluminum enclosure
- Membrane keypad for remote-control functionality
- User definable function keys for added versatility
- Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
- Swivel tilt stand
Dimensions X:
28.70
Y:
9.00
Z:
14.00
Weight:
5.00 lb
|
|
Other MSI 8000HD ScaleCore RF / Remote Display/ Meter

176968 8000HD Wi-Fi Meter/18-72 VDC
$1,168.00
|

159377 8000HD ScaleCore RF/Remote Display/18-72 VDC
$1,216.00
|

176964 8000HD Wi-Fi Meter/7-36 VDC
$1,216.00
|

153591 MSI-8000HD RF 85-265 VAC Remote Display
$1,232.80
|

176966 8000HD Wi-Fi Meter/9-36 VDC
$1,248.00
|

176958 8000HD Wi-Fi Meter/85/265 VAC
$1,260.00
|

154853 8000HD ScaleCore RF/Remote Display/Internal Battery
$1,336.00
|

176960 8000HD Wi-Fi Meter/Internal Battery
$1,368.00
|

160476 8000HD ScaleCore RF/Remote Display/7-36 VDC
$1,485.00
|

158427 8000HD Meter/2 A/D Inputs/85-265 VAC (non RF)
$1,500.00
|

158425 8000HD RF Meter/2 A/D Inputs/85-265 VAC
$1,516.00
|

159376 8000HD ScaleCore RF/Remote Display/9-36 VDC
$1,520.00
|

158428 8000HD Meter/2 A/D Inputs/Internal Battery (non RF)
$1,592.00
|

160478 8000HD Meter/2 A/D Inputs/7-36 VDC (non RF)
$1,670.00
|

159381 8000HD Meter/2 A/D Inputs/18-72 VDC (non RF)
$1,710.00
|

159380 8000HD Meter/2 A/D Inputs/9-36 VDC (non RF)
$1,710.00
|

160477 8000HD RF Meter/2 A/D Inputs/7-36 VDC
$1,895.00
|

159379 8000HD RF Meter/2 A/D Inputs/18-72 VDC
$1,905.00
You are viewing this product
|

159378 8000HD RF Meter/2 A/D Inputs/9-36VDC
$1,905.00
|

158426 8000HD RF Meter/2 A/D Inputs/Internal Battery
$2,065.00
|
|
Specifications
RF Meter/2 A/D Inputs
Model |
158425 |
158426 |
160477 |
159379 |
159378 |
Type |
85-265 VAC |
Internal Battery |
7-36 VDC |
18-72 VDC |
9-36 VDC |
Legal for Trade |
NTEP CC 15-110 |
Features |
Swivel tilt stand,IP68 milled aluminum enclosure |
Enclosure |
NEMA Type 4, IP68 milled anodized aluminum with O-ring gaskets |
Keypad |
On/Off, Zero (100%), Tare, Print, and two user-defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching |
Display |
Six-digit 1.0 in (26.4 mm) LCD |
Units Displayed |
Pounds, kilograms, tons, metric tons, kilonewtons |
Annunciators |
Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs. Channels: 1, 2, 3, 4, TTL |
Power |
90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC Optional battery power module available |
Operating Temperature |
-4°F to 140°F (-20°C to 60°C) |
RF Remote Channels |
Up to four remote sensors, monitored individually, in pairs or sum all (non-A/D version only) |
Service Counters |
A/D version only |
A/D Inputs |
Two independent or summing load cell inputs |
Excitation |
4.8 V current limited and over-voltage protected |
Filtering |
Off, Low, Hi-1, Hi-2 |
RF Radio Link |
2.4 GHz 802.15.4 - Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001 |
RF Effective Range |
Typically 100 or more feet (33 m) |
Data I/O |
Dual RS-232 comm ports |
Wired Ethernet |
Up to 8 configurable relay outputs |
Optional Communications |
Wi-Fi, Bluetooth®, Serial RF, Frequent Hopping Spread Spectrum Optional |
Warranty |
One-year limited warranty |
|
|
|
|
