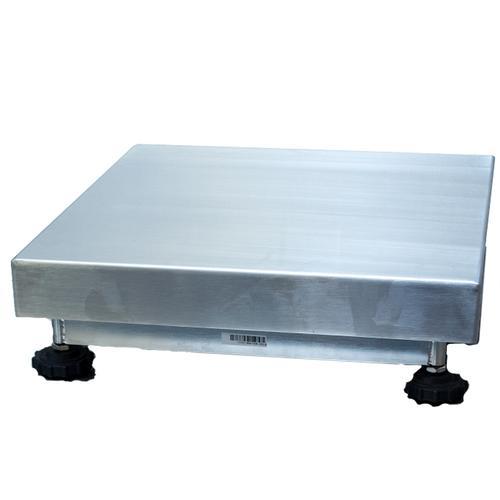

Intelligent Weighing Technology TitanB™ 200-16 Industrial Legal for Trade Bench 16 x 16 inches 200 lb (x 0.05 lb) (Base Only) |
|
| The TitanH is a stainless steel bench scale with an all stainless base and indicator. This is a great washdown scale that comes with a hermetically sealed load cell for extra peace of mind in the wettest of environments. more ... |
|
Industrial Scales >
Scale Bases No Indicator >
Bench Bases
|
|
|
|
|
|
Features
The TitanB™ base has 100 lb to 500 lb Capacity. All Stainless Steel IP66 Washdown. Legal for trade and includes a 6 ft Cable.
- NTEP Approved Class III
- All Stainless Steel Washdown
- Protected Aluminum Load Cell
- Includes Pillar & Mounting Bracket
- 6 ft Cable
- Heavy Duty
| Features |
Benefits |
| Heavy duty rugged 304 stainless steel construction |
Will withstand harsh industrial environments and cleaning |
| Low profile, compact size |
Space saving, easy to load and unload/td>
|
| Overload and shock protection mechanism |
Protects against excessive loads and shock applied to platform |
| Adjustable feet and spirit level |
Platform remains level for accurate results on uneven working surfaces – anti slip |
|
|
Other Intelligent Weighing Technology TitanB Industrial Legal for Trade Bench Bases
|
Specifications
| Model |
TitanB™ 100-16
099451044152 |
TitanB™ 200-16
099451044169 |
TitanB™ 200-24
099451042608 |
TitanB™ 500-24
820103866217 |
Capacity x Readability
No Indicator |
100 lb (x 0.02 lb) |
200 lb (x 0.05 lb) |
200 lb (x 0.05 lb) |
500 lb (x 0.1 lb) |
| Divisions |
5,000 |
5,000 |
5,000 |
5,000 |
| Construction |
All stainless steel washdown with aluminum load cell and protection system |
| Approvals |
NTEP CoC # 04-099 |
| Platform Size (W x D x H) |
16 x 16 x 5 in / 406 x 406 x 101 mm |
24 x 24 x 6 in / 610 x 610 x 152 mm |
| Shipping Size (W x D x H) |
33 x 23 x 9 in / 838 x 584 x 229 mm |
42 x 31 x 9 in / 1067 x 787 x 229 mm |
| Net Weight |
22 lb / 10 kg |
44 lb / 20 kg |
| Shipping Weight |
27 lb / 12.2 kg |
57 lb / 26 kg |
| NEMA / IP Rating |
NEMA 4X / IP 66 |
| Options |
3" Stainless Steel Wheel Kit, Various Indicators |
| Country of Origin |
China |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Intelligent Weighing Technology VBM Indicator Legal For Trade with Net/Gross - Accumulation Functions
The UWE PSCII Indicator has Up to 10,000 NTEP / 120,000 Non-NTEP Displayed Divisions and Accumulation. It is a great option both NTEP and NON-NTEP needs.
- Legal for Trade
- Can Be Fitted To Any Base
- Reads in lb, kg, g, oz
- Pushbutton Tare
- Bi-directional RS232 Interface
- Will Drive up to 4 x 350 O Load Cells
- 10,000 Divisions NTEP / 120,000 Divisions Non-NTEP
- Large 2" Backlit Display
- Rechargeable Battery
| Features |
Benefits |
| Large backlit display |
Benefits |
| Adjustable weighing speed filters |
Allows you to adjust for operational and environmental conditions |
| Automatic Zero tracking |
Ensures that you always start weighing at zero |
| Built-in rechargeable battery or external power adapter |
Portability (battery lasts approximately 150 hours) |
| Automatic power save |
Conserves battery power |
| Low battery indicator |
Alerts you to charge the battery, saving downtime |
| Bi-Directional RS-232 Interface |
Allows for easy maintaining of records |
|
|
more info
|
Intelligent Weighing Technology VFS Indicator IP67 Legal For Trade with Net/Gross - Accumulation Functions
The VFS Indicator has Up to 10,000 NTEP / 120,000 Non-NTEP Displayed Divisions and Net/Gross, Accumulatio. It is a great option both NTEP and NON-NTEP needs.
- Class III NTEP & Measurement Canada
- Compatible With Any Base
- Reads in lb, kg, g, oz
- 2” High Backlit LCD Display
- Optional Bi-Directional RS232
- Will Drive 4 x 350 O Load Cells
| Features |
Benefits |
| Large backlit display |
Can be easily read in less than ideal conditions |
| Adjustable weighing speed filters |
Allows you to adjust for operational and environmental conditions |
| Automatic Zero tracking |
Ensures that you always start weighing at zero |
| Built-in rechargeable battery or external power adapter |
Portability (battery lasts approximately 150 hours) |
| Automatic power save |
Conserves battery power |
| Low battery indicator |
Alerts you to charge the battery, saving downtime |
| RS232 Interface (Optional) |
Allows for easy maintaining of records |
|
|
more info
|
Intelligent Weighing Technology VFS-W Indicator IP67 with Net/Gross - Accumulation Functions and Optional Light Towers
The VFS-W Indicator has Up to 120,000 Displayed Divisions and Net/Gross, Checkweighing, Counting. It is a great option both Counting and Checkweighing needs.
- Compatible With Any Base
- Reads in lb, kg, g, oz
- 2" High Backlit LCD Display
- Optional Bi-Directional RS232
- Will Drive 4 x 350 O Load Cells
- Optional Light Tower
| Features |
Benefits |
| Large backlit display |
Can be easily read in less than ideal conditions |
| Adjustable weighing speed filters |
Allows you to adjust for operational and environmental conditions |
| Automatic Zero tracking |
Ensures that you always start weighing at zero |
| Built-in rechargeable battery or external power adapter |
Portability (battery lasts approximately 150 hours) |
| Automatic power save |
Conserves battery power |
| Low battery indicator |
Alerts you to charge the battery, saving downtime |
| RS232 Interface (Optional-Must be factory installed) |
Allows for easy maintaining of records |
|
|
|
|
|
|
|
|
|
