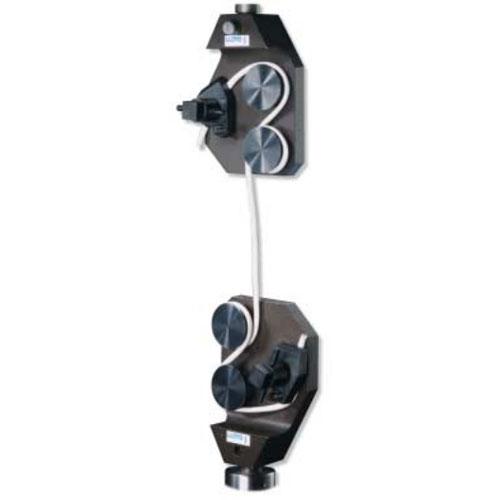

Chatillon TG23 - Wire Grip with Twin Bollards and Vice Clamp (GPS/0014/00)

Double Bollard Grip (30 kN) This grip is designed for testing wire, yarns and thread. The test specimen is secured in a clamp and wound round the two bollards. Grip stresses in the specimen are distributed uniformly around the bollard circumference. Maximum sample diameter 6 mm (0.24 in). Eye end diameter 31.7 mm (1.25 in). more ...
Test Equipment > Grips and Attachments > Wire - Rope - Yarn - Tubing
Chatillon TG23 - Wire Grip with Twin Bollards and Vice Clamp (GPS/0014/00)




Have Questions?
Call USoremail Us
Our Staff will be glad to help

Chatillon TG23 - Wire Grip with Twin Bollards and Vice Clamp (GPS/0014/00)
FREE Ground Shipping
(48 US States Only)

Price: $2,518.62


Available to Ship


View Features

Chatillon Ametek
SKU: GPS/0014/00

Features

Description

DoubleBollard grip for wire, yarns and threads. The sample is secured in a clamp and run around the two bollards. Grip stresses in the specimen are distributed uniformly around the bollard circumferences. Test method is similar to that described in BS4545:1970 (mechanical testing of steel wire)

Specification

Maximum Capacity 20 kN 4496 lbf
Minimum Load Cell 100 N 22.5 lbf
Bollard Diameter 38 mm 1.5 in
Maximum Sample Diameter 6 mm 0.24 in
Eye End Diameter 15.85 mm 0.62 in
Weight Each 1.1 Kg 2.4 lb
Length Each 135 mm 5.3 in
Temperature Limits Ambient

Applications

Tensile testing of rope, flexible wire, cord, etc by straining a sample, generally to break, and recording the relationship between force and extension to determine one or more of the following mechanical properties:

Elongation Stress
Percentage Elongation Tensile Strength
Extension Yield Strength
Percentage yield point extension Yield Stress
Percentage reduction of area Proof Stress
Maximum force Youngs Modulus

Weight: 10.00 lb
