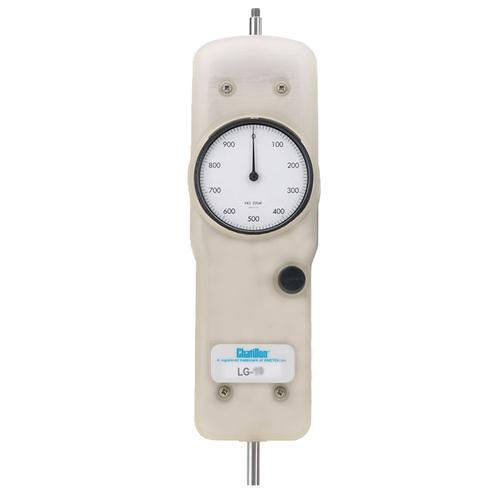

Chatillon LG-200N Mechanical Force Gauge, 200 N x 1 N
FREE 3 Day Shipping
(48 US States Only)

Price: $920.00


Available to Ship


Optional Accessories
Chatillon SPK-MT-0001 Adapter Gauge to MT150 for LG Series Force Gauge Models Chatillon SPK-MT-0001 Adapter Gauge to MT150 for LG Series Force Gauge Models , $99.00
Chatillon SPK-FMG-009A Point Adapter  100 lbf (500 N) Chatillon SPK-FMG-009A Point Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-FMG-009A Point Adapter  100 lbf (500 N) Chatillon SPK-FMG-009A Point Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N) Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N) Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-FMG-013A Extension Rod, Low Capacity  (#10-32) Chatillon SPK-FMG-013A Extension Rod, Low Capacity (#10-32) , $40.50
Chatillon SPK-FMG-013A Extension Rod, Low Capacity  (#10-32) Chatillon SPK-FMG-013A Extension Rod, Low Capacity (#10-32) , $40.50
Chatillon NC002753 LG and MSE100 Series, Carrying Case (Small) Chatillon NC002753 LG and MSE100 Series, Carrying Case (Small) , $94.05
Chatillon NC002753 LG and MSE100 Series, Carrying Case (Small) Chatillon NC002753 LG and MSE100 Series, Carrying Case (Small) , $94.05
Chatillon SPK-FMG-HANDLE Handle Assembly Chatillon SPK-FMG-HANDLE Handle Assembly , $164.35
Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N) Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N) Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-MT-0001 Adapter Gauge to MT150 for LG Series Force Gauge Models Chatillon SPK-MT-0001 Adapter Gauge to MT150 for LG Series Force Gauge Models , $99.00
Chatillon NC002582 Adapter Gauge to TT Tester Chatillon NC002582 Adapter Gauge to TT Tester , $165.60
Chatillon NC002582 Adapter Gauge to TT Tester Chatillon NC002582 Adapter Gauge to TT Tester , $165.60
Chatillon SPK-FMG-012A Hook, Stationary - 50 lbf 225 N Chatillon SPK-FMG-012A Hook, Stationary - 50 lbf 225 N , $28.80
Chatillon SPK-FMG-012A Hook, Stationary - 50 lbf 225 N Chatillon SPK-FMG-012A Hook, Stationary - 50 lbf 225 N , $28.80
Chatillon SPK-FMG-012B Hook, Stationary - 100 lbf 500 N Chatillon SPK-FMG-012B Hook, Stationary - 100 lbf 500 N , $41.40
Chatillon SPK-FMG-012B Hook, Stationary - 100 lbf 500 N Chatillon SPK-FMG-012B Hook, Stationary - 100 lbf 500 N , $41.40
Chatillon SPK-FMG-011A Flat Adapter  #10-32 100 lbf 500 N Chatillon SPK-FMG-011A Flat Adapter #10-32 100 lbf 500 N , $28.80
Chatillon SPK-FMG-011A Flat Adapter  #10-32 100 lbf 500 N Chatillon SPK-FMG-011A Flat Adapter #10-32 100 lbf 500 N , $28.80
Chatillon SPK-FMG-HANDLE Handle Assembly Chatillon SPK-FMG-HANDLE Handle Assembly , $164.35

View Features

Chatillon Ametek
SKU: LG-200N

Features

Capacity: 200 newtons

The Chatillon LG series mechanical force gauge is ideal for a wide range of force testing applications. Based on the popular DPP series force gauge, the LG series push pull gauges feature a larger, 2.25 dial for improved resolution and readability, peak hold function, ergonomic shape, and improved accuracy of +/-0.5% of full scale. The LG series force gauges are an excellent, economical solution for tensile or compression testing.

Chatillon LG series force gauges feature durable, plastic housing that fits naturally in the hand for a comfortable and firm grip even at maximum loads. Gauges can be mounted to a test stand for ever greater control and consistent results in repetitive testing applications. Easy to read concentric dial measures clockwise only. Dial rotates 360 degrees for taring. A peak hold button captures peak readings and can be easily and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in lbs, kgs or N units of measure.

LG series force gauges come complete with a protective carrying case and a set of stainless steel attachments. A Certificate of Calibration with Data is supplied standard.

Features:

  • Easy to use, durable construction
  • Tensile or compression testing
  • Intrinsically safe
  • Capacities up to 100 lbs
  • Push or Pull Operations
  • Tare Ring
  • Peak capture
  • NIST calibration with data

Specifications:

  • Accuracy: +/-0.5% of Full Scale
  • Display: 2-1/4 (57 mm)
  • Peak Capture: Switch selectable
  • Overload Capacity: 110% of capacity
  • Gauge Weight: 1.5 lbs
  • Warranty: 2 years

Optional Accessories: Optional gripping fixtures add flexibility to specialized testing needs.

Test Stand Usage: The LG gauge is adaptable to most Chatillon test stands for greater control of repetitive testing.

Model Capacity x Graduation
LG-002 2 x 0.01 lb
LG-005 5 x 0.025 lb
LG-010 10 x 0.05 lb
LG-020 20 x 0.1 lb
LG-030 30 x 0.15 lb
LG-050 50 x 0.25 lb
LG-075 75 x 0.375 lb
LG-100 100 x 0.5 lb
LG-1KG 1 x 0.005 kg
LG-2KG 2 x 0.01 kg
LG-3KG 3 x 0.015 kg
LG-5KG 5 x 0.025 kg
LG-10KG 10 x 0.05 kg
LG-20KG 20 x 0.1 kg
LG-30KG 30 x 0.15 kg
LG-50KG 50 x 0.25 kg
LG-10N 10 x 0.05 N
LG-20N 20 x 0.1 N
LG-30N 30 x 0.15 N
LG-50N 50 x 0.25N
LG-100N 100 x 0.5 N
LG-200N 200 x 1 N
LG-300N 300 x 1.5 N
LG-500N 500 x 2.5 N

Weight: 5.00 lb
2 Year Manufacture Warranty
