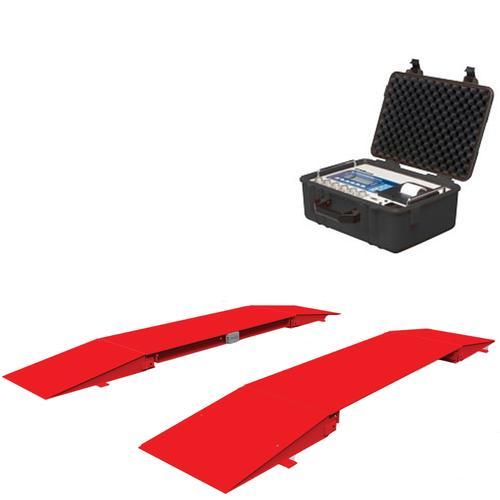

CAS RW-X200-120-PAK Portable Axle Weighers, 120 x 30 inch Package with 4 x Ramps and Indicator

This CAS RW-X200-120-PAK Package is a complete set. It contain 2 RW-X200-120 scales, 4 RW-X200-R03 Ramps, and 1 RW-2601P Indicator.

The RW-X200 Series Portable Axle Weigher is an economical alternative to full size truck scales. Use on paved or gravel type surfaces. Ideal for weighing tractor trailers, dump trucks, tri/quad axle trucks, concentrated loads, and more.

36 x 30 inch Ramp

CAS RW-P rugged cast aluminum weighing scales are light enough to accommodate portability yet large enough for any type of vehicle. Bright yellow industrial paint is baked on to the aluminum alloy chassis. Built tough

Scale Features
• 6 inch Low profile design insures easy access on and off ramp & platform.
• Rigidly mounted, IP67 rated, double ended shear beam load cells with 150% full scale overload capacity provides accurate weight without the need for moving suspension parts that require maintenance or load cell feet that can break or bend.
• Easy access, side mounted stainless steel junction boxes protect wire terminations and all interconnect cables including military grade connectors
• Completely detachable ramps include a fully plated base to help stabilize and fortify minimal soil bearing support. Ramp lag down tags enable the portable CAS RW-X200 to be installed in varying applications and site conditions.
• To insure installation ease, platforms can be transported and set via fork lift. All platforms and ramps are equipped with lift eye bolt holes.
• Quality Finish: All platform steel is shot blast cleaned to SSPC-SP6 specifications prior to painting with a durable two-component polyamide epoxy paint system.
