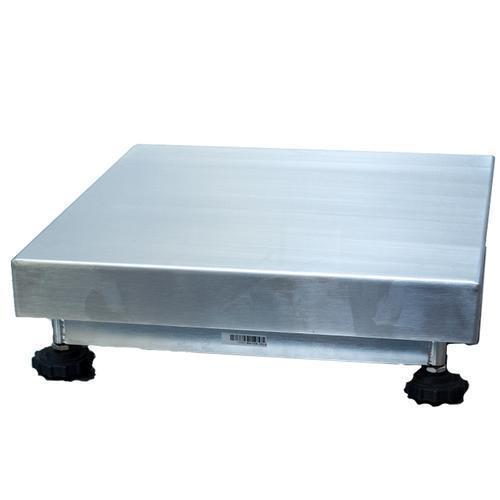

Intelligent Weighing Technology TitanB™ 500-24 Industrial Legal for Trade Bench 24 x 24 inches 500 lb (x 0.1 lb) (Base Only) |
|
| The TitanH is a stainless steel bench scale with an all stainless base and indicator. This is a great washdown scale that comes with a hermetically sealed load cell for extra peace of mind in the wettest of environments. more ... |
|
Industrial Scales >
Scale Bases No Indicator >
Bench Bases
|
|
|
|
|
|
Features
The TitanB™ base has 100 lb to 500 lb Capacity. All Stainless Steel IP66 Washdown. Legal for trade and includes a 6 ft Cable.
- NTEP Approved Class III
- All Stainless Steel Washdown
- Protected Aluminum Load Cell
- Includes Pillar & Mounting Bracket
- 6 ft Cable
- Heavy Duty
| Features |
Benefits |
| Heavy duty rugged 304 stainless steel construction |
Will withstand harsh industrial environments and cleaning |
| Low profile, compact size |
Space saving, easy to load and unload/td>
|
| Overload and shock protection mechanism |
Protects against excessive loads and shock applied to platform |
| Adjustable feet and spirit level |
Platform remains level for accurate results on uneven working surfaces – anti slip |
|
|
Other Intelligent Weighing Technology TitanB Industrial Legal for Trade Bench Bases
|
Specifications
| Model |
TitanB™ 100-16
099451044152 |
TitanB™ 200-16
099451044169 |
TitanB™ 200-24
099451042608 |
TitanB™ 500-24
820103866217 |
Capacity x Readability
No Indicator |
100 lb (x 0.02 lb) |
200 lb (x 0.05 lb) |
200 lb (x 0.05 lb) |
500 lb (x 0.1 lb) |
| Divisions |
5,000 |
5,000 |
5,000 |
5,000 |
| Construction |
All stainless steel washdown with aluminum load cell and protection system |
| Approvals |
NTEP CoC # 04-099 |
| Platform Size (W x D x H) |
16 x 16 x 5 in / 406 x 406 x 101 mm |
24 x 24 x 6 in / 610 x 610 x 152 mm |
| Shipping Size (W x D x H) |
33 x 23 x 9 in / 838 x 584 x 229 mm |
42 x 31 x 9 in / 1067 x 787 x 229 mm |
| Net Weight |
22 lb / 10 kg |
44 lb / 20 kg |
| Shipping Weight |
27 lb / 12.2 kg |
57 lb / 26 kg |
| NEMA / IP Rating |
NEMA 4X / IP 66 |
| Options |
3" Stainless Steel Wheel Kit, Various Indicators |
| Country of Origin |
China |
|
|
|
|
