Mark-10 FS05-50 Force Sensor for Series F test frame 50 x 0.02 lbF |
|
| Series FS05 force sensors measure tension and compression force, and are designed for use with Series F test frames. Capacities available from 0.12 to 500 lbF [0.5 N to 2.5 kN]. Also compatible with Mark-10 indicators (sold separately) through unique Plug & Test® technology. Includes a certificate of calibration with data. more ... |
|
Test Equipment >
Force Gauges >
Force Sensor
|
|
|
|
|
|
Features

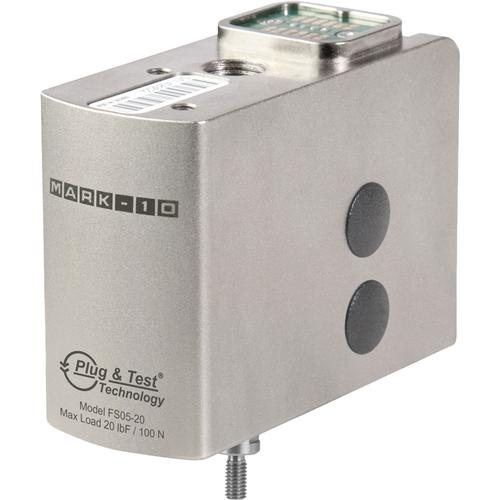

Series FS05 Force Sensors
Compatible with Models F105, F305, F505, and F505H. Adapter part no. AC1083 is required for Models F755, F755S, F1505, and F1505S.
Series FS05 force sensors measure tension and compression force, and are designed for use with Series F test frames. Capacities available from 0.12 to 500 lbF [0.5 N to 2.5 kN]. Also compatible with Mark-10 indicators (sold separately) through unique Plug & Test® technology. Includes a certificate of calibration with data.
Weight:
10.00 lb
|
|
Other Mark 10 FS05 Force Sensors
Mark-10 FS05-50
Force Sensor for Series F test frame 50 x 0.02 lbF
$1,220.75
You are viewing this product
|
Mark-10 FS05-100
Force Sensor for Series F test frame 100 x 0.05 lbF
$1,220.75
|
Mark-10 FS05-2
Force Sensor for Series F test frame 2 x 0.001 lbF
$1,220.75
|
Mark-10 FS05-5
Force Sensor for Series F test frame 5 x 0.002 lbF
$1,220.75
|
Mark-10 FS05-10
Force Sensor for Series F test frame 10 x 0.005 lbF
$1,220.75
|
Mark-10 FS05-20
Force Sensor for Series F test frame 20 x 0.01 lbF
$1,220.75
|
Mark-10 FS05-200
Force Sensor for Series F test frame 200 x 0.1 lbF
$1,377.50
|
Mark-10 FS05-300
Force Sensor for Series F test frame 300 x 0.2 lbF
$1,377.50
|
Mark-10 FS05-500
Force Sensor for Series F test frame 500 x 0.2 lbF
$1,377.50
|
Mark-10 FS05-025
Force Sensor for Series F test frame 0.25 x 0.0001 lbF
$1,377.50
|
Mark-10 FS05-05
Force Sensor for Series F test frame 0.5 x 0.0002 lbF
$1,377.50
|
Mark-10 FS05-012
Force Sensor for Series F test frame 0.12 x 0.00002 lbF
$1,724.25
|
|
Specifications
| Model No. |
lbF |
ozF |
gF |
kgF |
N |
kN |
mN |
| FS05-012 |
0.12 x 0.00002 |
2 x 0.0005 |
50 x 0.01 |
- |
0.5 x 0.0001 |
- |
500 x 0.1 |
| FS05-025 |
0.25 x 0.0001 |
4 x 0.002 |
100 x 0.05 |
- |
1 x 0.0005 |
- |
1000 x 0.5 |
| FS05-05 |
0.5 x 0.0002 |
8 x 0.005 |
250 x 0.1 |
- |
2.5 x 0.001 |
- |
2500 x 1 |
| FS05-2 |
2 x 0.001 |
32 x 0.02 |
1000 x 0.5 |
1 x 0.0005 |
10 x 0.005 |
- |
- |
| FS05-5 |
5 x 0.002 |
80 x 0.05 |
2500 x 1 |
2.5 x 0.001 |
25 x 0.01 |
- |
- |
| FS05-10 |
10 x 0.005 |
160 x 0.1 |
5000 x 2 |
5 x 0.002 |
50 x 0.02 |
- |
- |
| FS05-20 |
20 x 0.01 |
320 x 0.2 |
10000 x 5 |
10 x 0.005 |
100 x 0.05 |
- |
- |
| FS05-50 |
50 x 0.02 |
800 x 0.5 |
25000 x 10 |
25 x 0.01 |
250 x 0.1 |
- |
- |
| FS05-100 |
100 x 0.05 |
1600 x 1 |
50000 x 20 |
50 x 0.02 |
500 x 0.2 |
- |
- |
| FS05-200 |
200 x 0.1 |
3200 x 2 |
- |
100 x 0.05 |
1000 x 0.5 |
1 x 0.0005 |
- |
| FS05-300 |
300 x 0.2 |
4800 x 5 |
- |
150 x 0.1 |
1500 x 1 |
1.5 x 0.001 |
- |
| FS05-500 |
500 x 0.2 |
8000 x 5 |
- |
250 x 0.1 |
2500 x 1 |
2.5 x 0.001 |
- |
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
