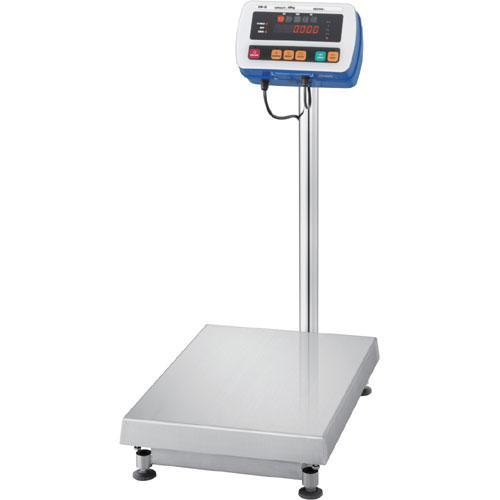

AND Weighing SW-15KM High Pressure Washdown Scale 33 lb x 0.002 lb

The SW Super Washdown scales from A&D are designed to withstand the most demanding process conditions. From dusty to wet environments, including food processing plants where cleanliness and sanitation are of critical importance, the SW scales are built to endure the extreme conditions of high pressure and temperature water as specifi ed by the IP69K standard (1450 psi and 175°F). more ...
Scales > Industrial Scales > Bench Scales
AND Weighing SW-15KM High Pressure Washdown Scale 33 lb x 0.002 lb

View Full Detail Page


Call for more info
Download PDF
AND Weighing SW-15KM High Pressure Washdown Scale 33 lb x 0.002 lb

Price: $1,271.25


In Stock - Ships within 24 hours

Optional Accessories

View Features

AND Weighing
SKU: SW-15KM

Features

The SW Super Washdown scales from A&D are designed to withstand the most demanding process conditions. From dusty to wet environments, including food processing plants where cleanliness and sanitation are of critical importance, the SW scales are built to endure the extreme conditions of high pressure and temperature water as specifi ed by the IP69K standard (1450 psi and 175°F).

  • IP69K - the highest level of dust and water-proofi ng
  • Ultimate protection against the effects of condensation
  • Streamlined construction for easy cleaning of food processing residues
  • Stainless steel weighing pan, frame, and hermetically sealed load cell*
  • Rugged and adjustable indicator bracket
  • Capacitive keys for light touch operation
  • Bright, multicolored LED display with 5-level comparator lamps
  • Five Position Comparator Function
  • Counting Function
  • Desktop/wall-mount bracket available
  • Optional rechargeable battery, RS-232C + comparator, and RS-422 / 485 available
  • 1 Year Warranty
Model SW-6KS SW-15KS SW-15KM SW-30KM SW-60KM SW-150KM SW-60KL SW-150KL
Capacity X Readability 13 lb x 0.001 lb 33 lb x 0.002 lb 33 lb x 0.002 lb 66 lb x 0.005 lb 130 lb x 0.01 lb 330 lb x 0.02 lb 130 lb x 0.01 lb 330 lb x 0.02 lb
6 kg x 1 g 15 kg x 2 g 15 kg x 2 g 30 kg x 5 g 60 kg x 10 g 150 kg x 20 g 60 kg x 10g 150 kg x 20 g
Repeatability (Std. deviation) 0.002 lb 0.005 lb 0.005 lb 0.01 lb 0.02 lb 0.05 lb 0.02 lb 0.05 lb
Linearity ±0.005 lb ±0.01 lb ±0.01 lb ±0.02 lb ±0.05 lb ±0.1 kg ±0.05 lb ±0.1 lb
Sensitivity drift ±20 ppm / °C (5°C to 35°C / 41°F to 95°F)
No. of samples 5 (can be changed to 10, 20, 50 or 100) pieces
Max. count 120,000 pcs 150,000 pcs 150,000 pcs 150,000 pcs 120,000 pcs 150,000 pcs 120,000 pcs 150,000 pcs
Min. unit weight 0.05 g 0.1 g 0.1 g 0.2 g 0.5 g 0.1 g 0.5 g 0.1 g
Units of Measure lb, oz, kg, g, lb-oz
Display 7 segment LED display (character height 14.6 mm) Comparator light, Red/Yellow/Green/Yellow/Red LED
Display update 10 times per second
Operating temp. -10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non-condensing)
Power supply AC main (100V~240V) or SLA Battery (option), Approximately 90 hours operation
Weighing pan size 250 x 250 mm
9.8 x 9.8 in.
300 x 380 mm
11.8 x 15.0 in.
390 x 530 mm
15.4 x 20.9 in.
Dimensions 250(W) x 480(D) x 353.5(H) mm
9.8(W) x 18.9(D) x 13.9(H) in.
390(W) x 751(D) x 722.5(H) mm
11.8(W) x 23.7(D) x 28.4(H) in.
390(W) x 751(D) x 722.5(H) mm
15.4(W) x 29.6(D) x 28.4(H) in.
Weight (approximately) 7.7 kg / 17.0 lb 13.0 kg / 28.7 lb 16.2 kg / 35.7 lb
Shipping Weight 11 kg / 25 lb 17.4 kg / 39 lb 22.1 kg / 49 lb
Calibration weight 6 kg
12 lb
15 kg
30 lb
15 kg
30 lb
30 kg
60 lb
60 kg
120 lb
150 kg
300 lb
60 kg
120 lb
150 kg
300 lb

Weight: 28.70 lb
Other AND Weighing SW-Series High Pressure Washdown Scales

SW-6KS
High Pressure Washdown Scale 13 lb x 0.001 lb

$1,046.25

SW-15KS
High Pressure Washdown Scale 33 lb x 0.002 lb

$1,046.25

SW-15KM
High Pressure Washdown Scale 33 lb x 0.002 lb

$1,271.25

You are viewing this product

SW-30KM
High Pressure Washdown Scale 66 lb x 0.005 lb

$1,271.25

SW-60KM
High Pressure Washdown Scale 130 lb x 0.01 lb

$1,346.25

SW-150KM
High Pressure Washdown Scale 330 lb x 0.02 lb

$1,346.25

SW-60KL
High Pressure Washdown Scale 130 lb x 0.01 lb

$1,496.25

SW-150KL
High Pressure Washdown Scale 330 lb x 0.02 lb

$1,496.25

Optional Accessories


AND Weighing SW-03 RS-232C plus compatator relay output for SW Series
more info
AND Weighing SW-03 RS-232C plus compatator relay output for SW Series
more info
Price: $150.00
In Stock
btn buy

AND Weighing SW-03 RS-232C plus compatator relay output for SW Series .

AND Weighing SW-04 RS-422/485 for SW Series
more info
AND Weighing SW-04 RS-422/485 for SW Series
more info
Price: $120.00
In Stock
btn buy

AND Weighing SW-04 RS-422/485 for SW Series .

AND Weighing SW-11 Wall mount bracket for SW Series
more info
AND Weighing SW-11 Wall mount bracket for SW Series
more info
Price: $90.00
In Stock
btn buy

AND Weighing SW-11 Wall mount bracket for SW Series .

AND Weighing HC-06i Rechargeable Battery Pack
more info
AND Weighing HC-06i Rechargeable Battery Pack
more info
Price: $39.00
In Stock
btn buy
Rechargeable battery pack for AND Weighing HC-I series digital counting scales
