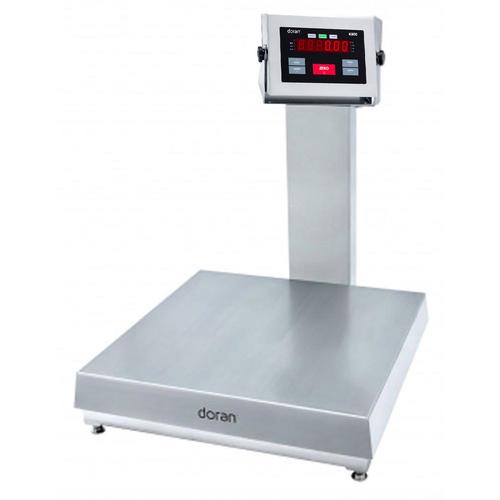

Doran 43250/18S-C20 Legal for Trade 18 X 18 Checkweighing Scale 250 x 0.05 lb |
|
| The Doran Model APS4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership. more ... |
|
Industrial Scales >
Checkweighing Scales >
Dedicated Checkweighing Scales
|
|
|
|
|
|
Features
The Doran Model APS4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership. Here’s why
Washdown Safe - 304 Stainless Steel construction, and the exclusive, innovative Doran Gasket design meets and exceeds IP69K and NEMA 4X classification for washdown protection. The 4300 Checkweigh Scale will survive and thrive in the most extreme washdown weighing applications
1000% Overload Protection - With the unique “Quad Spring©” base design, Doran Scales has virtually eliminated the most common load cell damage caused by shock and overload damage. Protected to up to 10 times capacity, the 4300 Checkweigh Scale sets the new industry standard - A Doran Exclusive!
Indestructible “Guardian” Touch Panel - Reduced down time and lower maintenance costs even in repeated harsh washdown environments. Four times thicker than the competition, this super rugged touch panel resists moisture and puncture damage better than any other scale.
Easy Operation - Simple to use with minimal operator training. Set Over/Under tolerances right from the front panel using the Up/Down arrow buttons. Checkweigh to zero or actual weight with 3 or 5 zone checkweighing operations.
Powerful New Excel Design
- Communications Interface
- Programmable, Bi-directional RS-232 interface
- Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (Wired or Wireless - 802.11b), User definable data output, all Field Installable Options.
- Optional Setpoints
- Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs
- Advanced Features
- Grading Scale and Peak & Hold - Standard
- Internal Rechargeable Battery Option
- Dimension setup and optional Excelerator data collection Windows software.
|
|
Other Doran APS4300 Checkweighing Scales
4350-C14
Legal for Trade 10 X 10 Checkweighing Scale 50 x 0.01 lb
$1,485.00
|
4325-C14
Legal for Trade 10 X 10 Checkweighing Scale 25 x 0.005 lb
$1,485.00
|
4310-C14
Legal for Trade 10 X 10 Checkweighing Scale 10 x 0.002 lb
$1,485.00
|
4305-C14
Legal for Trade 10 X 10 Checkweighing Scale 5 x 0.001 lb
$1,485.00
|
4302-C14
10 X 10 Checkweighing Scale 2 x 0.0005 lb
$1,485.00
|
4350/12-C14
Legal for Trade 12 X 12 Checkweighing Scale 50 x 0.01 lb
$1,588.50
|
4325/12-C14
Legal for Trade 12 X 12 Checkweighing Scale 25 x 0.005 lb
$1,588.50
|
43200/15-C14
Legal for Trade 15 X 15 Checkweighing Scale 200 x 0.05 lb
$1,809.00
|
43100/15-C14
Legal for Trade 15 X 15 Checkweighing Scale 100 x 0.02 lb
$1,809.00
|
4350/15-C14
Legal for Trade 15 X 15 Checkweighing Scale 50 x 0.01 lb
$1,809.00
|
43200/15-C20
Legal for Trade 15 X 15 Checkweighing Scale 200 x 0.05 lb
$1,872.00
|
43100/15-C20
Legal for Trade 15 X 15 Checkweighing Scale 100 x 0.02 lb
$1,872.00
|
4350/15-C20
Legal for Trade 15 X 15 Checkweighing Scale 50 x 0.01 lb
$1,872.00
|
43500/1824-C20
Legal for Trade 18 X 24 Checkweighing Scale 500 x 0.1 lb
$2,119.50
|
43250/1824-C20
Legal for Trade 18 X 24 Checkweighing Scale 250 x 0.05 lb
$2,119.50
|
43500/18S-C20
Legal for Trade 18 X 18 Checkweighing Scale 500 x 0.1 lb
$2,119.50
|
43250/18S-C20
Legal for Trade 18 X 18 Checkweighing Scale 250 x 0.05 lb
$2,119.50
You are viewing this product
|
43100/18S-C20
Legal for Trade 18 X 18 Checkweighing Scale 100 x 0.02 lb
$2,119.50
|
431000/2424-C20
Legal for Trade 24 X 24 Checkweighing Scale 1000 x 0.2 lb
$2,551.50
|
43500/2424-C20
Legal for Trade 24 X 24 Checkweighing Scale 500 x 0.1 lb
$2,551.50
|
43250/2424-C20
Legal for Trade 24 X 24 Checkweighing Scale 250 x 0.05 lb
$2,551.50
|
43100/12-C14
Legal for Trade 12 X 12 Checkweighing Scale 100 x 0.02 lb
$15,885.00
|
|
Specifications
| Model |
4350/15-C20
(APS4350/15) |
43100/15-C20
(APS43100/15) |
43200/15-C20
(APS43200/15) |
43100/18S-C20
(APS43100/18S) |
43250/18S-C20
(APS43250/18S) |
43500/18S-C20
(APS43500/18S) |
| Capacity x Readability |
lb |
50 x 0.01 |
100 x 0.02 |
200 x 0.05 |
100 x 0.02 |
250 x 0.05 |
500 x 0.1 |
| kg |
22.7 kg x 5g |
45 kg x 10g |
91 kg x 20g |
45 kg x 10g |
113 kg x 20g |
227 kg x 50g |
| oz |
800 x 0.2 oz |
1600 x 0.5 oz |
3200 x 1 oz |
1600 x 0.5 oz |
4000 x 1 oz |
8000 x 2 oz |
| Platter Size |
15" x 15" |
18" x 18" |
| Legal for Trade |
Indicator: CC# 97-038A1 NTEP Class III
Base: CC# 97-097A1 NTEP Class III
|
Indicator: CC# 97-038A1 NTEP Class III
Base: CC# 13-110 NTEP Class III
|
Indicator: CC# AM-5201 Canada Class III
Base:CC# 97-097A1 Canada Class III
|
Indicator: CC# AM-5201 Canada Class III
Base:CC# 13-110 Canada Class III
|
| NTEP Resolution |
5000d |
5000d |
5000d |
5000d |
5000d |
5000d |
| Outputs |
- Bi-directional RS-232 Serial Port.
- Eight Digital Outputs
|
| Column |
20 inch |
| Washdown |
NEMA4 x |
| Display |
6 Digit, red LED, 0.56" High |
| Controls: |
ZERO, UNITS, PRINT, OVER, and UNDER |
| Indicators |
lb, kg, g, oz, ZERO, MOT, NEG, OVER, UNDER, and ACCEPT |
| Units |
lb, kg, g, oz, or lb:oz |
| Power |
115 VAC (230 VAC Optional);EMI/ESD protected Internal Rechargeable Battery (Optional |
| Construction |
304 Stainless Steel |
| Warranty |
Two Year Parts & Labor |
|
|
|
|
|
|
|
Optional Accessories
more info
|
Doran EXOPT172 Serial Cable (DB9 - Female) Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT172 Serial Cable (DB9 - Female) Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT172 Serial Cable (DB9 - Female) Quick Disconnect - Bulkhead Mount (IP68 Rated)
|
|
more info
|
Doran SUB0852 Clear protective scale veil (Pack of 3)
Doran SUB0852 Clear protective scale veil (Pack of 3)
|
|
more info
|
Doran EXOPT136-CCLB Stainless Steel Load Cell for 8 x 8 or 10 x 10 Base
Doran EXOPT136-CCLB Stainless Steel Load Cell for 8 x 8 or 10 x 10 Base
2 lb capacity is not supported by this option
NOTE Stainless steel load cell options are not recommended for 10,000d resolution. Cannot be used in Legal for Trade applications.
CC is scale capacity in LB. This applies to entire Load Cell options section
|
|
more info
|
Doran EXOPT137-CCLB Stainless Steel Load Cell for 12 x 12 Base
Doran EXOPT137-CCLB Stainless Steel Load Cell for 12 x 12 Base
NOTE Stainless steel load cell options are not recommended for 10,000d resolution. Cannot be used in Legal for Trade applications.
CC is scale capacity in LB. This applies to entire Load Cell options section
|
|
more info
|
Doran EXOPT138-CCLB Stainless Steel Load Cell for 15 x 15 Base
Doran EXOPT138-CCLB Stainless Steel Load Cell for 15 x 15 Base
NOTE Stainless steel load cell options are not recommended for 10,000d resolution. Cannot be used in Legal for Trade applications.
CC is scale capacity in LB. This applies to entire Load Cell options section
|
|
more info
|
Doran EXOPT179-CCLB Stainless Steel Load Cell for 18 x 18, 18 x 24, or 24 x 24 Base
Doran EXOPT179-CCLB Stainless Steel Load Cell for 18 x 18, 18 x 24, or 24 x 24 Base
NOTE Stainless steel load cell options are not recommended for 10,000d resolution. Cannot be used in Legal for Trade applications.
CC is scale capacity in LB. This applies to entire Load Cell options section
|
|
more info
|
Doran CUSTOM-LABEL Custom Label Formatting
Doran CUSTOM-LABEL Custom Label Formatting
Formatting for one label. Complex labels may require an additional charge
|
|
more info
|
Doran PRT0351-C Impact Printer Paper tape printer includes scale to printer cable.
Doran PRT0351-C Impact Printer Paper tape printer includes scale to printer cable.
|
|
more info
|
Doran SFT0017 Dimension Indicator Configuration Software
Doran SFT0017 Dimension Indicator Configuration Software
This scale is compatible with the following software. See the Weighing Systems section for more details.
|
|
more info
|
Doran EXOPT140 Load Cell Cable Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT140 Load Cell Cable Quick Disconnect - Bulkhead Mount (IP68 Rated)
8 pin bulkhead mount on the back of the indicator & the mating connector
is attached to the load cell cable.
|
|
more info
|
Doran EXOPT141 Remote Switch Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT141 Remote Switch Quick Disconnect - Bulkhead Mount (IP68 Rated) 4 pin bulkhead mount on the back of the indicator & the mating connector isattached to the remote switch cable. Does NOT include the remote switch
|
|
more info
|
Doran EXOPT306 4-20mA Analog Output (Active Only) Option
Doran EXOPT306 4-20mA Analog Output (Active Only) Option - Includes: Internal 4-20mA interface board (12-bit accuracy) & 12 feet of cable. This option can be combined with the USB Interface Option and Ethernet Option.
|
|
more info
|
Doran EXOPT174 Serial Cable (DB9 - Male) Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT174 Serial Cable (DB9 - Male) Quick Disconnect - Bulkhead Mount (IP68 Rated)
6 pin bulkhead mount on the back of the indicator & the mating connector is attached
to one end of a 10’ long serial cable, the other end has a DB9 male connector.
|
|
more info
|
Doran EXOPT316 Drill Extra Hole in Backplate
Doran EXOPT316 Drill Extra Hole in Backplate
Required for multiple RS-232 communication options and remote switches.
Consult factory when ordering multiple communication options
|
|
more info
|
Doran EXOPT192 - Red Light Modules (Over)
Doran EXOPT192 - Red Light Modules (Over)- 2.83" tall light module with a 100,000 hour, red LED bulb. Constructed of heavy duty industrial polycarbonate, light module is rated NEMA 4X and IP65. 1.97" Diameter
|
|
more info
|
Doran EXOPT193 - Green Light Modules (Accept)
Doran EXOPT193 - Green Light Modules (Accept)- 2.83 tall light module with a 100,000 hour, Green LED bulb. Constructed of heavy duty industrial polycarbonate, light module is rated NEMA 4X and IP65. 1.97 Diameter
|
|
more info
|
Doran EXOPT194 - Yellow Light Modules (Under)
Doran EXOPT194 - yellow Light Modules (Under)- 2.83 tall light module with a 100,000 hour, yellow LED bulb. Constructed of heavy duty industrial polycarbonate, light module is rated NEMA 4X and IP65. 1.97 Diameter
|
|
more info
|
Doran EXOPT313 Internal Audible Alarm Option Over - Continuous
Doran EXOPT313 Internal Audible Alarm Option Over - Continuous - 1, 2, or 3 audible alarms for “Over”, “Accept”, or “Under”, varying tones and volume control - specify tone at time of order (3 maximum). Alarms are rated NEMA 4X.
This option CAN NOT be ordered with Internal Rechargeable Battery option.
-Audible Alarm Options are NOT field-installable, call factory for more details
Must be orderd with scale
|
|
more info
|
Doran EXOPT314 Internal Audible Alarm Option Under - Warble
Doran EXOPT314 Internal Audible Alarm Option Under - Warble t - Chime - 1, 2, or 3 audible alarms for “Over”, “Accept”, or “Under”, varying tones and volume control - specify tone at time of order (3 maximum). Alarms are rated NEMA 4X.
This option CAN NOT be ordered with Internal Rechargeable Battery option.
-Audible Alarm Options are NOT field-installable, call factory for more details
Must be orderd with scale
|
|
more info
|
Doran EXOPT320 Light Tower Pole Mount Base
Doran EXOPT320 Light Tower Pole Mount Base
Includes: 11 in tall light tower base. Constructed of heavy duty industrial polycarbonate, light towers are rated NEMA 4X and IP65. Light tower bases must be ordered with
at least one light module. 19", 31" and 39" heights also available. Call for pricing. .
This option CAN NOT be ordered with Internal Rechargeable Battery option.
|
|
more info
|
Doran EXOPT321 Light Tower Backplate Mount Base
Doran EXOPT321 Light Tower Pole Mount Base
Includes: backplate mount light tower base. Constructed of heavy duty industrial polycarbonate, light tower is rated NEMA 4X and IP65. This light tower base is attached to the 2200CW indicator backplate..
This option CAN NOT be ordered with Internal Rechargeable Battery option.
|
|
more info
|
Doran SFT0001 CheckWay PC Software
Now checkweigh data can be moved to where and when decisions need to be made -- at a management level in real-time. Excelerator turns simple weight information into a valuable management tool to analyze and control any process
Collect data from up to 20 scales
simultaneously using one PC with Doran’s optional
Excelerator Data Collection Software. Scale data
can be sent from the 2200CW to Excelerator via
one of the standard RS-232 ports or through one
of the versatile communication options
Scale data is sent directly into an Excel spreadsheet,
using a custom format you define in Excelerator.
Once imported into Excel, the real-time data can
be manipulated to show Averages, Standard
Deviation, and Accumulated Totals
|
|
more info
|
Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit
Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit Includes one NEMA4X connerctor to mate to the connector on the back of the scale. Installes on customer supplied cable..
Requires a RJ45 cable crimping tool
|
|
more info
|
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D connector - Scale to PC
Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit
RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205
|
|
more info
|
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D connector - Scale to PC
Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit
RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205
|
|
more info
|
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D connector - Scale to Printer
Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit
RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205
|
|
more info
|
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D connector - Scale to Printer
Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit
RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205
|
|
more info
|
Doran EXOPT115 Remote Switch Configured for remote ZERO
Doran EXOPT115 Remote Switch Configured for remote ZERO standard painted steel 3-1/2" x 2-5/8" x 1" includes a 10 foot Cable
|
|
more info
|
Doran EXOPT116 Remote Switch Configured for remote PRINT
Doran EXOPT115 Remote Switch Configured for remote PRINT standard painted steel 3-1/2" x 2-5/8" x 1" includes a 10 foot Cable
|
|
more info
|
Doran EXOPT117 Remote Switch Configured for remote UNITS
Doran EXOPT117 Remote Switch Configured for remote UNITS standard painted steel 3-1/2" x 2-5/8" x 1" includes a 10 foot Cable
|
|
more info
|
Doran LR350 Label Printer (PRT0350-C)
The Doran LR350 barcode label printer offers outstanding performance, reliability and flexibility to meet the demands of todays fast paced label printing applications. Ideal for all non-washdown applications such as: packaging, production, warehousing, shipping and receiving printing needs.
Direct thermal print technology provides high quality labels time after time. Preloaded Doran label formats provide true plug and play setup for most labeling applications - custom label designs are also available.
- Direct Thermal 203 dpi Resolution
- 68" Maximum Print Length
- 4.25" Maximum Print Width
- Compatible with "Create a Label" for easy label design
- Includes one roll of 4" x 5" labels
- Label Gap Sensor
- USB 2.0 PC Interface (drivers included)
- RS-232 Scale Interface
- 2 MB User Storage
- Heavy Duty ABS construction, suitable for Non-washdown applications
- Windows PC for label design (Programmable via USB Port)
- Optional Label Peeler
Doran Scale to be Used With the Printer:
PC400, PC500, 4300, 7000XL, 7400, 8000XL, 2200, 2200B, 2200CW
Specifications
Model
LR350
Print Speed
2" - 4" IPS |
Media
Label roll O.D.: Maximum - 5", Core Diameter: 1" - 1.5" |
Interface
DB-9 Serial port and USB 2.0 |
Memory
Standard: 4 MB / 8 MB SDRAM |
Power
100~240VAC, 50/60 Hz |
Environment
Operation Temperature: 40° F to 104° F |
Printer Dimensions
Length: 8.58" Height: 6.53" Width: 6.61" |
Printer Language
EZPL |
Resident Fonts
11 resident alphanumeric fonts |
Barcode Formats
Code 39, Code 93, Code 128 (subset A,B,C), UCC
128, UCC/EAN-128 K-Mart, UCC/EAN-128, UPC
A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping
Bearer Bars, EAN 8/13 (add on 2&5), Codebar, Post
NET, EAN 128, DUN 14, MaxiCode, HIBC, Plessey,
Random Weight, Telepen, FIM, RPS 128, PDF417 &
Datamatrix Code, QR Code |
|
|
more info
|
Doran EXOPT134 Upgrade 20 Inch to 30 Inch Stainless Steel Atlas Column
Doran EXOPT161 Upgrade from Upgrade 20 Inch to 30 Inch Stainless Steel Atlas Column
|
|
more info
|
Doran EXOPT300 Bluetooth Internal Communications & USB Adapter
Includes: Internal class 3 Bluetooth communication option and one class 1 Bluetooth
receiver USB Adapter. Can be combined with USB Option (EXOPT304)
this option is Factory Installed and must be added with the scale
|
|
more info
|
Doran EXOPT308 Internal Rechargeable Battery Providing up to 60 hours of continuous use
Doran EXOPT308 Internal Rechargeable Battery Providing up to 60 hours of continuous use
Must be orderd with scale
|
|
more info
|
Doran EXOPT310-BB-CCLB Super Precision Calibration
Doran EXOPT310-BB-CCLB Super Precision Calibration Scales will be factory calibrated to 10,000d with high resolution load cell.
Note: BB is D7 8x8, 10x10; D8 for 12x12; D9 for 15x15; DS for 18x18, 18x24 and 24x24 bases.
CC is base capacity in LB.
|
|
more info
|
Doran EXOPT301 Internal Bluetooth Communications Only
Doran EXOPT301 Internal Bluetooth Communications Only Includes: Internal class 3 Bluetooth communication option (The following combination of Communication & Data Options are possible:
a. Wired Ethernet + 4-20 + USB b. Bluetooth + USB c. Wireless Ethernet + USB)
|
|
more info
|
Doran EXOPT302 Ethernet Wired
Doran EXOPT302 Ethernet Wired Includes: Internal Ethernet interface board with sealed RJ45 connector on the back of the scale. Can be combined with USB and 4-20mA options
(2 The following combination of Communication & Data Options are possible:
a. Wired Ethernet + 4-20 + USB b. Bluetooth + USB c. Wireless Ethernet + USB)
|
|
more info
|
Doran EXOPT303 Ethernet - Wireless 802.11b/g
Doran EXOPT303 Ethernet - Wireless 802.11b/g - Includes: Internal Ethernet interface board and a 3.5" long flexible antenna with a NEMA4X bulkhead mount on back of meter. Can be combined with USB Option
(The following combination of Communication & Data Options are possible:
a. Wired Ethernet + 4-20 + USB b. Bluetooth + USB c. Wireless Ethernet + USB)
|
|
more info
|
Doran EXOPT304 USB Communications
Doran EXOPT304 USB Communications - Includes: Internal USB interface board and a sealed USB Type B connector bulkhead mounted on side of meter with a NEMA 4X sealing cap. For scales used in wet environment,
choose one the following USB Waterproof Cables (IP67 and NEMA 4X Rated). This option can be combined with Ethernet, Wireless Ethernet, Bluetooth and 4-20mA options
|
|
more info
|
Doran EXOPT305 USB Waterproof Cable, 10 Feet Long (IP67 Rated)
Doran EXOPT305 USB Waterproof Cable, 10 Feet Long (IP67 Rated)
|
|
more info
|
Doran WCB0261 USB Internal Cable for Wired Ethernet (EXOPT302), Wifi (EXOPT303) and Bluetooth (EXOPT301) options
Doran WCB0261 USB Internal Cable for Wired Ethernet (EXOPT302), Wifi (EXOPT303) and Bluetooth (EXOPT301) options
|
|
more info
|
Doran EXOPT311 USB Bulkhead Connector for WiFi and Wired Ethernet Options
Doran EXOPT311 USB Bulkhead Connector for WiFi and Wired Ethernet Options Provides bulkhead USB connector to access USB communications option when using in addition to WiFi (EXOPT303) and Ethernet (EXOPT302) options
|
|
|
|
|
|
|
|
|
