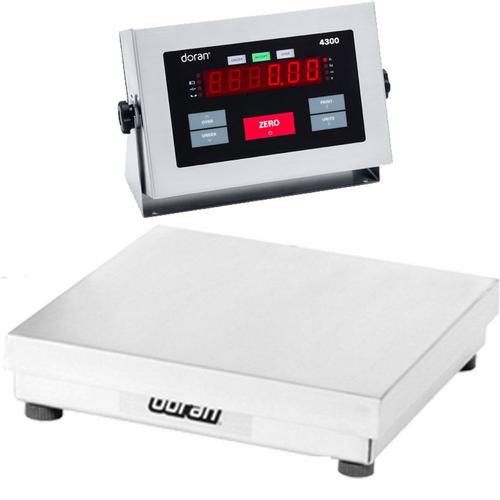

Name: Doran 43100/12 Legal for Trade 12 X 12 Checkweighing Scale 100 x 0.02 lb
Brand: Doran
SKU: 31112
Price: 1404.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

Doran 43100/12 Legal for Trade 12 X 12 Checkweighing Scale 100 x 0.02 lb
The Doran Model 4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership. more ...

Industrial Scales > Checkweighing Scales > Dedicated Checkweighing Scales

Doran 43100/12 Legal for Trade 12 X 12 Checkweighing Scale 100 x 0.02 lb

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Doran 43100/12 Legal for Trade 12 X 12 Checkweighing Scale 100 x 0.02 lb
FREE Ground Shipping
(48 US States Only)

Price: $1,404.00

Available to Ship

Optional Accessories

	Doran EXOPT300 Bluetooth Internal Communications & USB Adapter , $209.00

	Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit , $65.00

	Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D , $71.25

	Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D , $71.25

	Doran EXOPT115 Remote Switch Configured for remote ZERO , $81.00

	Doran EXOPT116 Remote Switch Configured for remote PRINT , $81.00

	Doran EXOPT117 Remote Switch Configured for remote UNITS , $81.00

	Doran LR350 Label Printer (PRT0350-C) , $540.00

View Features

Doran
SKU: 43100/12

Features

The Doran Model 4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership. Here’s why

Washdown Safe - 304 Stainless Steel construction, and the exclusive, innovative Doran Gasket design meets and exceeds IP69K and NEMA 4X classification for washdown protection. The 4300 Checkweigh Scale will survive and thrive in the most extreme washdown weighing applications

1000% Overload Protection - With the unique “Quad Spring©” base design, Doran Scales has virtually eliminated the most common load cell damage caused by shock and overload damage. Protected to up to 10 times capacity, the 4300 Checkweigh Scale sets the new industry standard - A Doran Exclusive!

Indestructible “Guardian” Touch Panel - Reduced down time and lower maintenance costs even in repeated harsh washdown environments. Four times thicker than the competition, this super rugged touch panel resists moisture and puncture damage better than any other scale.

Easy Operation - Simple to use with minimal operator training. Set Over/Under tolerances right from the front panel using the Up/Down arrow buttons. Checkweigh to zero or actual weight with 3 or 5 zone checkweighing operations.

Powerful New Excel Design

Communications Interface
- Programmable, Bi-directional RS-232 interface
- Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (Wired or Wireless - 802.11b), User definable data output, all Field Installable Options.
Optional Setpoints
- Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs
Advanced Features
- Grading Scale and Peak & Hold - Standard
- Internal Rechargeable Battery Option
- Dimension setup and optional Excelerator data collection Windows software.

Weight: 30.00 lb

Other Doran 4300 Checkweighing Scales

4305/88 Legal for Trade 8 X 8 Checkweighing Scale 5 x 0.001 lb $1,287.00	4310/88 Legal for Trade 8 X 8 Checkweighing Scale 10 x 0.002 lb $1,287.00	4325/88 Legal for Trade 8 X 8 Checkweighing Scale 25 x 0.005 lb $1,287.00	4302/88 8 X 8 Checkweighing Scale 2 x 0.0005 lb $1,287.00	4302 10 X 10 Checkweighing Scale 2 x 0.0005 lb $1,300.50
4305 Legal for Trade 10 X 10 Checkweighing Scale 5 x 0.001 lb $1,300.50	4310 Legal for Trade 10 X 10 Checkweighing Scale 10 x 0.002 lb $1,300.50	4325 Legal for Trade 10 X 10 Checkweighing Scale 25 x 0.005 lb $1,300.50	4350 Legal for Trade 10 X 10 Checkweighing Scale 50 x 0.01 lb $1,300.50	4350/12 Legal for Trade 12 X 12 Checkweighing Scale 50 x 0.01 lb $1,404.00
43100/12 Legal for Trade 12 X 12 Checkweighing Scale 100 x 0.02 lb $1,404.00 You are viewing this product	4350/15 Legal for Trade 15 X 15 Checkweighing Scale 50 x 0.01 lb $1,624.50	43200/15 Legal for Trade 15 X 15 Checkweighing Scale 200 x 0.05 lb $1,624.50	43100/15 Legal for Trade 15 X 15 Checkweighing Scale 100 x 0.02 lb $1,624.50	43100/18S Legal for Trade 18 X 18 Checkweighing Scale 100 x 0.02 lb $1,872.00
43250/18S Legal for Trade 18 X 18 Checkweighing Scale 250 x 0.05 lb $1,872.00	43500/18S Legal for Trade 18 X 18 Checkweighing Scale 500 x 0.1 lb $1,872.00	43250/1824 Legal for Trade 18 X 24 Checkweighing Scale 250 x 0.05 lb $2,052.00	43500/1824 Legal for Trade 18 X 24 Checkweighing Scale 500 x 0.1 lb $2,052.00	43250/2424 Legal for Trade 24 X 24 Checkweighing Scale 250 x 0.05 lb $2,304.00
43500/2424 Legal for Trade 24 X 24 Checkweighing Scale 500 x 0.1 lb $2,304.00	431000/2424 Legal for Trade 24 X 24 Checkweighing Scale 1000 x 0.2 lb $2,304.00

Specifications

Model		4350/12	43100/12	4350/15	43100/15	43200/15
Capacity x Readability	lb	50 x 0.01	100 x 0.02	50 x 0.01	100 x 0.02	200 x 0.05
	kg	22.7 x 5g	45 x 10g	22.7 x 5g	45 x 10g	91 x 20g
	oz	800 x 0.2	1600 x 0.5	800 x 0.2	1600 x 0.5	3200 x 1
Platter Size		12" x 12"		15" x 15"
Legal for Trade		Indicator: CC# 97-038A1 NTEP Class III - Base: CC# 97-097A1 NTEP Class III
Legal for Trade		Indicator: CC# AM-5201 Canada Class III - Base: CC# AM-5241 Canada Class III
NTEP Resolution		5000d	5000d	5000d	5000d	5000d
Outputs		Bi-directional RS-232 Serial Port. Eight Digital Outputs
Column		14 inch - Optional
Washdown		NEMA4 x
Display		6 Digit, red LED, 0.56" High
Controls:		ZERO, UNITS, PRINT, OVER, and UNDER
Indicators		lb, kg, g, oz, ZERO, MOT, NEG, OVER, UNDER, and ACCEPT
Units		lb, kg, g, oz, or lb:oz
Power		115 VAC (230 VAC Optional);EMI/ESD protected Internal Rechargeable Battery (Optional
Construction		304 Stainless Steel
Warranty		Two Year Parts & Labor

* Not Legal for Trade

* within the 48 continental US States

Optional Accessories

more info

Doran EXOPT300 Bluetooth Internal Communications & USB Adapter

$209.00

Includes: Internal class 3 Bluetooth communication option and one class 1 Bluetooth receiver USB Adapter. Can be combined with USB Option (EXOPT304)

this option is Factory Installed and must be added with the scale

more info

Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit

$65.00

Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit Includes one NEMA4X connerctor to mate to the connector on the back of the scale. Installes on customer supplied cable..

Requires a RJ45 cable crimping tool

more info

Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D

$71.25

Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D connector - Scale to PC

Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit

RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205

more info

Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D

$71.25

Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D connector - Scale to Printer

Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit

more info

Doran EXOPT115 Remote Switch Configured for remote ZERO

$81.00

Doran EXOPT115 Remote Switch Configured for remote ZERO standard painted steel 3-1/2" x 2-5/8" x 1" includes a 10 foot Cable

more info

Doran EXOPT116 Remote Switch Configured for remote PRINT

$81.00

Doran EXOPT115 Remote Switch Configured for remote PRINT standard painted steel 3-1/2" x 2-5/8" x 1" includes a 10 foot Cable

more info

Doran EXOPT117 Remote Switch Configured for remote UNITS

$81.00

Doran EXOPT117 Remote Switch Configured for remote UNITS standard painted steel 3-1/2" x 2-5/8" x 1" includes a 10 foot Cable

more info

Doran LR350 Label Printer (PRT0350-C)

$540.00

The Doran LR350 barcode label printer offers outstanding performance, reliability and flexibility to meet the demands of todays fast paced label printing applications. Ideal for all non-washdown applications such as: packaging, production, warehousing, shipping and receiving printing needs.

Direct thermal print technology provides high quality labels time after time. Preloaded Doran label formats provide true plug and play setup for most labeling applications - custom label designs are also available.

Direct Thermal 203 dpi Resolution
68" Maximum Print Length
4.25" Maximum Print Width
Compatible with "Create a Label" for easy label design
Includes one roll of 4" x 5" labels
Label Gap Sensor
USB 2.0 PC Interface (drivers included)
RS-232 Scale Interface
2 MB User Storage
Heavy Duty ABS construction, suitable for Non-washdown applications
Windows PC for label design (Programmable via USB Port)
Optional Label Peeler

Doran Scale to be Used With the Printer: PC400, PC500, 4300, 7000XL, 7400, 8000XL, 2200, 2200B, 2200CW

Specifications
ModelLR350Print SpeedMediaInterfaceMemoryPowerEnvironmentPrinter DimensionsPrinter LanguageResident FontsBarcode Formats

2" - 4" IPS

Label roll O.D.: Maximum - 5", Core Diameter: 1" - 1.5"

DB-9 Serial port and USB 2.0

Standard: 4 MB / 8 MB SDRAM

100~240VAC, 50/60 Hz

Operation Temperature: 40° F to 104° F

Length: 8.58" Height: 6.53" Width: 6.61"

EZPL

11 resident alphanumeric fonts

Code 39, Code 93, Code 128 (subset A,B,C), UCC 128, UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8/13 (add on 2&5), Codebar, Post NET, EAN 128, DUN 14, MaxiCode, HIBC, Plessey, Random Weight, Telepen, FIM, RPS 128, PDF417 & Datamatrix Code, QR Code
