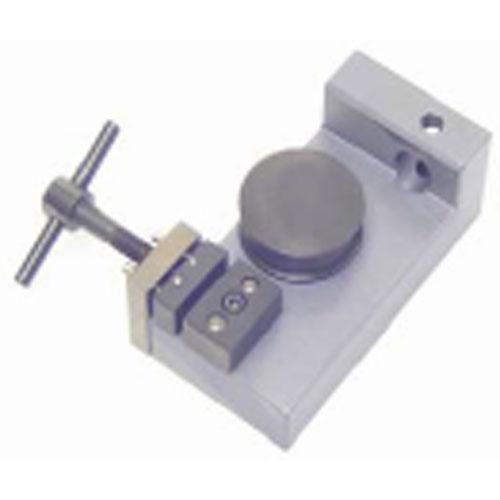

Chatillon 01/4622 - 5kN, Wire, Yarn And Thread Grip, 30mm x 12mm Cross-Cut Faces |
|
The Bollard grip is suitable for a wide range of samples such as fiber, yarn, thread, rope, string, and strapping tape. The grips are designed so that the sample can be wrapped around the bollard and clamped at one end, this helps reduce the sample suffering a jaw break and spreads the load around the bollard by introducing friction to the sample. Ideally it should be used with an extensometer to calculate true strain in the sample more ... |
Test Equipment >
Grips and Attachments >
Wire - Rope - Yarn - Tubing
|
|
Have Questions? Our Staff will be glad to help |
|
|
|
|
|
|
|
Features
The Bollard grip is suitable for a wide range of samples such as fiber, yarn, thread, rope, string, and strapping tape. The grips are designed so that the sample can be wrapped around the bollard and clamped at one end, this helps reduce the sample suffering a jaw break and spreads the load around the bollard by introducing friction to the sample. Ideally it should be used with an extensometer to calculate true strain in the sample
01/4622 |
Screw action grip with crosscut faces |
Jaw Size |
30mm x 12mm |
Maximum Sample Width |
8mm |
Maximum Sample Diameter |
5mm |
Jaw Opening |
5mm |
Maximum Force Rating |
5KN |
Fixing Type |
5/8 inch |
Weight |
800g |
Minimum Loadcell |
50N |
Width |
108mm |
Height |
120mm |
Depth |
40mm |
Bollard Diameter |
40mm |
Weight:
7.00 lb
|
|
