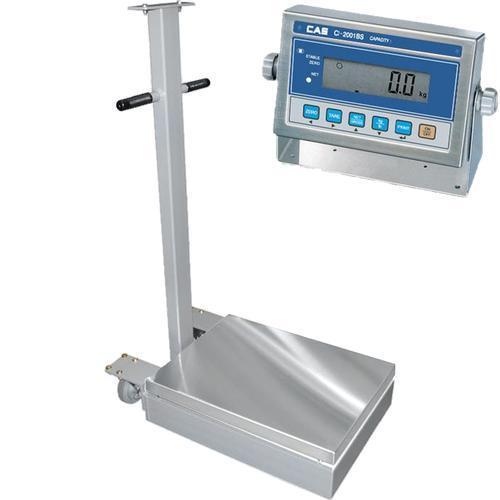

CAS TR2L-1500S-CI-2001BS Transit 2 Stainless Steel 24 x 30 Platform with CI-2001BS 1500 x 0.5 lb |
|
The CAS Transit 2 Series portable platform scale is built for mobile weighing applications. Inboard wheels are standard for point to point straight line mobility. The optional rear mount swivel casters makes maneuvering in tight confines easy. more ... |
Industrial Scales >
Bench Scales >
Bench Scales with Wheels
|
|
|
This Item Contains the following items
|
|
|
|
Features
The CAS Transit 2 Series portable platform scale is built for mobile weighing applications. Inboard wheels are standard for point to point straight line mobility. The optional rear mount swivel casters makes maneuvering in tight confines easy. The scale is available in painted mild steel and 304 stainless with 24” x 18” or 30” x 24” weighing surface. Available capacities are 500 lb, 1000 lb, or 1500 lb, making the Transit 2 Series a versatile scale.
The Transit 2 can be paired with a simple weight display mounted to the top of the column or customized to meet a unique application requirement. the mounting surface on the top of the column can be enkarged to accommodate a weight display and printer, or even a counting scale.
Features and Specifications
- NTEP COC: NON-NTEP
- Type: Portable single point weighing platform
- Scale Capacity: 100 - 1,500 lb
- Platform Height: 6 9/16” nominal
- Available Sizes: 24” x 18” and 30” x 24” - Custom sizes upon request
- Weighbridge: Heavy duty structural or 304 stainless steel (stainless version) channel base frame and structural tube spider
Standard: (4) fixed, in-board mounted 5” heavy duty wheels Optional: (2) fixed in-board and (2) rear mounted swivel wheels
- Platter: 304 Stainless steel
- Column: 48” tall structural tube column with handle grips and top plate for indicator
- Finish: Carbon: Alkyd Enamel Stainless: All exposed surfaces are media blasted to a clean, consistent appearance
|
|
Other CAS Transit 2 Portable Platform with CI-2001B or CI-2001BS Indicator
TR2S-500C-CI-2001B Transit 2 Mild Steel 18 x 24 Platform with CI-2001B 500 x 0.1 lb
$2,920.00
|
TR2S-1000C-CI-2001B Transit 2 Mild Steel 18 x 24 Platform with CI-2001B 1000 x 0.2 lb
$2,920.00
|
TR2S-1500C-CI-2001B Transit 2 Mild Steel 18 x 24 Platform with CI-2001B 1500 x 0.5 lb
$3,335.00
|
TR2L-500C-CI-2001B Transit 2 Mild Steel 24 x 30 Platform with CI-2001B 500 x 0.1 lb
$3,335.00
|
TR2L-1000C-CI-2001B Transit 2 Mild Steel 24 x 30 Platform with CI-2001B 1000 x 0.2 lb
$3,335.00
|
TR2S-500S-CI-2001BS Transit 2 Stainless Steel 18 x 24 Platform with CI-2001BS 500 x 0.1 lb
$5,444.00
|
TR2S-1000S-CI-2001BS Transit 2 Stainless Steel 18 x 24 Platform with CI-2001BS 1000 x 0.2 lb
$5,444.00
|
TR2S-1500S-CI-2001BS Transit 2 Stainless Steel 18 x 24 Platform with CI-2001BS 1500 x 0.5 lb
$5,694.00
|
TR2L-500S-CI-2001BS Transit 2 Stainless Steel 24 x 30 Platform with CI-2001BS 500 x 0.1 lb
$6,104.00
|
TR2L-1000S-CI-2001BS Transit 2 Stainless Steel 24 x 30 Platform with CI-2001BS 1000 x 0.2 lb
$6,104.00
|
TR2L-1500S-CI-2001BS Transit 2 Stainless Steel 24 x 30 Platform with CI-2001BS 1500 x 0.5 lb
$6,104.00
You are viewing this product
|
|
Specifications
Mild Steel Model with CAS CI-2001B Indicator |
TR2S-500C-CI-2001B |
TR2S-1000C-CI-2001B |
TR2S-1500C-CI-2001B |
TR2L-500C-CI-2001B |
TR2L-1000C-CI-2001B |
TR2L-1500C-CI-2001B |
Stainless Steel Model with CAS CI-2001BS Indicator |
TR2S-500S-CI-2001BS |
TR2S-1000S-CI-2001BS |
TR2S-1500S-CI-2001BS |
TR2L-500S-CI-2001BS |
TR2L-1000S-CI-2001BS |
TR2L-1500S-CI-2001BS |
Capacity x Readability |
500 x 0.1 lb |
1000 x 0.2 lb |
1500 x 0.5 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
1500 x 0.5 lb |
Platform Size |
18" x 24" x 6" |
24" x 30" x 6" |
Wheels |
In-board 5" Diameter Fixed Wheels Rear swivel casters w/locks |
Column |
48" Tall Structural Tube Column with Handle Grips & Indicator Plate |
Country of Origin |
USA |
Type |
Portable single point weighing platform |
Weighbridge |
Heavy duty structural or 304 stainless steel (stainless version) channel base frame and structural tube spider
Standard: (4) fixed, in-board mounted 5 inch heavy duty wheels Optional: (2) fixed in-board and (2) rear mounted swivel wheels |
Platter |
304 Stainless steel |
Finish |
Carbon: Alkyd Enamel Stainless: All exposed surfaces are media blasted to a clean, consistent appearance |
Warranty |
2-Years on weighbridge steel structure 1-Year on load cells |
|
|
|
* within the 48 continental US States
|
Optional Accessories
more info
|
CAS CI-2001A Indicator with Bright LED Display, Legal for Trade
The CI-2001A Indicator with RS-232. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright red display, the CI-2001A Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
Input Sensitivity |
2 V/D(H- 44, OIML) 0.5 V/D(Non H - 44, OIML) |
Zero Adjust Range |
0.05~5mV |
Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
A/D Conversion Speed |
10 times/sec |
A/D Display Resolution |
5,000dd(H- 44, OIML) 30,000dd(Non H - 44, OIML) |
A/D Internal Resolution |
Approximately 200,000 Counts |
Weight Display |
6 Digit LED (H=0.55 ) |
6 Digit LCD (H=1) |
6 Digit LED (H=1) |
6 Digit LCD (H=1) |
Operating Temperature |
-10 C~+40 C |
Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|
CAS CI-2001B Indicator with LCD Display and Backlight, Legal for Trade
The CI-2001B Indicator with RS-232. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright LCD display, the CI-2001B Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
Input Sensitivity |
2 V/D(H- 44, OIML) 0.5 V/D(Non H - 44, OIML) |
Zero Adjust Range |
0.05~5mV |
Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
A/D Conversion Speed |
10 times/sec |
A/D Display Resolution |
5,000dd(H- 44, OIML) 30,000dd(Non H - 44, OIML) |
A/D Internal Resolution |
Approximately 200,000 Counts |
Weight Display |
6 Digit LED (H=0.55 ) |
6 Digit LCD (H=1) |
6 Digit LED (H=1) |
6 Digit LCD (H=1) |
Operating Temperature |
-10 C~+40 C |
Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|
CAS CI-2001AS Stainless Steel Indicator with Bright LED Display, Legal for Trade
The CI-2001AS Indicator, with stainless steel enclosure. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright red display, the CI-2001AS Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Stainless Steel
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
Input Sensitivity |
2 V/D(H- 44, OIML) 0.5 V/D(Non H - 44, OIML) |
Zero Adjust Range |
0.05~5mV |
Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
A/D Conversion Speed |
10 times/sec |
A/D Display Resolution |
5,000dd(H- 44, OIML) 30,000dd(Non H - 44, OIML) |
A/D Internal Resolution |
Approximately 200,000 Counts |
Weight Display |
6 Digit LED (H=0.55 ) |
6 Digit LCD (H=1) |
6 Digit LED (H=1) |
6 Digit LCD (H=1) |
Operating Temperature |
-10 C~+40 C |
Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|
CAS CI-2001BS Stainless Steel Indicator with LCD Display and Backlight, Legal for Trade
The CI-2001BS Indicator, with stainless steel enclosure. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright LCD display, the CI-2001BS Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Stainless Steel
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
Input Sensitivity |
2 V/D(H- 44, OIML) 0.5 V/D(Non H - 44, OIML) |
Zero Adjust Range |
0.05~5mV |
Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
A/D Conversion Speed |
10 times/sec |
A/D Display Resolution |
5,000dd(H- 44, OIML) 30,000dd(Non H - 44, OIML) |
A/D Internal Resolution |
Approximately 200,000 Counts |
Weight Display |
6 Digit LED (H=0.55 ) |
6 Digit LCD (H=1) |
6 Digit LED (H=1) |
6 Digit LCD (H=1) |
Operating Temperature |
-10 C~+40 C |
Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
|
|
|
|
|
