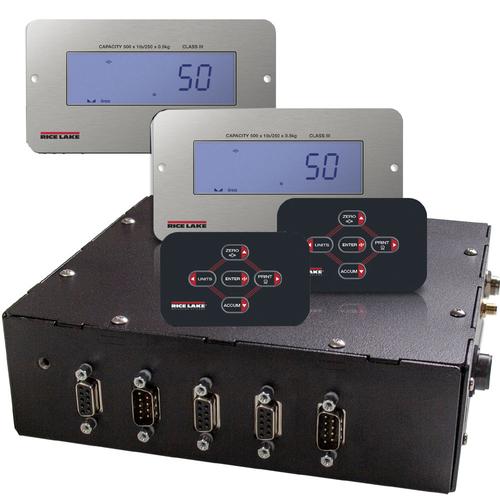

Rice Lake 207287 Tracer AV2,Dual Display Dual LCD Panel Mount Display,Dual Keypad for Baggage Scale |
|
| Improve Safety and Capture Lost Revenue with Tracer AV2 Tracer AV2 sends an alert to the operator display when preset weight limits are exceeded on the baggage scale. Tracer AV2 systems have a five-button keypad and a durable, stainless steel, LCD display more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
Improve Safety and Capture Lost Revenue with Tracer AV2
Tracer AV2 sends an alert to the operator display when preset weight limits are exceeded on the baggage scale. Tracer AV2 systems have a five-button keypad and a durable, stainless steel, LCD display
Versatile Connectivity
With a serial port, Ethernet port, Wi-Fi and Bluetooth® connectivity available, weight data from Tracer AV2 can be easily transferred to a wide range of peripheral equipment
Complete Weighing System
Rice Lake offers a variety of baggage scales to accurately weigh bags of any size and fit a variety of spaces. All Rice Lake baggage scales easily pair with Tracer AV2, even when the scales are customized to fit existing airport counters.
- Customer display (panel mount)
- CPU module
- Supports two displays (customer/agent)
- Five-button keypad for ticket agent
- Accumulation function
- Display indicates overweight bag
Systems to Fit Your Needs
Tracer AV2 systems are Legal for Trade and available in three different configurations to fit the layout of a variety of baggage check-in counters.
Systems to Fit Your Needs
Tracer AV2 systems are Legal for Trade and available in three different configurations to fit the layout of a variety of baggage check-in counters.
Weight:
6.00 lb
|
2 Year Manufacture Warranty
|
Other Rice Lake Rice Lake Tracer AV2 Baggage Scales
|
Specifications
Single Configuration
The single configuration is ideal for use at single check-in counters.
Single configuration, shown with a BenchMark HD-2 aviation scale, a three-sided kickplate for one scale.
Two single configurations, shown with a BenchMark HD-3 aviation scale, a front and back kickplate for two scales.
Single/Double Configuration
The single/double configuration provides more visibility to customers at luggage counters.
Double/Double Configuration
The double/double configuration is best for counters with two agents.
Double/double configuration shown with a BenchMark HD-1 aviation scale, a three-sided kickplate for one scale.
| Model |
202532 |
202531 |
207287 |
204452 |
204451 |
| Display |
Single LCD |
Dual LCD |
Dual LCD |
Single LCD |
Dual LCD |
| Mount Display type |
Panel |
Panel |
Panel |
External |
External |
| Keypad |
Single |
Single |
Dual |
Dual |
Single |
| Power |
115 to 230 VAC to CPU module 50/60 Hz |
| Power Consumption |
6 W |
| Excitation Voltage |
5 VDC, 8 x 350 ohm load cells |
| Analog Signal Input Range |
-0.5 mV/V to 4.5 mV/V |
| Analog Signal Sensitivity |
1 µV/graduation recommended |
| A/D Sample Rate |
6.25 to 120 Hz, software selectable |
| Resolution |
Internal: 8,000,000 counts
Display: 1,000,000 |
| System Linearity |
Within 0.01% full scale |
| Communication |
Ethernet TCP/IP - USB Device |
| Annunciators |
lb/kg |
| Display |
Stainless steel, panel mounted, seven-digit LCD display, 0.8 in (20 mm) tall digits |
| Keys/Buttons |
Zero, Units, Accum, Print, Enter |
| Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Dimensions |
Panel Mount Display
7.5 × 4.0 × 1.49 in
(19.05 × 10.16 × 3.79 cm)
External Mount Display
7.5 × 3.9 × 1.44 in
(19.05 × 9.91 × 3.66 cm)

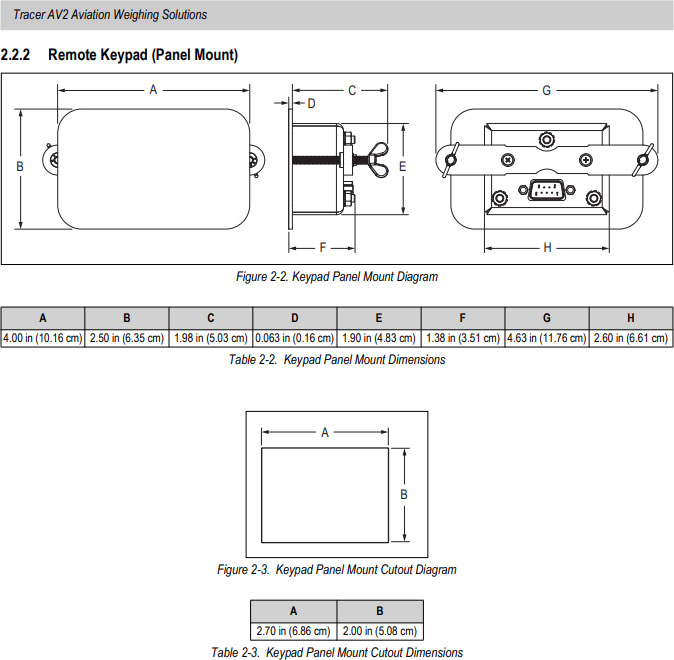

Panel Mount Keypad:
4.0 × 2.5 × 2.1 in
(10.16 × 6.35 × 5.33 cm)
CPU Enclosure:
7.5 × 7.0 × 2.25 in
without mounting feet
11.13 × 7.0 × 3.06 in
with mounting feet
|
| Weight |
5.25 lb |
| Warranty |
Two-year limited |
| Approvals |
NTEP CC 21-015, Class III/IIIL, 10,000d
Measurement Canada AM-6168C
cULus Listed |
|
|
|
|
|
| |
|
|
|
|
|
