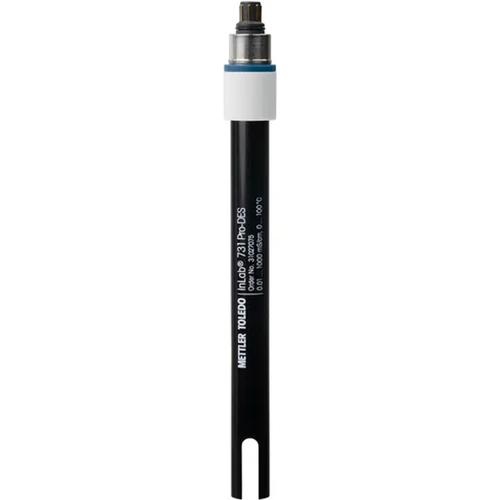

Mettler Toledo® 31027075 InLab 731 Pro-DES Conductivity Sensor |
|
| >A 4 graphite poles conductivity electrode with integrated temperature sensor. Designed for general applications like standard and high conductivity samples. more ... |
|
Scales >
pH Meters >
Electrodes
|
|
|
|
|
|
Features
METTLER TOLEDO NineFocus Conductivity Sensor InLab 731 Pro-DES - 31027075
A 4 graphite poles conductivity electrode with integrated temperature sensor. Designed for general applications like standard and high conductivity samples.
A combination conductivity electrode designed for samples measuring from 0.01 – 1000 mS/cm, as part of our Diagnosable, Efficient, and Sustainable InLab DES digital electrode line.
- For use with METTLER TOLEDO NineFocus. Connection cables and signal bridges may be required.
- Integrated temperature probes
- Diagnosable, efficient, and sustainable (DES) electrodes capture and save calibration data, and the diagnostic system’s preventive maintenance feature maximizes the sensor’s lifespan and prevents premature discard.
- Capture electrode calibration and results with LabX software, designed for advanced data management and 21CFR part 11 regulatory compliance.
Accessories & Care
- Store dry
- 1413 µS/cm, one-time use sachets (51302049)
- 12.88 mS/cm, one-time use sachets (51302050)
Weight:
1.00 lb
|
|
Other Mettler Toledo InLab Expert Pro-DES Sensors for NineFocus
|
Specifications
| Model |
31027075
Conductivity |
31027076
Conductivity |
30786580
DO |
| Measuring range |
0.01 – 1000 mS/cm |
0.001 – 500 µS/cm |
0 – 500%, 0 – 50 mg/L |
| Temperature range |
0 to 100 oC |
0 to 100 oC |
0 to 50 oC |
| Connector |
Mini-DIN |
Mini-DIN |
- |
| Cell type |
4 graphite poles |
2 steel poles |
- |
| Cell Constant |
0.57 cm-1 |
0.105 cm-1 |
- |
| Shaft Material |
Epoxy |
Stainless Steel |
PC/ABS |
| Sensor type |
Combined electrode/td>
| Combined electrode |
Optical |
| Shaft length |
120 mm |
120 mm |
65 mm |
| Shaft Diameter |
12 mm |
12 mm |
12 mm |
| Parameter |
Conductivity |
Conductivity |
DO |
| Temperature probe |
NTC 30 kΩ |
NTC 30 kΩ |
NTC 30 kΩ |
| For Portable Meter |
No |
No |
No |
| Low Maintenance |
Yes |
Yes |
- |
| Signal type |
Digital |
Digital |
Digital |
| Sample |
General purpose |
Low-ion strength (pure water) |
General purpose |
| Cable included |
No |
No |
No |
| Compatible Meter |
NineFocus |
NineFocus |
NineFocus |
| Connector on Sensor |
To Signal Bridge (sVP8) |
To Signal Bridge (sVP8) |
To Signal Bridge (sVP8) |
| DES® - Sensor Diagnostics |
Yes |
Yes |
Yes |
| Long Cable |
No |
No |
No |
| Presence of Harsh Chemicals |
No |
No |
No |
| Recommended Meter Models |
NF2300,NF3000,NF2340 |
NF2300,NF3000,NF2340 |
NF4000,NF2340 |
| Recommended Meters |
NineFocus |
NineFocus |
NineFocus |
| Sensor characteristics |
Temperature probe,Premium Sensor,Analogue,Mechanically robust |
Temperature probe,Premium Sensor,Analogue,Mechanically robust |
Automatic Sensor Recognition,Temperature probe,Calibration History Stored,Premium Sensor,Optical,Digital sensor,IP67 |
| Sample Conductivity |
>100 uS/cm |
>100 uS/cm |
- |
| Unique Sensor Purposee |
High Conductivity |
Low Conductivity |
Optical Best Choice |
|
|
|
|
* within the 48 continental US States
|
|
