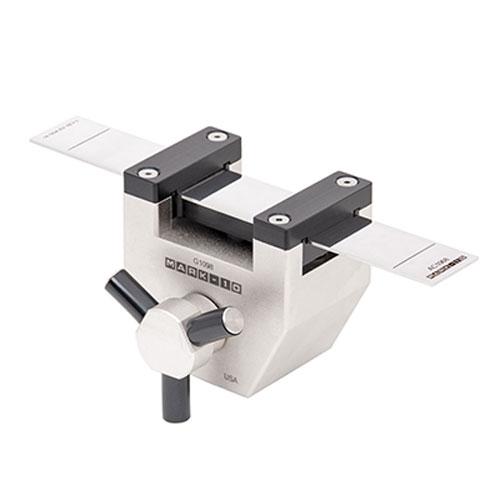

Mark-10 G1098 ASTM D6195 Loop Tack Fixture |
|
| Designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included - suggested model: G1008). The test strip may be indexed in three positions, allowing for three tests to be performed between cleaning cycles. The strip is secured and released by a lever-operated clamp. An additional set of three test strips is available. more ... |
|
Test Equipment >
Grips and Attachments >
Packaging - Peel - Friction
|
|
|
|
|
|
Features
Designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included - suggested model: G1008). The test strip may be indexed in three positions, allowing for three tests to be performed between cleaning cycles. The strip is secured and released by a lever-operated clamp. An additional set of three test strips is available.
SPECIFICATIONS
Capacity
lbF [N] |
Weight*
lb [kg] |
Test strip material |
| 100 [500] |
1.10 [0.5] |
T304 SS, per ASTM A666 |
* including one test strip
Weight:
1.00 lb
|
|
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Mark-10 G1008 Film & Paper Grips, 1 in, 10-32F
These grips are designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 100 lb of force. The grips are available in four sizes: 1, 3, 5, and 7. Use them with a force gauge and a test stand to create a complete testing system.
| G1008 |
200 [1000] |
0.31 [0.14] |
1.60 [40.6] |
2.50 [63.5] |
1.00 [25.4] |
0 - 0.15
[0 - 3.8] |
| G1015-1 |
0.57 [0.26] |
3.00 [76.2] |
3.00 [76.2] |
1.90 [48.3] |
0 - 0.50
[0 - 12.7] |
| G1015-2 |
0.67 [0.30] |
5.00 [127.0] |
| G1015-3 |
0.77 [0.35] |
7.00 [177.8] |
|
|
|
|
|
|
|
|
