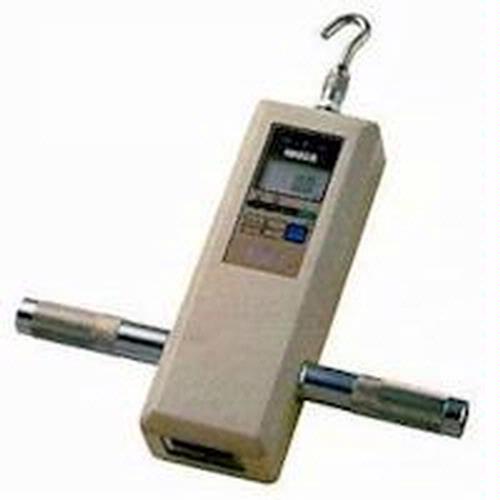

Imada DPXH-220 Force Gauge, 100 kg x 0.1 kg |
|
The DPXH series force gauges combine a rugged metal housing and heavy-duty load cell with state of the art electronics, delivering an outstanding accuracy of ±0.2% F.S. over the entire range more ... |
|
|
Have Questions? Our Staff will be glad to help |
|
|
|
|
|
|
|
Features
Imada DPXH high capacity digital force gauges with 256 data memory for recall and computer download. Programable high/low setpoints. Pounds, kilograms or newtons selectable. RS232, digimatic and analog outputs. 100 x 0.1 kg
Accuracy ±0.2% F.S. ±1 digit
Programmable high/low setpoints with color-coded indicators for quick go/no go testing
256 data memory for recall and computer download
External switch display hold and clear
Pounds, kilograms or newtons are push-button selectable
lb, kg and N units are push-button selectable
RS-232, Digimatic and Analog outputs
Runs on internal NiCad batteries or AC adaptor
Real time and peak mode (selectable)
Tare function
Full set of accessories, AC charger/adapter and carrying case
Overload capacity 200% F.S.
Overload alarm, and low battery indicator
The DPXH series force gauges combine a rugged metal housing and heavy-duty load cell with state of the art electronics, delivering an outstanding accuracy of ±0.2% F.S. over the entire range.
Use the real time mode to display load transients, or the peak mode to retain the peak force. The DPXH offers programmable high/low setpoints for go/no-go testing with color coded indicators. Store up to 256 values into memory, which can be displayed or transmitted using the Digimatic or serial output ports. Selectable measuring units of lb, kg or Newtons.
Powered by internal NiCad batteries, the DPXH gauges come complete with hard carrying case, AC adapter/charger, tension hook, four compression adapters, extension shaft and knurled steel handles.
- Accuracy: ±0.2% ±1 LSD
- Selectable units: pounds, kilograms or newtons
- Overload Capacity: 200% of F.S. Display flashes beyond 110% of F.S.
- Display Update: 20 times/second
- Sampling Rate: 1000 times/second
- Power: Rechargeable NiCad battery pack or AC adaptor
- Low Battery Indicator: Display flashes BAT when battery is low
- CPU: 8-bit C-MOS
- A/D Converter: 16-bit delta sigma system
- Memory: Non-volative, recall up to 256 loads
- Peak Memory: Recalls peak tension and compression
- Setpoints: Programmable high/low setpoints with color-coded indicator
- Outputs: RS-232, Mitutoyo Digimatic and ±2 VDC analog output
- Operating Temperature: 32° to 100°F (0° to 40°C)
Model |
Pounds (ounces) |
Kilograms (grams) |
Newtons |
Price |
Capacity x Resolution |
DPXH-220 |
220.5 x 0.1 lb |
100 x 0.1 kg |
980 x 1 N |
$1675 |
DPXH-440 |
441 x 0.1 lb |
200 x 0.1 kg |
1960 x 1 N |
$1675 |
DPXH-1100 |
1102 x 1 lb |
500 x 0.1 kg |
4900 x 1 N |
$2295 |
Weight:
10.00 lb
|
|
