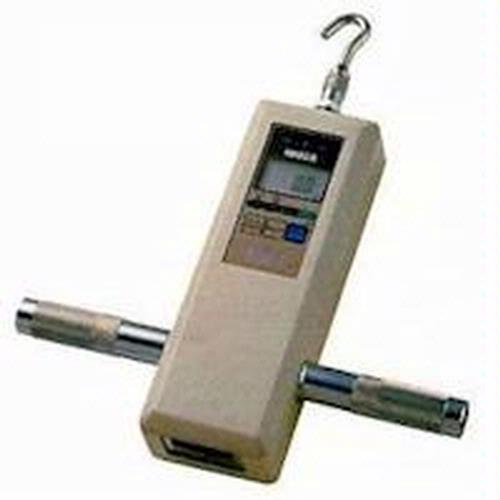

Imada DPXH-440 Force Gauge, 200 kg x 0.1 kg

The DPXH series force gauges combine a rugged metal housing and heavy-duty load cell with state of the art electronics, delivering an outstanding accuracy of ±0.2% F.S. over the entire range.

Use the real time mode to display load transients, or the peak mode to retain the peak force.  The DPXH offers programmable high/low setpoints for go/no-go testing with color coded indicators.  Store up to 256 values into memory, which can be displayed or transmitted using the Digimatic or serial output ports.  Selectable measuring units of lb, kg or Newtons.

Powered by internal NiCad batteries, the DPXH gauges come complete with hard carrying case, AC adapter/charger, tension hook, four compression adapters, extension shaft and knurled steel handles.

• Accuracy: ±0.2% ±1 LSD
• Selectable units: pounds, kilograms or newtons
• Overload Capacity: 200% of F.S. Display flashes beyond 110% of F.S.
• Display Update: 20 times/second
• Sampling Rate: 1000 times/second
• Power: Rechargeable NiCad battery pack or AC adaptor
• Low Battery Indicator: Display flashes BAT when battery is low
• CPU: 8-bit C-MOS
• A/D Converter: 16-bit delta sigma system
• Memory: Non-volative, recall up to 256 loads
• Peak Memory: Recalls peak tension and compression
• Setpoints: Programmable high/low setpoints with color-coded indicator
• Outputs: RS-232, Mitutoyo Digimatic and ±2 VDC analog output
• Operating Temperature: 32° to 100°F (0° to 40°C)
