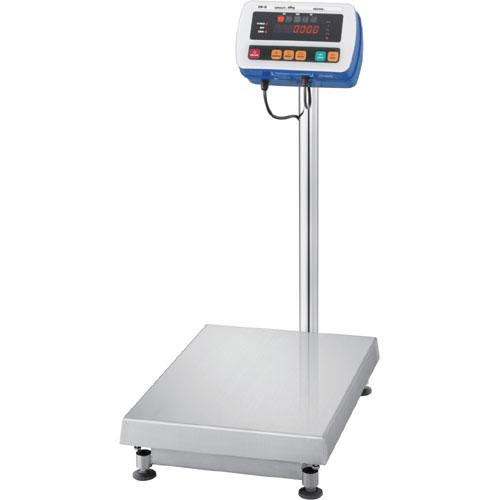

AND Weighing SW-6KS High Pressure Washdown Scale 13 lb x 0.001 lb |
|
| The SW Super Washdown scales from A&D are designed to withstand the most demanding process conditions. From dusty to wet environments, including food processing plants where cleanliness and sanitation are of critical importance, the SW scales are built to endure the extreme conditions of high pressure and temperature water as specifi ed by the IP69K standard (1450 psi and 175°F). more ... |
|
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
|
|
Features
The SW Super Washdown scales from A&D are designed to withstand the most demanding process conditions. From dusty to wet environments, including food processing plants where cleanliness and sanitation are of critical importance, the SW scales are built to endure the extreme conditions of high pressure and temperature water as specifi ed by the IP69K standard (1450 psi and 175°F).
- IP69K - the highest level of dust and water-proofi ng
- Ultimate protection against the effects of condensation
- Streamlined construction for easy cleaning of food processing residues
- Stainless steel weighing pan, frame, and hermetically sealed load cell*
- Rugged and adjustable indicator bracket
- Capacitive keys for light touch operation
- Bright, multicolored LED display with 5-level comparator lamps
- Five Position Comparator Function
- Counting Function
- Desktop/wall-mount bracket available
- Optional rechargeable battery, RS-232C + comparator, and RS-422 / 485 available
- 1 Year Warranty
| Model |
SW-6KS |
SW-15KS |
SW-15KM |
SW-30KM |
SW-60KM |
SW-150KM |
SW-60KL |
SW-150KL |
| Capacity X Readability |
13 lb x 0.001 lb |
33 lb x 0.002 lb |
33 lb x 0.002 lb |
66 lb x 0.005 lb |
130 lb x 0.01 lb |
330 lb x 0.02 lb |
130 lb x 0.01 lb |
330 lb x 0.02 lb |
| 6 kg x 1 g |
15 kg x 2 g |
15 kg x 2 g |
30 kg x 5 g |
60 kg x 10 g |
150 kg x 20 g |
60 kg x 10g |
150 kg x 20 g |
| Repeatability (Std. deviation) |
0.002 lb |
0.005 lb |
0.005 lb |
0.01 lb |
0.02 lb |
0.05 lb |
0.02 lb |
0.05 lb |
| Linearity |
±0.005 lb |
±0.01 lb |
±0.01 lb |
±0.02 lb |
±0.05 lb |
±0.1 kg |
±0.05 lb |
±0.1 lb |
| Sensitivity drift |
±20 ppm / °C (5°C to 35°C / 41°F to 95°F) |
| No. of samples |
5 (can be changed to 10, 20, 50 or 100) pieces |
| Max. count |
120,000 pcs |
150,000 pcs |
150,000 pcs |
150,000 pcs |
120,000 pcs |
150,000 pcs |
120,000 pcs |
150,000 pcs |
| Min. unit weight |
0.05 g |
0.1 g |
0.1 g |
0.2 g |
0.5 g |
0.1 g |
0.5 g |
0.1 g |
| Units of Measure |
lb, oz, kg, g, lb-oz |
| Display |
7 segment LED display (character height 14.6 mm) Comparator light, Red/Yellow/Green/Yellow/Red LED |
| Display update |
10 times per second |
| Operating temp. |
-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non-condensing) |
| Power supply |
AC main (100V~240V) or SLA Battery (option), Approximately 90 hours operation |
| Weighing pan size |
250 x 250 mm
9.8 x 9.8 in. |
300 x 380 mm
11.8 x 15.0 in. |
390 x 530 mm
15.4 x 20.9 in. |
| Dimensions |
250(W) x 480(D) x 353.5(H) mm
9.8(W) x 18.9(D) x 13.9(H) in. |
390(W) x 751(D) x 722.5(H) mm
11.8(W) x 23.7(D) x 28.4(H) in. |
390(W) x 751(D) x 722.5(H) mm
15.4(W) x 29.6(D) x 28.4(H) in. |
| Weight (approximately) |
7.7 kg / 17.0 lb |
13.0 kg / 28.7 lb |
16.2 kg / 35.7 lb |
| Shipping Weight |
11 kg / 25 lb |
17.4 kg / 39 lb |
22.1 kg / 49 lb |
| Calibration weight |
6 kg
12 lb |
15 kg
30 lb |
15 kg
30 lb |
30 kg
60 lb |
60 kg
120 lb |
150 kg
300 lb |
60 kg
120 lb |
150 kg
300 lb |
Weight:
17.00 lb
|
|
