Ohaus RD30LSW Ranger Washdown Scale, 30000 g x 1 g |
|
| Four digital industrial scales to choose from in capacities from 3 to 60 kilograms with maximum 0.0002 precision. RS-232 standard. Weighs in both pounds and kilograms more ... |
|
Scales >
Food Scales >
Food Service Washdown
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Optional Warranty
|
Features

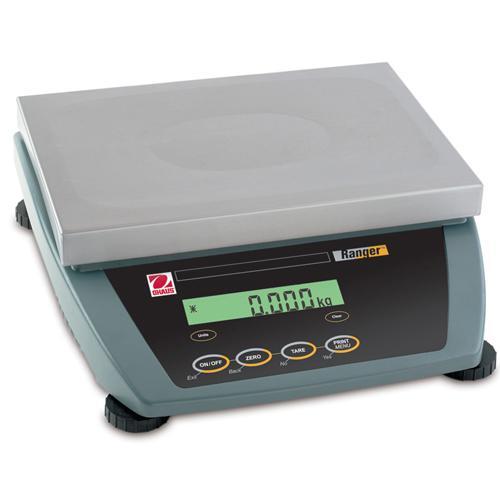

The Ohaus Washdown Ranger digital scale features high-precision measurement
technology is encased in a durable, cast aluminum housing -
ideal for industrial applications. The Rangers high internal
resolution and fast microprocessor produce results which are
stable and accurate. Available in two platform sizes and a
full range of capacities to meet your requirements for any
industrial bench weighing application. The Rangers simple
menu operation and large backlit LCD display make Ranger easy
to use in demanding industrial environments.
Features
- Wide range of platforms and capacities from 6 pounds to
120 lb kg
- 1 part in 300,000 internal resolution
- Features g, kg, lb and oz units
- NTEP Legal for Trade
- RS-232 data interface standard, second RS232 as a factory
option
- TAL Wedge software available for easy PC integration
- RS232
bi-directional interface, backlit display
- Gross / Tare
/ Net function
- Auto off timer
- Internal AC power supply
- Leveling feet,
- Leveling bubble
- 4-button membrane keypad
- Rugged construction
- Auto zero
tracking
- Retain zero data during power off
- User selectable
gradation
- Fill application option
- User selectable
averaging level sensitivity
- Primary and secondary
configurable RS232 port settings with programmable output
header
- Software LFT lockout switch.
- 2 year Ohaus warranty
Ohaus Washdown Ranger Digital scales - Specs
| Model |
RD3RSW |
RD6RSW |
RD12LSW |
RD30LSW |
RD60LSW |
 |
 |
 |
 |
 |
| Default Capacity x Readability |
6.6138 x 0.0002 lb
105.822 x 0.002 oz
3 x 0.0001 kg
3000 x 0.1 g
0.003 x 0.000001 t
|
13.2275 x 0.0005 lb
211.640 x 0.005 oz
6 x 0.0002 kg
6,000 x 0.2 g
0.006 x 0.000001 t |
26.456 x 0.001 lb
423.30 x 0.02 oz
12 x 0.0005 kg
12,000 x 0.5 g
0.012 x 0.000001 t |
66.138 x 0.002 lb
1,058.20 x 0.02 oz
30 x 0.001 kg
30,000 x 1 g
0.03 x 0.000001 t |
132.275 x 0.005 lb
2116.50 x 0.05 oz
60 x 0.002 kg
60,000 x 2 g
0.06 x 0.000002 t |
| Price |
 |
|
|
|
|
Price
Scale with NiMH Internal Battery |
RD3RSW/1 |
RD6RSW/1 |
RD12LSW/1 |
RD30LSW/1 |
RD60LSW/1 |
|
|
|
|
| |
| Platform Size (W x D) |
9.5 x 8 in / 24 x 20 cm |
14 x 9.5 in / 35 x 24 cm |
| Safe Overload Capacity |
150% of capacity |
| Construction |
Stainless steel weighing pan / Painted cast-aluminum housing |
| Protection |
IP43 for non-SW units, NEMA 4/IP65 for SW units |
| Weighing Units / Modes |
lb, oz, g, kg / Weighing, Dynamic Weighing |
| Display |
0.63 inch / 16 mm digit height (backlit LCD) |
| Keyboard |
Six button membrane switch |
| Stabilization Time |
< 2 seconds |
| Auto Zero Tracking |
0.5, 1, 2, 5, 10d, OFF |
| Power |
Internal AC adapter, rechargeable NiHM battery optional |
| Calibration |
External span, 20 - 100% |
| Operating Temperature |
14° F to 104° F / - 10° C to 40° C |
| Net (Shipping) Weight |
12 lb / 5.1 kg (15 lb / 6.6 kg |
20 lb / 8.9 kg (25 lb / 11.1 kg) |
| Scale Dimensions(W x D x H) |
10.5 x 13.2 x 4 in / 26.5 x 33.5 x 10 cm |
14.2 x 14.6 x 4.5 in / 36 x 37 x 11.5 cm |
| Shipping Dimensions (W x D x H) |
16.5 x 19 x 10 in / 42 x 48 x 25 cm |
20 x 20.5 x 10.5 in / 52 x 53 x 27 cm |
Weight:
15.00 lb
|
2 Year Manufacture Warranty
|
Other Ohaus Ranger Washdown Bench Scales
|
|
| |
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus SW12W TAL Win Wedge Software (80850080)
TAL Software Win Wedge V1.2 for Ohaus balances
|
|
more info
|
Ohaus 80850000 Security Device (76288-01)
Security Device for Ohaus Ranger Scales
|
|
more info
|

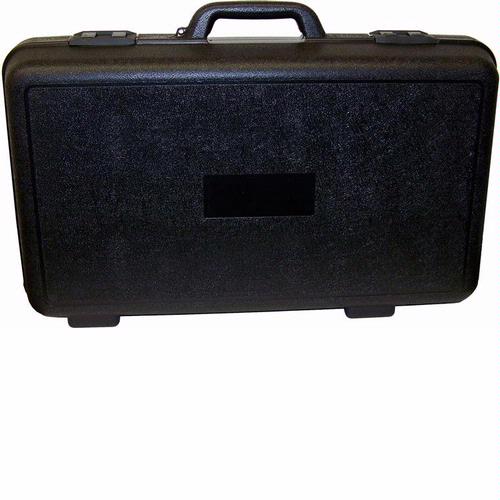

Ohaus 80850083 Carrying Case (Small)
small carrying case for Ohaus Ranger scales
|
|
more info
|
Ohaus 80850083 Carrying Case (Small)
small carrying case for Ohaus Ranger scales
|
|
more info
|
Ohaus 80850084 Carrying Case (Large)
Carrying Case for Ohaus Trooper scales
|
|
more info
|
Ohaus STP-103 Palm-Sized Thermal Printer
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
|
|
more info
|
Ohaus SF40A Portable Dot-Matrix Impact Printer
OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
- Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
- Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
- Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
|
|
|
|
|
|
|
|
|
