Ohaus RD60LSW/1 Ranger Washdown Scale With Internal NiMH Battery, 60000 g x 2 g |
|
| Four digital industrial scales to choose from in capacities from 3 to 60 kilograms with maximum 0.0002 precision. RS-232 standard. Weighs in both pounds and kilograms more ... |
|
Scales >
Food Scales >
Food Service Washdown
|
|
|
|
|
|
Optional Warranty
|
Features

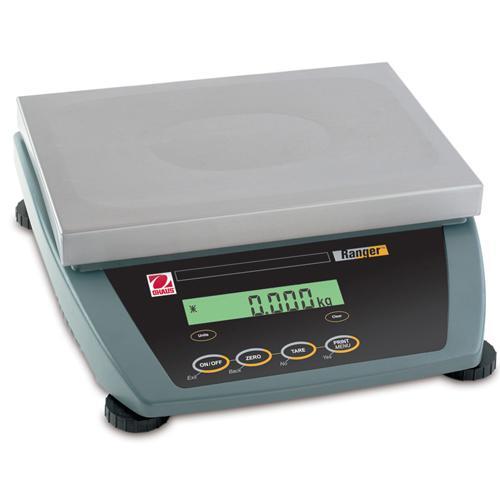

The Ohaus Washdown Ranger digital scale features high-precision measurement
technology is encased in a durable, cast aluminum housing -
ideal for industrial applications. The Rangers high internal
resolution and fast microprocessor produce results which are
stable and accurate. Available in two platform sizes and a
full range of capacities to meet your requirements for any
industrial bench weighing application. The Rangers simple
menu operation and large backlit LCD display make Ranger easy
to use in demanding industrial environments.
Features
- Wide range of platforms and capacities from 6 pounds to
120 lb kg
- 1 part in 300,000 internal resolution
- Features g, kg, lb and oz units
- NTEP Legal for Trade
- RS-232 data interface standard, second RS232 as a factory
option
- TAL Wedge software available for easy PC integration
- RS232
bi-directional interface, backlit display
- Gross / Tare
/ Net function
- Auto off timer
- Internal AC power supply
- Leveling feet,
- Leveling bubble
- 4-button membrane keypad
- Rugged construction
- Auto zero
tracking
- Retain zero data during power off
- User selectable
gradation
- Fill application option
- User selectable
averaging level sensitivity
- Primary and secondary
configurable RS232 port settings with programmable output
header
- Software LFT lockout switch.
- 2 year Ohaus warranty
Ohaus Washdown Ranger Digital scales - Specs
| Model |
RD3RSW |
RD6RSW |
RD12LSW |
RD30LSW |
RD60LSW |
 |
 |
 |
 |
 |
| Default Capacity x Readability |
6.6138 x 0.0002 lb
105.822 x 0.002 oz
3 x 0.0001 kg
3000 x 0.1 g
0.003 x 0.000001 t
|
13.2275 x 0.0005 lb
211.640 x 0.005 oz
6 x 0.0002 kg
6,000 x 0.2 g
0.006 x 0.000001 t |
26.456 x 0.001 lb
423.30 x 0.02 oz
12 x 0.0005 kg
12,000 x 0.5 g
0.012 x 0.000001 t |
66.138 x 0.002 lb
1,058.20 x 0.02 oz
30 x 0.001 kg
30,000 x 1 g
0.03 x 0.000001 t |
132.275 x 0.005 lb
2116.50 x 0.05 oz
60 x 0.002 kg
60,000 x 2 g
0.06 x 0.000002 t |
| Price |
 |
|
|
|
|
Price
Scale with NiMH Internal Battery |
RD3RSW/1 |
RD6RSW/1 |
RD12LSW/1 |
RD30LSW/1 |
RD60LSW/1 |
|
|
|
|
| |
| Platform Size (W x D) |
9.5 x 8 in / 24 x 20 cm |
14 x 9.5 in / 35 x 24 cm |
| Safe Overload Capacity |
150% of capacity |
| Construction |
Stainless steel weighing pan / Painted cast-aluminum housing |
| Protection |
IP43 for non-SW units, NEMA 4/IP65 for SW units |
| Weighing Units / Modes |
lb, oz, g, kg / Weighing, Dynamic Weighing |
| Display |
0.63 inch / 16 mm digit height (backlit LCD) |
| Keyboard |
Six button membrane switch |
| Stabilization Time |
< 2 seconds |
| Auto Zero Tracking |
0.5, 1, 2, 5, 10d, OFF |
| Power |
Internal AC adapter, rechargeable NiHM battery optional |
| Calibration |
External span, 20 - 100% |
| Operating Temperature |
14° F to 104° F / - 10° C to 40° C |
| Net (Shipping) Weight |
12 lb / 5.1 kg (15 lb / 6.6 kg |
20 lb / 8.9 kg (25 lb / 11.1 kg) |
| Scale Dimensions(W x D x H) |
10.5 x 13.2 x 4 in / 26.5 x 33.5 x 10 cm |
14.2 x 14.6 x 4.5 in / 36 x 37 x 11.5 cm |
| Shipping Dimensions (W x D x H) |
16.5 x 19 x 10 in / 42 x 48 x 25 cm |
20 x 20.5 x 10.5 in / 52 x 53 x 27 cm |
Weight:
15.00 lb
|
2 Year Manufacture Warranty
|
