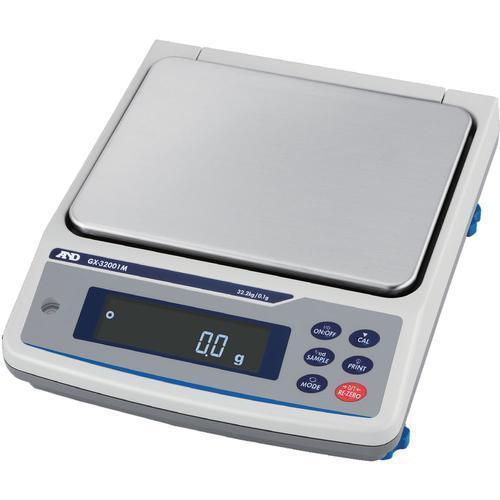

AND Weighing GX-22001M High Capacity Apollo Balance with Internal Cal 22.2 kg x 0.1 g

The occurrence of accidents, such as those that follow, whether expected or unexpected, can cause serious damage to your balance or problems with your measurements. The new A&D Apollo High Capacity, GX-M/GF-M series, is designed to provide excellent protection from these accidents, preventing loss due to downtime while also guaranteeing maximum productivity more ...
Laboratory Equipment > Analytical Balances > Tenth of a Gram - 0.1 g
AND Weighing GX-22001M High Capacity Apollo Balance with Internal Cal 22.2 kg x 0.1 g

Specifications Chart


Have Questions?
Call USoremail Us
Our Staff will be glad to help

AND Weighing GX-22001M High Capacity Apollo Balance with Internal Cal 22.2 kg x 0.1 g
FREE Ground Shipping
(48 US States Only)

Price: $1,795.00


Available to Ship


Optional Accessories
AND Weighing GXA-03 2nd RS-232C interface Factory Installed Only AND Weighing GXA-03 2nd RS-232C interface Factory Installed Only , $226.80
AND Weighing GXA-04 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end) Factory Installed Only AND Weighing GXA-04 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end) Factory Installed Only , $210.00
AND Weighing GXA-06 Analog Output (Cable: MiniDIN 4 pin Male to Loose end) Factory Installed Only AND Weighing GXA-06 Analog Output (Cable: MiniDIN 4 pin Male to Loose end) Factory Installed Only , $210.00
AND Weighing GXA-09 Internal Rechargeable Battery Factory Installed Only AND Weighing GXA-09 Internal Rechargeable Battery Factory Installed Only , $434.60
AND Weighing GXA-10 Large Glass Breeze Break AND Weighing GXA-10 Large Glass Breeze Break , $315.00
AND Weighing GXA-12 Animal Weighing Pan for Apollo Series Models of 320g Capacity or Higher AND Weighing GXA-12 Animal Weighing Pan for Apollo Series Models of 320g Capacity or Higher , $141.61
AND Weighing GXA-13 Density Determination Hit for Apollo Series 1mg Models Only AND Weighing GXA-13 Density Determination Hit for Apollo Series 1mg Models Only , $466.09
AND Weighing GXA-17 Large Glass Breeze Break with built-in Fanless Ionizer Static Sliminator AND Weighing GXA-17 Large Glass Breeze Break with built-in Fanless Ionizer Static Sliminator , $1,324.35
AND Weighing GXA-23-RZERO External key input interface with the AX-SW137-REZERO foot switch - Factory Installed Only AND Weighing GXA-23-RZERO External key input interface with the AX-SW137-REZERO foot switch - Factory Installed Only , $197.40
AND Weighing GXA-23-PLUG External Key Input Interface with the AX-T-314A-S Plug - Factory Installed Only AND Weighing GXA-23-PLUG External Key Input Interface with the AX-T-314A-S Plug - Factory Installed Only , $197.40
AND Weighing GXA-24 USB host interface Factory Installed Only AND Weighing GXA-24 USB host interface Factory Installed Only , $106.25
AND Weighing GXA-25 External Fanless Ionizer Static Eliminator Factory Installed Only AND Weighing GXA-25 External Fanless Ionizer Static Eliminator Factory Installed Only , $766.70
AND Weighing GXA-26 External IR switch Factory Installed Only AND Weighing GXA-26 External IR switch Factory Installed Only , $168.00
AND Weighing GXA-27 Bluetooth Interface Factory Installed Only AND Weighing GXA-27 Bluetooth Interface Factory Installed Only , $144.50
AND Weighing GXA-31-1EA Protective In-Use Cover 1 each BA Series AND Weighing GXA-31-1EA Protective In-Use Cover 1 each BA Series , $30.00
AND Weighing GXA-31-5PK Protective In-Use Cover 5 each Apollo  Series AND Weighing GXA-31-5PK Protective In-Use Cover 5 each Apollo Series , $99.96
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series , $285.60
AND AD-1682 Rechargeable Battery Pack AND AD-1682 Rechargeable Battery Pack , $656.00
AND Weighing AD-8526-9:Ethernet Adapter  D-Sub 9 with WinCT Plus AND Weighing AD-8526-9:Ethernet Adapter D-Sub 9 with WinCT Plus , $483.60
AND AD-8920A Universal Remote Display AND AD-8920A Universal Remote Display , $236.25
AND Weighing AD-100-2 Anti-theft Device AND Weighing AD-100-2 Anti-theft Device , $83.70
AND SW-128 Foot Switch AND SW-128 Foot Switch , $86.40
AND Weighing TB:648 120V/220V AC Adapter AND Weighing TB:648 120V/220V AC Adapter , $46.50
AND Weighing AD-8529PC-W Bluetooth Converter for PC AND Weighing AD-8529PC-W Bluetooth Converter for PC , $358.55
AND Weighing AD-8529PR-W Bluetooth Converter for Printer AND Weighing AD-8529PR-W Bluetooth Converter for Printer , $358.55
AND Weighing AD-8127 Compact Multi-Function Printer AND Weighing AD-8127 Compact Multi-Function Printer , $757.50
AND Weighing -AD-1687 - Weighing Environment Logger AND Weighing -AD-1687 - Weighing Environment Logger , $878.85
AND Weighing- AD-1688 -Weighing Data Logger AND Weighing- AD-1688 -Weighing Data Logger , $302.40
AND Weighing AD-1689 Calibration weight tweezers, pack of 5 AND Weighing AD-1689 Calibration weight tweezers, pack of 5 , $184.80
AND Weighing AD-1691 -Weighing Environment Analyzer AND Weighing AD-1691 -Weighing Environment Analyzer , $2,195.00
AND Weighing AD-8526-25:Serial / Ethernet Converter AND Weighing AD-8526-25:Serial / Ethernet Converter , $483.60
AND AD-8922A Remote Controller AND AD-8922A Remote Controller , $532.50

View Features

AND Weighing
SKU: GX-22001M-OS

Features

The occurrence of accidents, such as those that follow, whether expected or unexpected, can cause serious damage to your balance or problems with your measurements. The new A&D Apollo High Capacity, GX-M/GF-M series, is designed to provide excellent protection from these accidents, preventing loss due to downtime while also guaranteeing maximum productivity.

Common accidents in weighing 1: Spillage
Weighing of powder or liquid materials for filling, formulating, etc., always carries a risk of spillage, which could damage the balance.
IP65 dust and waterproof A&D Apollo High Capacity balances, which are IP65 rated, permit no ingress of dust, and can withstand water projected from any direction, as defined by the IEC/EN standard 60529.

Common accidents in weighing 2: Impact shocks
The weight sensor of a high-precision balance will be damaged if continually affected by loads with acceleration (impact shocks). This typically occurs in factories where objects are placed roughly by machines or operators onto balances. In addition, impact shocks can easily shift values and cause errors.
Impact shock detection (ISD)
Impact-Alert
A&D Apollo High Capacity balances visualize the magnitude of impact shocks received by the weight sensor at four levels. Also, one beep is emitted if a Level 3 shock is received, and two beeps are emitted if a Level 4 shock is received (both of which should be avoided). Shock-Log
While the power is on, up to 50 impacts of Level 3 and Level 4 will be stored in the balance with a timestamp (and log-in user information when the password lock function is used).
*1 This function is especially beneficial for quality managers, as it enables them to check and show how their balances were treated during use.
Cushioning mechanism
The two leaf springs that support the weighing pan mitigate impact shocks significantly

Common accidents in weighing 3: Power failure
Power supply may be interrupted suddenly in the middle of measurement, spoiling your work.
Tare memory
When this function is activated, the tare value is saved in non-volatile memory, and the net value displayed before the power failure occurred is restored once the balance is turned on again. This also allows for the balance to be turned off during weigh-in or loss-in-weight measurement when necessary. Auto power ON/OFF
The weighing mode display is automatically activated when AC power is supplied, so there is no need to press the ON/OFF key as the power comes back on, which is useful when the balance is part of an automated weighing system. Meanwhile, the balance can be set to switch off the display automatically after 10 minutes of inactivity to save power.

Common accidents in weighing 4: Misuse
People may change the balance configuration or sensitivity without permission.
User access control (UAC) and key lock A&D Apollo High Capacity balances can be password-protected in two ways: The first way is to limit use to authorized individuals (up to 11 including one administrator—the administrator can perform all operations while other users are limited to measurements and calibration*2 only) by setting a password for each user. The second way is to set a password for just the administrator, allowing anyone else to use the balance without entering a password, but for measurements and calibration*2 only.
Moreover, upon receiving a command to disable its keys, the balance becomes operable only by sending commands from an external device, such as a PC.
*2 The administrator can inhibit calibration also so that others can perform measurements

Accuracy and precision management
Automatic self calibration (ASC)*3
To ensure accuracy at all times, models with an internal weight (i.e. GX-M series) can be set to calibrate themselves automatically either (1) in response to change in ambient temperature to prevent error due to sensitivity drift, (2) at a set interval time, or (3) at predetermined (up to three) times of the day. Internal calibration can also be performed any time with one key press.
*3 Available for the GX-M series

Automatic precision assessment (APA)
In APA, the balance first makes quick diagnoses on whether there is a critical failure (Dia-Check), and then shows a repeatability test result (Standard Deviation) as well as the minimum weight (QuickMin-S) calculated using an electronically controlled load (ECL).*4 It only takes 1.5 minutes and can be readily included in a daily check SOP.
*4 ECL is A&Ds patented technology of generating a minute load (0.3 to 3% of the balance capacity) by purposely altering the equilibrium state of the electromagnetic force restoration sensor.

Automatic minimum weight calculation and implementation
You can enter the minimum weight into the balance by either direct key input, using the result of QuickMin-S, or having the balance calculate it from 10 repeated measurements of an actual, external weight (the tolerance can be set to either 0.1% pursuant to USP Chapter 41, or 1%). Further, to ensure that the measured sample amount meets the minimum weight requirement, the balance can display an alert until the sample amount reaches the value entered as the minimum weight (Min-S Alert).*5
*5 Only when g is selected as the unit of measure

Data output/communication
RS-232C and USB interfaces as standard
The USB interface can be toggled between Quick USB mode (plug-and-play with weighing data output to a PC only) and Virtual COM mode (for bi-directional communication*6) using the internal settings. A USB cable (1.8 m) is provided as standard.
*6 For PCs with a Windows version other than Windows 10, a special driver downloaded from the A&D website needs to be installed

Universal Flexi Coms (UFC)
This function enables customization of printout content and layout by editing and sending commands to the balance (a dedicated software, WinCT-UFC, is available as a free download). Following the commands, the balance creates data to be output to either a printer capable of dump printing, such as the AD-8127 compact printer, or a commercially-available label printer*7 for barcode printing.
*7 A label printer that supports ZPL or ZPL II (ZPL and ZPL II are registered trademarks of ZIH Corp.)

Gross/Net/Tare output
Upon receiving a command, or with key operation, the balance can also output the gross, net, and tare values

Special application function Flow rate display (FRD)
FR-Cal
The balance can calculate and display/output the mass flow rate (the unit of measure can be selected from g/s, g/m or g/h), or the volume flow rate (mL/s, mL/m or mL/h) by entering the density of the material,*8 by itself. This function makes flow rate measurement much easier and more precise than manual calculation using a stopwatch. A dedicated graphing software, WinCT-FRD, is available as a free download.
*8 Up to 10 densities can be saved to the balance.
FR-Compare
The balance indicates whether the flow rate is maintained within the designated limits (either 3 levels or 5 levels). The results can be output using the optional GXM-04 interface.

Options
GXM-04 *9*10 - Comparator relay output/buzzer/RS-232C/external key input interface
GXM-06 *9*10 - Analog (0-1/0.2-1 V) output/RS-232C interface
GXK-012 - Animal weighing pan
GXK-015 - Carrying case
GXM-27 *9*11 - Bluetooth® interface

  • *9 Only one of GXM-04, GXM-06, GXM-27, or the standard (RS-232C and USB) interfaces can be used.
  • *10 The GX-M/GF-M series are not IP65 with GXM-04 or GXM-06.
  • *11 Please contact your local A&D representative to find out whether GXM-27 is certified for compliance with Bluetooth® communication laws in your country.

Accessorie

  • AD-1682 - Rechargeable battery unit
  • AD-1683 - Static eliminator
  • AD-1684A - Electrostatic field meter
  • AD-1687 - Weighing environment logger
  • AD-1688 - Weighing data logger
  • AD-8127 - Compact printer
  • AD-8526 - Serial/Ethernet (TCP/IP) converter
  • AD-8920 - Remote display
  • AD-8922A - Remote controller
  • AX-USB-9P - Serial/USB converter with cable
  • AX-KO2737-500 - Waterproof RS-232C cable (5 m)




Weight: 20.00 lb
Other AND Weighing GF High Capacity Apollo Scales

Add to Cart for Warranty Information
Image Name Price
AND Weighing GF-8202MD High Capacity Apollo Balance 2.2 kg x 0.01 g and 8.2 kg x 0.1 g
AND Weighing GF-8202MD High Capacity Apollo Balance 2.2 kg x 0.01 g and 8.2 kg x 0.1 g
SKU: GF-8202MD
Capacity x Readability : 2.2 g x 0.01 g

Pan Size: 10.62 x 8.26 in
More Info
$2,015.81
AND Weighing GF-8202M High Capacity Apollo Balance 8.2 kg x 0.01 g
AND Weighing GF-8202M High Capacity Apollo Balance 8.2 kg x 0.01 g
SKU: GF-8202M
Capacity x Readability : 8.2 kg x 0.01 g

Pan Size: 10.62 x 8.26 in
More Info
$2,389.34
AND Weighing GF-8202MD High Capacity Apollo Balance 2.2 kg x 0.01 g and 8.2 kg x 0.1 g
AND Weighing GF-8202MD High Capacity Apollo Balance 2.2 kg x 0.01 g and 8.2 kg x 0.1 g
SKU: GF-8202MD
Capacity x Readability : 8.2 kg x 0.1 g

Pan Size: 10.62 x 8.26 in
More Info
$2,015.81
AND Weighing GX-8202M High Capacity Apollo Balance with Internal Cal 8.2 kg x 0.01 g
AND Weighing GX-8202M High Capacity Apollo Balance with Internal Cal 8.2 kg x 0.01 g
SKU: GX-8202M
Capacity x Readability : 8.2 kg x 0.01 g

Pan Size: 10.62 x 8.26 in
More Info
$2,506.64
AND Weighing GF-10202M High Capacity Apollo Balance 10.2 kg x 0.01 g
AND Weighing GF-10202M High Capacity Apollo Balance 10.2 kg x 0.01 g
SKU: GF-10202M
Capacity x Readability : 10.2 kg x 0.01 g

Pan Size: 10.62 x 8.26 in
More Info
$2,562.21
AND Weighing GF-12001M High Capacity Apollo Balance 12.2 kg x 0.1 g
AND Weighing GF-12001M High Capacity Apollo Balance 12.2 kg x 0.1 g
SKU: GF-12001M
Capacity x Readability : 12.2 kg x 0.1 g

Pan Size: 10.62 x 8.26 in
More Info
$1,955.10
AND Weighing GF-22001M High Capacity Apollo Balance 22.2 kg x 0.1 g
AND Weighing GF-22001M High Capacity Apollo Balance 22.2 kg x 0.1 g
SKU: GF-22001M
Capacity x Readability : 22.2 kg x 0.1 g

Pan Size: 10.62 x 8.26 in
More Info
$2,296.73
AND Weighing GF-32001M High Capacity Apollo Balance 32.2 kg x 0.1 g
AND Weighing GF-32001M High Capacity Apollo Balance 32.2 kg x 0.1 g
SKU: GF-32001M
Capacity x Readability : 32.2 kg x 0.1 g

Pan Size: 10.62 x 8.26 in
More Info
$2,685.69

Specifications

With External Cal GF-8202M GF-8202MD GF-10202M GF-12001M GF-22001M GF-32001M GF-32001MD
With Internal Cal GX-8202M GX-8202MD GX-10202M GX-12001M GX-22001M GX-32001M GX-32001MD
Capacity x Readability 8.2 kg x 0.01 g 2.2 kg x 0.01 g
8.2 kg x 0.1 g
10.2 kg x 0.01 g 12.2 kg x 0.1 g 22.2 kg x 0.1 g 32.2 kg x 0.1 g 6.2 kg x 0.1 g
32.2 kg x 1 g
Repeatability (standard deviation) 0.01 g 0.01 g / 0.05 g 0.01 g 0.1 g 0.1 g 0.1 g 0.1 g / 0.5 g
Linearity ±0.03 g ±0.02 g / ±0.1 g ±0.03 g ±0.2 g ±0.2 g ±0.2 g ±0.2 g / ±1 g
Stabilization time (typical when set to FAST) Approx. 1.5 seconds
Sensitivity drift (10 to 30 °C/50 to 86 °F, when automatic self calibration is OFF) ±2 ppm/°C ±3 ppm/°C ±2 ppm/°C ±3 ppm/°C ±3 ppm/°C ±3 ppm/°C ±5 ppm/°C
Accuracy immediately after internal ca libration (for the GX-M series)*ii ±0.15 g ±0.3 g ±0.3 g ±1.0 g ±1.0 g ±1.5 g ±3 g
Operating environment 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation)
Data memory 200 weighing results + 50 calibration results (with timestamp), 50 unit masses for counting mode, 20 sets of upper/lower limit values for comparator mode, and 20 tare values
Display refresh rate 5 times/second, 10 times/second, or 20 times/second
Units of measure g (gram), kg (kilo gram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (density mode), and a user-programmable unit
Counting mode: Minimum unit mass 0.01 g 0.1 g 0.01 g 0.1 g 0.1 g 0.1 g 1 g
Counting mode: Number of samples 10, 25, 50 or 100 pieces
Percent mode: Minimum 100% reference mass 1 g 10 g 1 g 10 g 10 g 10 g 100 g
Percent mode: % readability 0.01%, 0.1% or 1% (depends on the reference mass stored)
Communication interface RS-232C and USB
Applicable calibration weight value 2 kg, 3 kg, 4 kg, 5 kg, 6 kg, 7 kg, 8 kg 2 kg, 3 kg, 4 kg, 5 kg, 6 kg, 7 kg, 8 kg, 9 kg, 10 kg 5 kg, 10 kg 5 kg, 10 kg, 20 kg 10 kg, 20 kg, 30 kg
Weighing pan size 270 x 210 mm
External dimensions 300 (W) x 355 (D) x 111 (H) mm
Net weight GX-M: Approx. 9.3 kg / GF-M: Approx. 8.3 kg
Dust and waterproof rating IP65
Power supply / consumption AC adapter / approx. 30 VA
Standard accessories Display cover, AC adapter, USB cable (1.8 m), Simple breeze break (for the GX/F-8202M, GX/F-8202MD, and GX/F-10202M only)
  • *i Smart range function: Automatically switches between the precision and standard ranges, and recovers the full precision range with a press of the RE-ZERO (tare) key.
  • *ii Under a stable environment: No rapid temperature/humidity change, vibration, draft, magnetism, static, etc., between 10 °C and 30 °C (50 °F and 86 °F). The mass of the internal weight may vary with age.
  • *iii One additional unit from tael (Singapore/HK jewelry/Taiwan), tola, or Newton can be added upon request. Grain is not available with the GX/F-32001MD.

* within the 48 continental US States


Optional Accessories


AND Weighing GXA-03 2nd RS-232C interface Factory Installed Only
more info
AND Weighing GXA-03 2nd RS-232C interface Factory Installed Only
$226.80

AND Weighing GXA-03 2nd RS-232C interface
Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed.
AND Weighing GXA-04 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end) Factory Installed Only
more info
AND Weighing GXA-04 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end) Factory Installed Only
$210.00

AND Weighing GXA-04 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end)
AND Weighing GXA-06 Analog Output (Cable: MiniDIN 4 pin Male to Loose end) Factory Installed Only
more info
AND Weighing GXA-06 Analog Output (Cable: MiniDIN 4 pin Male to Loose end) Factory Installed Only
$210.00

AND Weighing GXA-06 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end) Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed.
AND Weighing GXA-09 Internal Rechargeable Battery Factory Installed Only
more info
AND Weighing GXA-09 Internal Rechargeable Battery Factory Installed Only
$434.60

AND Weighing GXA-09 Internal Rechargeable Battery Factory Installed Only
Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed.
AND Weighing GXA-10 Large Glass Breeze Break
more info
AND Weighing GXA-10 Large Glass Breeze Break
$315.00

AND Weighing GXA-10 Large Glass Breeze Break The glass panes disappear into the back when opening the door, requiring no extra space at the rear of the balance. Easily attachable/detachable
AND Weighing GXA-12 Animal Weighing Pan for Apollo Series Models of 320g Capacity or Higher
more info
AND Weighing GXA-12 Animal Weighing Pan for Apollo Series Models of 320g Capacity or Higher
$141.61

AND Weighing GXA-12 Animal Weighing Pan for Apollo Series Models of 320g Capacity or Higher
AND Weighing GXA-13 Density Determination Hit for Apollo Series 1mg Models Only
more info
AND Weighing GXA-13 Density Determination Hit for Apollo Series 1mg Models Only
$466.09

AND Weighing GXA-13 Density Determination Hit for Apollo Series 1mg Models Only Makes weighing the sample in air and in water quicker, easier and more precise. The GX-A/GF-A series can then perform a density calculation automatically
AND Weighing GXA-17 Large Glass Breeze Break with built-in Fanless Ionizer Static Sliminator
more info
AND Weighing GXA-17 Large Glass Breeze Break with built-in Fanless Ionizer Static Sliminator
$1,324.35

AND Weighing GXA-17 Large Glass Breeze Break with built-in Fanless Ionizer Static Sliminator The fanless ionizer can neutralize even extremely fine powders without disturbance
AND Weighing GXA-23-RZERO External key input interface with the AX-SW137-REZERO foot switch - Factory Installed Only
more info
AND Weighing GXA-23-RZERO External key input interface with the AX-SW137-REZERO foot switch - Factory Installed Only
$197.40

AND Weighing GXA-23-REZERO External key input interface with the AX-SW137-REZERO foot switch - Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. Factory Installed Only
AND Weighing GXA-23-PLUG External Key Input Interface with the AX-T-314A-S Plug - Factory Installed Only
more info
AND Weighing GXA-23-PLUG External Key Input Interface with the AX-T-314A-S Plug - Factory Installed Only
$197.40

AND Weighing GXA-23-PLUG External Key Input Interface with the AX-T-314A-S Plug - Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. Factory Installed Only
AND Weighing GXA-24 USB host interface Factory Installed Only
more info
AND Weighing GXA-24 USB host interface Factory Installed Only
$106.25

AND Weighing GXA-24 USB host interface Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. Accepts an off-the-shelf USB flash drive to save weighing results in CSV format.
AND Weighing GXA-25 External Fanless Ionizer Static Eliminator Factory Installed Only
more info
AND Weighing GXA-25 External Fanless Ionizer Static Eliminator Factory Installed Only
$766.70

AND Weighing GXA-25 External Fanless Ionizer Static Eliminator Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. Power is supplied from the balance. Activated for a set duration with an IR sensor. Factory Installed Only
AND Weighing GXA-26 External IR switch Factory Installed Only
more info
AND Weighing GXA-26 External IR switch Factory Installed Only
$168.00

AND Weighing GXA-26 External IR switch Factory Installed Only Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. For touchless operation of print or re-zero (tare). Factory Installed Only
AND Weighing GXA-27 Bluetooth Interface Factory Installed Only
more info
AND Weighing GXA-27 Bluetooth Interface Factory Installed Only
$144.50

AND Weighing GXA-27 Bluetooth Interface Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. GXA-27 is a Bluetooth communication option. By pairing specific product, PC, tablet or smartphone equipped with Bluetooth function, you can communicate with the balance. Dust and waterproof balances can communicate with Bluetooth device by using GXA-27 maintaining its performance.
AND Weighing GXA-31-1EA Protective In-Use Cover 1 each BA Series
more info
AND Weighing GXA-31-1EA Protective In-Use Cover 1 each BA Series
$30.00

A&D Weighing Display Covers (1 pcs),GXA-31-1EA
Product Type Cover
Qty/pk 1
Brand A&D Balances
Manufacturer number GXA-31-1EA
AND Weighing GXA-31-5PK Protective In-Use Cover 5 each Apollo  Series
more info
AND Weighing GXA-31-5PK Protective In-Use Cover 5 each Apollo Series
$99.96

A&D Weighing Display Covers (5 pcs),GXA-31-5PK
Product Type Cover
Qty/pk 5
Brand A&D Balances
Manufacturer number GXA-31-5EA
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
more info
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
$285.60

AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
AND AD-1682 Rechargeable Battery Pack
more info
AND AD-1682 Rechargeable Battery Pack
$656.00

Rechargeable Battery Pack for AND Weighing balances
AND Weighing AD-8526-9:Ethernet Adapter  D-Sub 9 with WinCT Plus
more info
AND Weighing AD-8526-9:Ethernet Adapter D-Sub 9 with WinCT Plus
$483.60

AND Weighing AD-8526-9:Ethernet Adapter D-Sub 9 with WinCT Plus
AND AD-8920A Universal Remote Display
more info
AND AD-8920A Universal Remote Display
$236.25

Universal Remote Display for AND Weighing balances Connects to A&D’s balances and scales using either RS-232C or current loop Includes an AC adapter and a communication cable that matches your instrument Recognizes the balance/scale baud setting automatically Large and bright VFD display
AND Weighing AD-100-2 Anti-theft Device
more info
AND Weighing AD-100-2 Anti-theft Device
$83.70

Anti-theft Device for AND Weighing Everest digital balances
AND SW-128 Foot Switch
more info
AND SW-128 Foot Switch
$86.40

Foot switch for AND Weighing balances
AND Weighing TB:648 120V/220V AC Adapter
more info
AND Weighing TB:648 120V/220V AC Adapter
$46.50

Compatible with the following units: Phoenix GH Series, Gemini GR Series, Galaxy HR Series, Orion HR Series, GF Series, GX Series, FZ Series, FX Series, BM Series, MC Series, AD Pipette Series
AND Weighing AD-8529PC-W Bluetooth Converter for PC
more info
AND Weighing AD-8529PC-W Bluetooth Converter for PC
$358.55

The AD-8529PC/PR-W Bluetooth® converters enable wireless communication between a balance/scale and a PC/printer using Bluetooth® technology (line-of-sight distance approx. 10 m when there is no radio wave interference).*2
  • *1 A&D no longer produces the AD-8121B compact printer and now offers the AD-8127 instead.
  • *2 Please contact your local A&D representative to find out whether the AD-8529PC/PR-W is certified for compliance with Bluetooth® communication laws in your country.
AD-8529PC-W:

For communication between a balance/scale and a PC. Plug and play with Windows 10. (For earlier versions of Windows, install the driver Driver software for the AD-8529PC-W (Bluetooth converter for PC) Download here

AND Weighing AD-8529PR-W Bluetooth Converter for Printer
more info
AND Weighing AD-8529PR-W Bluetooth Converter for Printer
$358.55

The AD-8529PC/PR-W Bluetooth® converters enable wireless communication between a balance/scale and a PC/printer using Bluetooth® technology (line-of-sight distance approx. 10 m when there is no radio wave interference).*2
  • *1 A&D no longer produces the AD-8121B compact printer and now offers the AD-8127 instead.
  • *2 Please contact your local A&D representative to find out whether the AD-8529PC/PR-W is certified for compliance with Bluetooth® communication laws in your country.
AD-8529PR-W:

For communication between a balance/scale and an A&D printer. No AC adapter is required when used with the AD-8127.

AND Weighing AD-8127 Compact Multi-Function Printer
more info
AND Weighing AD-8127 Compact Multi-Function Printer
$757.50

Features
  • Easy setting and operation with a numeric keypad and LCD display
  • Built-in calendar and clock for printing date and time at any time
  • Sends re-zero and weighing data request commands to the balance/scale
  • Clear and visible dot matrix printing, which also enables long-term preservation of the printed records
  • Compact and lightweight for portability and installation anywhere
  • Interval printing mode for printing weighing data at set intervals
  • Chart printing mode for printing time-series variations of weighing data
  • Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from the balance/scale
  • Performs and prints the results of statistical calculation including standard deviation
  • Prints an ID number set for the printer at any time
  • Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to connect to balances/scales with different interfaces*
  • Receives a print, paper feed, print statistical calculation results, print total, re-zero, or weighing data request command from the optional foot switch (AX-SW128)
Character specifications 7 × 9 dots, 1.6 (W) × 3.2 (H) mm
Printing speed Approx. 1.6 lines/second
Paper feeding speed Approx. 4 lines/second
Number of characters printed 24 characters/line
Printer paper width 57.5 mm
Operating environment 0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation)
Storage environment -20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation)
Interface RS-232C (D-Sub 9P, male) / Current loop (DIN)
Power supply AC adapter
Size / weight 174 (W) × 141 (D) × 87 (H) mm / approx. 500 g
Standard accessories Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)*
AND Weighing -AD-1687 - Weighing Environment Logger
more info
AND Weighing -AD-1687 - Weighing Environment Logger
$878.85

Data capacity Maximum 10,000 sets (including date and time)
Interval time 1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes
Power supply Two LR6 (AA) batteries, RS-232C, or USB
Battery life Approx. 6 months (with measurement interval at 1 minute, alkaline batteries)
Clock accuracy Maximum ±1 minute/month
Compatible operating systems Windows 2000 / XP / Vista / 7 (32 / 64 bit)
Operating environment 0 to 60 °C / 32 to 140 °F, 85% RH or less (no condensation)
Dimensions 127 (W) × 90 (H) × 36 (D) mm (including the protective cover)
Weight Approx. 275 g (including batteries and the protective cover)
Standard accessories Three RS-232C cables for weighing instruments (9-pin D-Sub, 25-pin D-Sub, and 7-pin DIN, 1 m), USB cable (1 m), Two LR6 (AA) batteries (for operation check), Protective cover, Instruction manual
Sensor Resolution Measurement range Accuracy
Temperature 0.1 °C ,0.1 °F 0.1 °F 0 to 60 °C ,32 to 140 °F 32 to 140 °F ±0.5 °C (20 to 30 °C),±0.9 °F (68 to 86 °F)
Relative humidity 0.1% RH 0 to 100% <±3% (20 to 80%)/td>
Barometric pressure 0.1 hPa 500 to 1100 hPa hPa ±3 hPa (0 to 60 °C)
Vibration 1 mG 0 to 2000 mG ±20%, static acceleration
AND Weighing- AD-1688 -Weighing Data Logger
more info
AND Weighing- AD-1688 -Weighing Data Logger
$302.40

AD-1688 Specifications
Application devices Balances and scales manufactured by A&D with an RS-232C connector
Memory size Approx. 5,000 data sets in the standard format (15 characters in 1 data set) can be stored
Clock error ±1 minute / month
Applicable OS Windows 2000 / XP / Vista
Dedicated power supply Not required. Power is supplied by the weighing instrument or PC.
Operating environment 50°F - 86°F (5°C - 40°C ), 85%RH or less (no condensation)
Dimensions Approx. 2.1 oz (60 g)
Weight Approx. 2.1 oz (60 g)
AND Weighing AD-1689 Calibration weight tweezers, pack of 5
more info
AND Weighing AD-1689 Calibration weight tweezers, pack of 5
$184.80

With a length of 210 mm, the tweezers allow a weight to be placed in a weighing pan without having to put a hand inside the chamber. This prevents convection flow that is normally attributed to heat coming from the hand.
Each tweezer is made from austenitic stainless steel (SUS304), therefore heat from the hand is unlikely to be transmitted to the weight via the tweezers. This is especially effective for the precise measurements required of analytical balances.
Tips of the tweezers are covered in resin to prevent the weight from slipping. The hilt is also covered with resin for easy gripping.
AND Weighing AD-1691 -Weighing Environment Analyzer
more info
AND Weighing AD-1691 -Weighing Environment Analyzer
$2,195.00

Display TFT color LCD with backlight (7 inches, 800 x 480 dots)
LCD backlight brightness Adjustable to 10 levels
Data transmission RS-232C × 3, USB (1.1) × 2
Power supply AC adapter
External dimensions 203 (W) × 153 (D) × 58 (H) mm, excluding protrusions
Net weight Approx. 1.0 kg
AND Weighing AD-8526-25:Serial / Ethernet Converter
more info
AND Weighing AD-8526-25:Serial / Ethernet Converter
$483.60

The AD-8526 can connect the RS-232C interface of an A&D weighing instrument to the Ethernet (LAN) port of a computer that is not equipped with an RS-232C interface.
AND AD-8922A Remote Controller
more info
AND AD-8922A Remote Controller
$532.50

Remote Controller for AND Weighing balances Displays weighing data Remotely controls a weighing instrument with key operations (no access to the internal settings) Outputs weighing data to another external device such as a PC or printer via the RS-232C connection Optional BCD, comparator, and analog outputs available Can be panel-mounted

View Cart | Specials | Contact Us | Home | Blog | Sitemap | Store Policies | Your Account | Enter Monthy Contest

For Orders, Phone toll-free 800-832-0055
All other inquiries, please phone 718-336-5900
FAX 718-627-1313
TEXT: 718-336-5900

Chat with us via WhatsApp Chat whatsapp: 718 787 8658



Scales & Equipment: Value Electronic Scales | Value Mechanical Scales | Lab / Analytical Scales | Baby Scales | Bathroom Scales | Bariatric Scales | Body Fat Monitors | Pro Body Composition Monitors | Calibration Weights | Counting Scales | Crane ScalesDeli/Food/Grocery Scales | Dynamometers | Fish/Game Scales | Floor Scales | Force Gauges | Industrial-Use Scales | Jewelry Scales | Livestock Scales"Legal for Trade" Scales | Medical Scales | Moisture Analyzers | Pallet Scales | Pocket ScalesPortable Spring Gauges | Shipping Scales  | Specialty Medical Scales | Test Stands / Force Measurement | Veterinary Scales


Manufacturers: Acculab digital scales | AND electronic scales | Best Weight mechanical scales| Detecto Physician's Scales | CAS digital scales | Chatillon/Ametek mechanical and electronic scales | DigiWeigh Economical Scales | Dillon Crane Scales, Dynamometers & Force Testing Products| Easy Weigh Legal for Trade Scales | Health O Meter Scales | Hoto Instruments | Imada Force Measurement | InScale Floor Scales | Mark-10 Force Testing | Mettler Toledo® | Minx Economical Pocket Scales | Ohaus electronic and mechanical scales | Tanita digital scales | Salter Brecknell | Sartorius Lab Balances | Seca Medical Scales | Great Gift Ideas



© 2000 2024 scalesgalore.com   All rights reserved.
Phone Myaccount cart home Home
×
