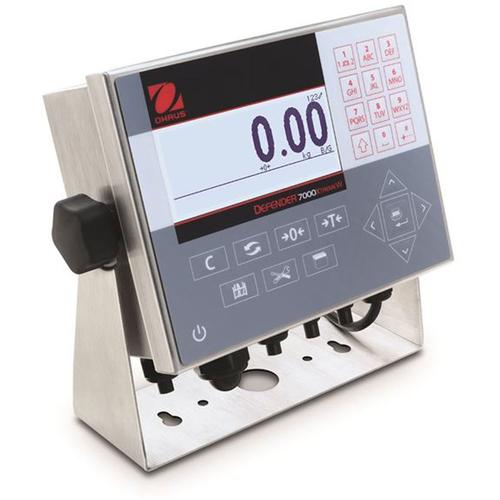

Ohaus T72XW Advanced Performance Stainless Steel Indicator with External Device Control Capabilities |
|
| The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under checkweighing, animal weighing and counting more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under checkweighing, animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear-and-tear in industrial settings.
Standard Features Include:
- High Resolution and Multi Load Cell Support for Higher Capacity Industrial Weighing— With a 50,000 displayed resolution and the ability to support up to 10 load cells, T72XW was designed for heavy-duty industrial applications.
- Multiple Connectivity Interfaces Support Complex Applications—Two available option slots enable a wide range of connectivity interfaces. Control external devices using the discrete I/O interface and transfer data through the serial, USB or Ethernet ports.
- Advanced Applications with Intuitive Navigation—T72XW is very easy to set up and navigate, a vivid graphic display with on-screen prompts and an alphanumeric keypad with designated keys for common functions such as Tare and ID information.
- Customized Features Provide a User-Friendly Experience—Perform a range of functions such as customize print templates, customize and print inbound/outbound tickets for vehicles (in Temporary or Permanent Tare mode), and generate periodic reports.
Dimensions
X:
8.30
Y:
2.80
Z:
5.80
Weight:
7.00 lb
|
|
Other Ohaus 7000 Series Indicator
|
Specifications
| Model |
T72XW |
| Capacity |
Up to 998000 (t, kg, g or lb) |
| Maximum Displayed Resolution |
1:50,000 |
| Maximum Approved Resolution |
NTEP 14-049 1:10,000
Measurement Canada AM-5943; 1:6,000 (EC, OIML) |
| Weighing Units |
kg, lb, oz, lb-oz, g, ton, t |
| Weighing Modes |
Animal Weighing, Parts Counting, Checkweighing |
| Display |
Transflective graphic LCD with white backlight, 240 x 96 pixels |
| Under/Accept/Over indicators |
3 Zones, up to 25 targets |
| Controls |
8 function, 4 navigation, 12 alpha numeric membrane switches |
| Ingress Protection |
IP66 |
| Load Cell Excitation Voltage |
10 VDCs |
| Load Cell Drive |
Up to 10 × 350 ohm load cells |
| Load Cell Input Sensitivity |
Up to 3 mV/V |
| Stabilization Time |
Within 2 seconds |
| Auto-Zero Tracking |
Off, 0.5d, 1d, 3d or 10d |
| Zeroing Range |
+/-2% or +/-20% of capacity |
| Interfaces |
RS232 (included), SD card (included), Ethernet (optional) , USB with Discrete I/O (optional), Second RS232/RS485 (optional) |
| Operating Temperature Range |
14 °F to 104 °F / -10 °C to 40 °C |
| Main Power |
100-240 V ~ 0.15 A 50/60 Hz internal power supply |

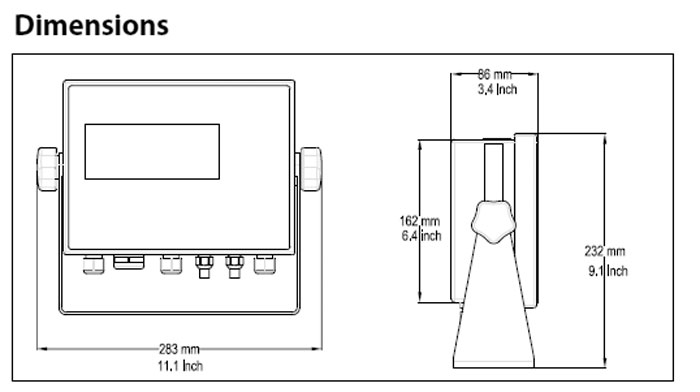

| Housing dimensions (W x D x H) |
11.1 x 3.4 x 9.1 in / 283 x 86 x 232 mm |
| Net weight |
6.6 lb / 3 kg |
| Shipping weight |
7.5 lb / 3.4 kg) |
| Shipping Dimensions |
13W x 9.5D x 7H in / 324W x 240D x 187H mm |
Additional Features
Check weighing lights with selectable operation and audible signal settings, sealed front panel, five operating languages (English, Spanish,
French, German and Italian), selectable environmental and auto-print settings, stability indicator, overload/underload indicators
Approvals
- Product Saftey: CAN/CSA C22.2 60950-1; UL 60950-1
- Electromagnetic Compatibility: Canada ICES-003 Class A; FCC Part 15 Class A
- Meterology: Canada Weights and Measures Regulations Class III/IIIHD (AM-5943); NIST Handbook 44 Class III/IIIL (14-049)
Options and Accessories
Interface Options
Ethernet Kit, T72XW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30132163
USB with I/O kit, T72XW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30132164
COM2 Kit, T72XW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30132165
Mounting Accessories
Column Mount Kit, 35cm, stainless steel, T71. . . . . . . . . . 80500725
Column Mount Kit, 68cm, stainless steel, T71. . . . . . . . . . 80500726
Compatible with all existing columns for D31/D51/CKW
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus STP-103 Palm-Sized Thermal Printer
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
|
|
more info
|
Ohaus 80500552 RS232 Cable, PC 9 Pin To Defender 5000 & 7000 with T71XW, T51XW
Ohaus 80500552 RS232 Cable, PC 9 Pin To Defender 5000 & 7000 with T71XW, T51XW
|
|
more info
|
Ohaus SF40A (30064203) Portable Dot-Matrix Impact Printer
OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
- Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
- Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
- Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
|
|
more info
|

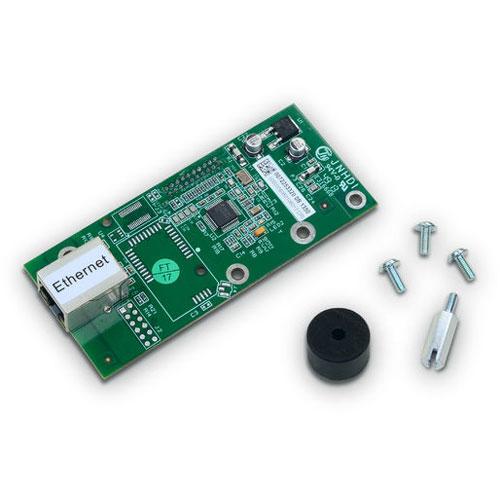

Ohaus 30132163 Ethernet Kit for T72XW Indicator
Ohaus 30132163 Ethernet Kit for T72XW Indicator
|
|
more info
|

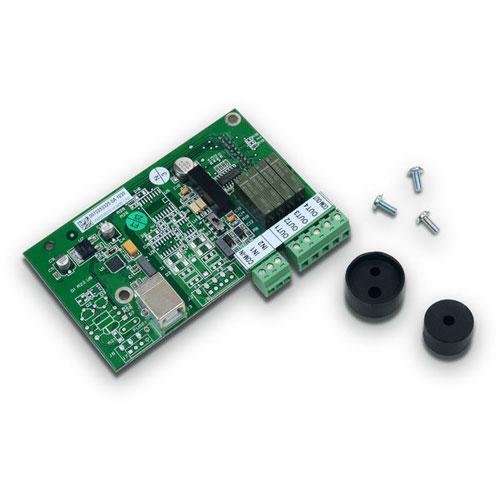

Ohaus 30132164 USB with I/O Kit for T72XW Indicator
