Features
Capacity x Readabioity: 500 lb x 0.2 lb - Legal for Trade

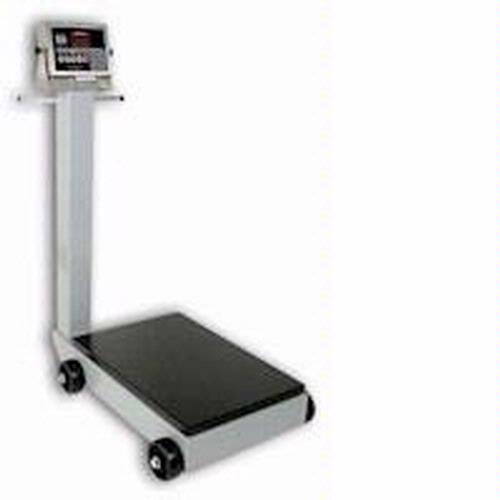

Constructed entirely of heavy-duty welded fabricated steel bases and electrostatically coated with long-life paint, these legal for trade platform scales provide fast, portable, accurate performances that let the weighing come to where you need it. The Detecto model 210 digital weight indicator is battery powered and furnished in waterproof NEMA 4X/IP66 stainless steel enclosure with a .6 (15mm) high LED display, push button and keypad tare, a LB/KG switch, and RS232 output. Large 5 (127mm) diameter heavy-duty rubolene wheels make the scales easy to roll wherever they are needed.
| Detecto 5852F-204 and Detecto 8852F-204 Specifications |
| Capacities: |
5852F-210 - $1550
500 lb x .2 lb / 220 kg x .1 kg
8852F-210 - $1550
1,000 lb x .5 lb / 440 kg x .2 kg |
| Platform: |
19 x 28 / 483mm x 711mm |
| Wheels: |
Large 5 (127mm) diameter heavy-duty rubolene |
| Shipping Weight: |
108 lb / 49 kg |
| Indicator: |
Cardinal Model 210 - 6-digit, 7-segment, .6 (14mm) high LED |
| Annunciators: |
Zero, gross, tare, net, low battery, stable, lb, oz, kg, g, t, T, PWC-1/under, PWC-2/accept, and PWC-3/over |
| Indicator Dimensions: |
9 W x 7 H x 2.75 D (229mm W x 178mm H x 70mm D) |
| Indicator Housing: |
NEMA 4X/IP66 Stainless steel |
| Cover, Base, and Indicator Mount: |
Stainless steel |
| Units: |
Pounds, kilograms, ounces, grams, or pounds/kilograms |
| Indicator Keyboard: |
22 keys |
| Power: |
90 to 260 VAC, 50 or 60 Hz and optional camcorder battery CAM-350 type |
| Sample Rate: |
1 - 50 sample per second, selectable |
| Resolution: |
1 part in 100,000 displayed
1 part in 1,000,000 internal |
| I/O: |
1 bidirectional RS232 (20mA)
1 output only RS232 (20mA) |
|
|
