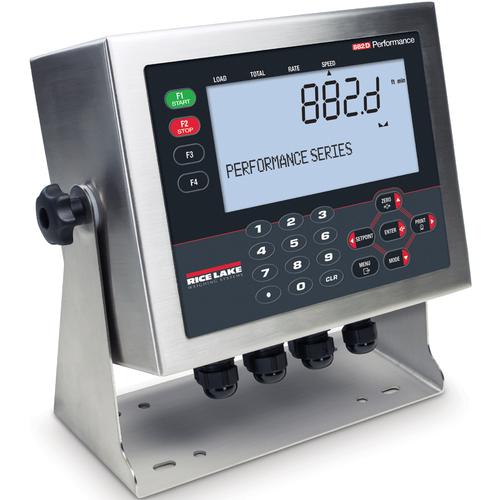

Rice Lake 882D Belt Scale Integrator 120 VAC |
|
Specifically designed with belt scales in mind, the 882D delivers the required data in a compact package. Featuring iRite™ programmability, it can be customized to control product dosing or manage metering. The 882D’s backlit display makes viewing rate, speed and time convenient in virtually any lighting condition more ... |
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
Please call 1-800-832-0055 if you need help with your order.
|
|
|
|
|
|
Features
Specifically designed with belt scales in mind, the 882D delivers the required data in a compact package. Featuring iRite™ programmability, it can be customized to control product dosing or manage metering. The 882D’s backlit display makes viewing rate, speed and time convenient in virtually any lighting condition. The 882D is also protected from the elements in an IP66 stainless steel enclosure, making BCi Weigh Frame it ideal for use in harsh environments.
- LCD display, seven-digit, seven-segment weight display, 3 x 20 pixelated prompt area
- RS-232 or RS-485 serial port
- USB device port connects directly to a PC
- Ethernet TCP/IP polled or continuous
- AC or DC models
- Hardware slot for two option card
- Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
- Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
- Setpoints for control and alarms
- Four onboard digital I/O channels
- Four programmable ticket formats up to 1,000 characters
- Filter settings for light, medium and heavy noise
- Speed inputs
Options
Analog Output |
16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA |
Relay Board |
Four dry contract relays; DC Max: 30 VDC at 3 amps AC max: 250 VAC at 3 amps per contact |
EtherNet/IP Interface |
According to EN 50325-2 |
Profinet Interface |
According to IEC 61784 (CPF-3/3) |
Modbus/TCP Interface |
Up to 8 bytes of I/O data, 100 Mbps full duplex Ethernet |
DeviceNet Interface |
According to EN 50325-2 |
Profibus DP Interface |
According to EN 50170 |
EtherCAT |
According to IEEE 802.3 |
Digital I/O |
24 channel I/O expansion boards available |
Weight:
12.00 lb
|
2 Year Manufacture Warranty
|
Specifications
Model |
882D |
177708 |
180847 |
184683 |
Power |
120V Power - AC |
220 VAC Euro power cord |
9-36 VDC |
Power Consumption |
AC: 15 watts; DC: 20 watts |
Excitation Voltage |
10 VDC 8 x 350 ω (16 x 700ω) load cells |
Analog Signal Input Range |
-45 mV to 45 mV |
Analog Signal Sensitivity: |
0.3 µV/graduation minimum at 7.5 Hz; 1.0 µV/graduation typical at 120 Hz |
Sample Rate |
7.5 to 120 Hz, software selectable |
Resolution |
Internal: 8 million counts 23 bit weight display: 100,000 |
System Linearity |
± 0.01% full scale |
Digital I/O |
Four I/O onboard primary keys, pseudo functions, batching functions |
Circuit Protection |
18 KV, 10 V/meter |
Communication Ports |
RS-232 full duplex or RS-485 half duplex; USB micro A/B connector 2.0; Ethernet TCP/IP |
Pulse Input |
Dual inputs for redundancy |
Display |
LCD display, seven-digit, seven-segment weight display, 3 x 20 pixelated prompt area |
Operating Temperature |
14° F to 122° F (-10° C to 50° C) |
Status Annunciators |
Load, total, rate, speed, zero |
Keyboard: |
Flat membrane panel, tactile feel |
Dimensions (W x H x D) |
Universal: 9.87 x 9.38 x 4.33 |
Weight |
Universal: 12 lb (5.4 kg) |
Rating |
IP66 |
Material |
Stainless steel |
Warranty |
Two-year limited warranty |
Approvals |
CE Marked (pending) UL/c-UL Listed (pending) |
|
|
|
|
|
|
|
|
