Rice Lake CW-90X Checkweigher Indicator 115 V

Rice Lake - Calibration Weights - Medical Scales
Performance Under Extreme Pressure For heavy washdown environments and HACCP requirements, choose Rice Lake's CW-90X digital weight indicator. The CW-90X features the toughest keypad available. This rigid piezo device is made to withstand sharp knife-point contacts, and is resistant to most contaminants and liquids more ...
Scales > Indicators & Remote Displays > Indicators & Remote Displays

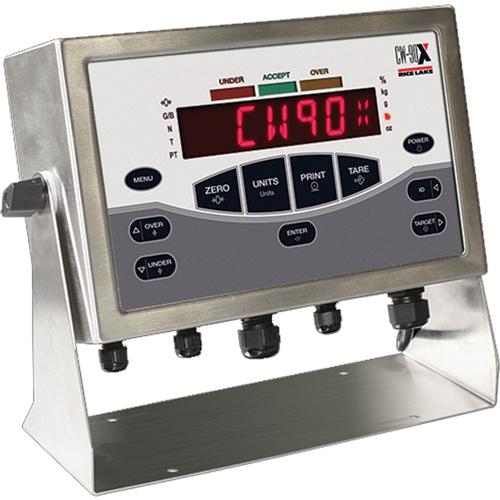

Rice Lake CW-90X Checkweigher Indicator 115 V

Specifications Chart


Have Questions?
oremail Us
Our Staff will be glad to help

Download PDF
Rice Lake CW-90X Checkweigher Indicator 115 V

Price: $738.00


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

Rice Lake
SKU: 105972

Features

Performance Under Extreme Pressure For heavy washdown environments and HACCP requirements, choose Rice Lakes CW-90X digital weight indicator. The CW-90X features the toughest keypad available. This rigid piezo device is made to withstand sharp knife-point contacts, and is resistant to most contaminants and liquids.

The configuration menu of the CW-90X is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operators needs. The CW-90X will store detailed information for up to 50 separate IDs (expandable with WeighVault), allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.

    Standard Features
  • PreVent™ breather vent
  • Storage for up to 50 IDs
  • Unit of measure: kg, gm, lb, oz, lb/oz
  • LED display, 0.8 in, six-digit, 14-segment
  • Two full duplex serial ports
  • Configurable print formats
  • Audit trail tracking
  • Optional communications: Ethernet, USB or fiber optic
  • Four configurable digital I/O
  • Reflash memory to upgrade firmware
  • Auto print capability
    CW-90
  • Membrane keypad consisting of zero, units, print, tare, over, under, ID, target, 0-9, clear, decimal, enter, menu, power
  • 304 stainless steel, IP66 rated
  • Time and date
    CW-90X
  • Piezo keypad consisting of zero, units, print, tare, over, under, ID, target, enter, menu, power
  • 304 stainless steel, IP69 K rated
  • Battery backed time and date

Weight: 7.00 lb
3 Year Manufacture Warranty
Other Rice Lake Checkweigher Indicators

CW-90 Checkweigher Indicator 115 V

$697.50

CW-90X Checkweigher Indicator 115 V

$738.00

You are viewing this product

Specifications

Model CW-90 CW-90X
105970 105972
Power Power - AC Line voltages: 115 VAC
Frequency: 50-60 Hz
Power Consumption 1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W)
Excitation Voltage +5 VDC 8 x 350ω or 16 x 700ω load cells
Analog Signal Input Range -0.5 mV/V - 4.5 mV/V
Analog Signal Sensitivity 0.3 uV/graduation minimum
1.5 uV/graduation recommended
A/D Sample Rate 7.5 to 960 Hz software selectable
Legal For Trade NTEP CC 08-092 Class III/IIIL 10,000d
Measurement Canada AM-5710
OIML R76/2006-GBI-10.02
EU Test Certificate GB-1385
UL/cUL Listed
CE marked
Resolution Display: 100,000 graduations maximum
Circuit Protection ESD, EMI, RFI protected
Communication Ports Printer port: RS-232 full duplex 20mA simplex
EDP Port: RS-232 full duplex
Baud rates: 300 to 38,400 seven or eight data bits; even, odd or no parity
System Linearity ± 0.01% full scale
Digital I/O Four channels on CPU board
Circuit Protection RFI, EMI, ESD protection
Status Annunciators Designators for percent, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion
Operating Temperature 14° F to 104° F (-10° C to 40° C)
Display Large 0.8 in 14-segment, six-digit high-intensity red LED display
Keys/Buttons Membrane keypad, 23 keys with international symbols Piezo keypad, 11 keys with international symbols
Rating/Material IP66, stainless steel IP69K, stainless steel
Warranty Two-year limited warranty Three-year limited warranty
Approvals NTEP CC 08-092,
Class III/IIIL 10,000d
Measurement Canada AM-5710
OIML R76/2006-GBI-10.02
EU Test Certificate GB-1385
UL/cUL Listed
CE marked

Optional Accessories


Rice Lake 77142 Ethernet TCP/IP for CW-90 and CW90X
more info
Rice Lake 77142 Ethernet TCP/IP for CW-90 and CW90X
more info
Price: $360.00
In Stock
btn buy
Rice Lake 77142 Ethernet TCP/IP for CW-90 and CW90X
Rice Lake 108671 Wireless LAN card Wi-Fi 802.11 A/B for CW-90 and CW90X
more info
Rice Lake 108671 Wireless LAN card Wi-Fi 802.11 A/B for CW-90 and CW90X
more info
Price: $513.00
In Stock
btn buy
Rice Lake 77142 Wireless LAN card Wi-Fi 802.11 A/B for CW-90 and CW90X
Rice Lake 93245 USB Port (PC connection only) cable included for CW-90 and CW90X
more info
Rice Lake 93245 USB Port (PC connection only) cable included for CW-90 and CW90X
more info
Price: $144.00
In Stock
btn buy
Rice Lake 93245 USB Port (PC connection only) cable included for CW-90 and CW90X
Rice Lake 171968 Firmware download cable for CW-90 and CW90X
more info
Rice Lake 171968 Firmware download cable for CW-90 and CW90X
more info

Rice Lake 171968 Firmware download cable for CW-90 and CW90X
Rice Lake 96736 Fiber optic board for CW-90 and CW90X
more info
Rice Lake 96736 Fiber optic board for CW-90 and CW90X
more info
Price: $180.00
In Stock
btn buy
Rice Lake 96736 Fiber optic board for CW-90 and CW90X
Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X, 882IS
more info
Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X, 882IS
more info
Price: $121.50
In Stock
btn buy
Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X
Rice Lake 117358 WeighVault™ for CW-90 software (requires part number 77142 or 108671)  for CW-90 and CW90X
more info
Rice Lake 117358 WeighVault™ for CW-90 software (requires part number 77142 or 108671) for CW-90 and CW90X
more info
Price: $252.00
In Stock
btn buy
Monitor Your Production with WeighVault

This specialized PC software for use with Rice Lake’s CW-90 and CW-90X checkweighers makes data entry easier than ever while expanding data storage and reporting abilities.

As weighing occurs, WeighVault stores the details of each transaction for either a single scale or multiple scales. A variety of transaction and productivity reports can then be exported into word processing, spreadsheet or PDF formats for better control over weight data and overall business performance.

Predicting growth? There’s no better reason to explore WeighVault software. WeighVault users can boost their checkweigher’s 50 product ID storage limitation to nearly limitless potential, and manage as many scales as necessary. And with a direct connection to your PC you’ll be able to quickly program, edit and manage each checkweigher and each unique product ID right from your PC’s keyboard.

  • Specialized PC software makes data entry easy
  • Boost product ID storage to nearly limitless potential, and manage as many scales as necessary
  • Eliminates front-panel entry of ID parameters
  • Quickly program, edit and manage scales and each unique product ID right from your PC
  • Stores the details of each transaction for either a single scale or multiple scales
  • Collects data as transactions occur and provides detailed transaction and productivity reports
  • Allows users to add, edit and access IDs over a network connection
  • Reports can be exported into word processing, spreadsheet of PDF formats
