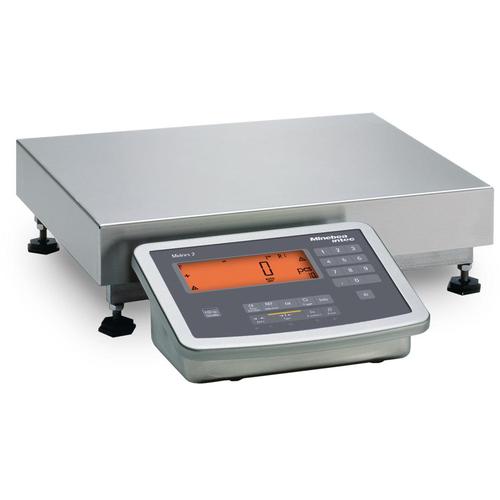

Minebea MW2S1UE-10CC Midrics Industrial Scale With Galvanized/Painted frame 15lbs (6kg) x 0.0005 (0.0002kg)
The new Sartorius Midrics Extend Bench Scale line is available! With a choice of four Combics platform sizes in either mild steel or stainless steel and four capacities, these scales are ideal for any industrial weighing application. These preconfigured bench scales allow for fast delivery time and no hassle ordering. more ...
Scales >
Industrial Scales >
Bench Scales
Optional Warranty
Features
Midrics/Combics Extend Bench Scales- Midrics 2 Indicator Stainless Steel With MIS2-U
Midrics/Combics Extend Bench Scales- Midrics 2 Indicator: 20mm Backlit 14-segment LCD display, bar graph readout, Integrated A/D converter for connecting analog platforms, AISI 304 stainless steel housing, IP65 protection, Class III NTEP Approved.
Applications: weighing, counting, checkweighing, classification (into three or five classes), totalizing, net-total, weighing in percent, neutral measurement.
Combics Mild Steel Base Features MW2P1: mild steel platform, galvanized base frame, NEMA4/IP65 protection rating.
Combics Stainless Steel Base MW2S1: AISI 304 stainless steel platform, IP67 protection rating MW2S4URE-250GG-I: four strain gauge load cells.
The new Sartorius Midrics Extend Bench Scale line is available! With a choice of four Combics platform sizes in either mild steel or stainless steel and four capacities, these scales are ideal for any industrial weighing application. These preconfigured bench scales allow for fast delivery time and no hassle ordering.
Features
Display: backlit, 14-segment, 20 mm LCD for weight readouts
Integrated A/D-converter for connecting analog platforms
Material: AISI 304 stainless steel IP-Protection: IP65
Optional RS-232, RS-485, RS-422, 4-20mA
Technical Specifications
Maximum readability
15,000 digits
Bridge impedance
83 to 2000 ohms
Measuring signal variation
0 mV to 29,4 mV
Measuring signal/verification scale interval
min. 0,672 µ V/e
Sensitivity
4 million digits max. (internal resolution)
Digital, protected interface
According to EN45501
Data interface
Optional: RS-232, RS-485, RS-422, 4-20mA
Additional interface port
2
Display
20mm LCD, 14-segment, backlit
Temperature range
-10°C bis +40°C
Power cord length
3 m
Net weight (approx.)
2,3 kg
Limitation of emissions
Acc. to EN61326-1, Class B (IEC61326-1)
Defined immunity to interference
Acc. to EN 61326-1, industrial environments (IEC61326-1)
Electrical safety
Acc. to EN61010-1 (IEC 61010-1)
Load cell connection -Input voltage -Available sensor technology
-8,4 V 4 or 6-conductor technology
Number of verification scale intervals (configured for single range, multiple range model)
<=3000e, 2x 3000e according to EN 45501
Load cell connection -Input voltage -Available sensor technology
-8,4 V 4 or 6-conductor technology
Housing -Material -Type of protection acc. to EN 60529
Stainless steel: AISI type 304 IP65
Power supply DC power supply AC power supply Battery operation
100-240 VAC (–15/+10%), 50-60 Hz, max.17W/23VA Optional 24 VDC (+/-5%), max.12 W Optional 24 VAC (+/-5%), 50-60 Hz, max.12W Optional via internal or external rechargeable battery pack
Performance specifications of the built-in A/D converter: weighing capacity
Up to 256t
Dimensions X:
10.00
Y:
10.00
Other Minebea Intec Midrics Painted Steel Bench Scales - MW2 - Level 2
Minebea MW2P1U-6DC-L Midrics Industrial Scale With Applications and Galvanized/Painted Frame 15 x 0.001 lb
$1,512.00
Minebea MW2P1U-3DC-L Midrics Industrial Scale With Galvanized/Painted frame 6 x 0.0005 lb
$1,512.00
Minebea MW2P1U-15DC-L Midrics Industrial Scale With Applications and Galvanized/Painted Frame 30 x 0.002 lb
$1,512.00
Minebea MW2P1U3DCLU Midrics Complete Bench Scales Painted Scales 12.5 x 9.5 5lb x 0.001lb
$1,512.00
Minebea MW2P1U15DCL U Midrics Complete Bench Scales Painted Scales 12.5 x 9.5 25lb x 0.005lb
$1,512.00
Minebea MW2P1U6DCLU Midrics Complete Bench Scales Painted Scales 12.5 x 9.5 10lb x 0.002lb
$1,512.00
Minebea MW2P1U-30ED-L Midrics Industrial Scale With Applications and Galvanized/Painted Frame 60 x 0.005 lb
$1,581.30
Minebea MW2P1U-60ED-L Midrics Industrial Scale With Applications and Galvanized/Painted Frame 120 x 0.01 lb
$1,581.30
Minebea MW2P1U60EDL U Midrics Complete Bench Scales Painted Scales 15.75 x 11.8 100lb x 0.02lb
$1,581.30
Minebea MW2P1U30EDL U Midrics Complete Bench Scales Painted Scales 15.75 x 11.8 50lb x 0.01lb
$1,581.30
Minebea MW2P1U-150FE-L Midrics Industrial Scale With Applications and Galvanized/Painted Frame 300 x 0.02 lb
$1,868.40
Minebea MW2P1U-60FE-L Midrics Industrial Scale With Applications and Galvanized/Painted Frame 120 x 0.01 lb
$1,868.40
Minebea MW2P1U-30FE-L Midrics Complete Bench Scales Painted Scales 19.5 x 15.75 60 x 0.005 lb
$1,868.40
Minebea MW2P1U150FE LU Midrics Complete Bench Scales Painted Scales 19.5 x 15.75 250lb x 0.05lb
$1,868.40
Minebea MW2P1U60FELU Midrics Midrics Complete Bench Scales Painted Scales 19.5 x 15.75 100lb x 0.02lb
$1,868.40
Minebea MW2S1UE-10CC Midrics Industrial Scale With Galvanized/Painted frame 15lbs (6kg) x 0.0005 (0.0002kg)
$1,462.50
You are viewing this product
Minebea MW2PIUE50-DDI Midrics Industrial Scale With Galvanized/Painted frame 60lbs (30kg) x 0.002 (0.001kg)
$1,530.00
Minebea MW2S1UE-100E Midrics Industrial Scale With Galvanized/Painted frame 150lbs (60kg) x 0.005 (0.002kg)
$1,809.00
Specifications
Midrics/Combics Extend Bench Scales- Midrics 2 Indicator Stainless Steel With MIS2-U
Model
MW2S1UE-10CC
MW2S1UE-50DI
MW2S1UE-100E
MW2S1URE-25G
Dimension
10" x 10"
12” x 12”
18” x 18”
24” x 24”
Capacity / Readability (Lbs.)
15 x 0.0005
60 x 0.002
150 x 0.005
300 x 0.01
Capacity / Readability (Kg.)
6 x 0.0002
30 x 0.001
60 x 0.002
150 x 0.01
Legal For Trade
NO
Cable Platform (ft.)
10
Data Interface
ptional: RS-232, RS-485, RS-422, 4-20mA
Display
0mm LCD, 14-segment, backlit
Net weight (approx.)
2,3 kg
Power supply DC power supply AC power supply Battery operation
100-240 VAC (–15/+10%), 50-60 Hz, max.17W/23VA Optional 24 VDC (+/-5%), max.12 W Optional 24 VAC (+/-5%), 50-60 Hz, max.12W Optional via internal or external rechargeable battery pack
