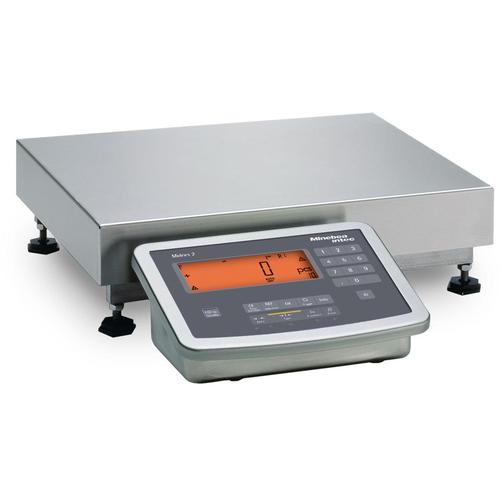

Minebea MW2P1UE-10CC Midrics Extend Mild Steel With MIS2-U 15lbs (6kg) x 0.0005 (0.0002kg) |
|
| The new Minebea Midrics Extend Bench Scale line is available! With a choice of four Combics platform sizes in either mild steel or stainless steel and four capacities, these scales are ideal for any industrial weighing application. These preconfigured bench scales allow for fast delivery time and no hassle ordering. more ... |
|
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
|
|
Optional Warranty
|
Features
Midrics/Combics Extend Bench Scales- Midrics 2 Indicator Mild Steel With MIS2-U
Midrics/Combics Extend Bench Scales- Midrics 2 Indicator: 20mm Backlit 14-segment LCD display, bar graph readout, Integrated A/D converter for connecting analog platforms, AISI 304 stainless steel housing, IP65 protection, Class III NTEP Approved.
Applications: weighing, counting, checkweighing, classification (into three or five classes), totalizing, net-total, weighing in percent, neutral measurement.
Combics Mild Steel Base Features MW2P1: mild steel platform, galvanized base frame, NEMA4/IP65 protection rating.
Combics Stainless Steel Base MW2S1: AISI 304 stainless steel platform, IP67 protection rating MW2S4URE-250GG-I: four strain gauge load cells.
The new Sartorius Midrics Extend Bench Scale line is available! With a choice of four Combics platform sizes in either mild steel or stainless steel and four capacities, these scales are ideal for any industrial weighing application. These preconfigured bench scales allow for fast delivery time and no hassle ordering.
Features
- Display: backlit, 14-segment, 20 mm LCD for weight readouts
- Integrated A/D-converter for connecting analog platforms
- Material: AISI 304 stainless steel IP-Protection: IP65
- Optional RS-232, RS-485, RS-422, 4-20mA
| Technical Specifications
|
| Maximum readability |
15,000 digits |
| Bridge impedance |
83 to 2000 ohms |
| Measuring signal variation |
0 mV to 29,4 mV |
Measuring signal/verification
scale interval |
min. 0,672 µ V/e |
| Sensitivity |
4 million digits max. (internal resolution) |
| Digital, protected interface |
According to EN45501 |
| Data interface |
Optional: RS-232, RS-485, RS-422, 4-20mA |
| Additional interface port |
2 |
| Display |
20mm LCD, 14-segment, backlit |
| Temperature range |
-10°C bis +40°C |
| Power cord length |
3 m |
| Net weight (approx.) |
2,3 kg |
| Limitation of emissions |
Acc. to EN61326-1, Class B (IEC61326-1) |
| Defined immunity to interference |
Acc. to EN 61326-1, industrial environments (IEC61326-1) |
| Electrical safety |
Acc. to EN61010-1 (IEC 61010-1) |
Load cell connection
-Input voltage
-Available sensor technology |
-8,4 V
4 or 6-conductor technology |
Number of verification scale intervals
(configured for single
range, multiple range model) |
<=3000e, 2x 3000e according to EN 45501 |
Load cell connection
-Input voltage
-Available sensor technology |
-8,4 V
4 or 6-conductor technology |
Housing
-Material
-Type of protection acc. to EN 60529 |
Stainless steel: AISI type 304
IP65 |
Power supply
DC power supply
AC power supply
Battery operation |
100-240 VAC (–15/+10%), 50-60 Hz, max.17W/23VA
Optional 24 VDC (+/-5%), max.12 W
Optional 24 VAC (+/-5%), 50-60 Hz, max.12W
Optional via internal or external rechargeable battery pack |
Performance specifications of the built-in
A/D converter: weighing capacity |
Up to 256t |
Dimensions
X:
15.00
Y:
15.00
Weight:
18.00 lb
|
|
Other Minebea Intec Midrics Extend with MIS2-U
|
Specifications
| Midrics/Combics Extend Bench Scales- Midrics 2 Indicator Mild Steel With MIS2-U
|
| Model |
MW2P1UE-10CC |
MW2P1UE-50DDI |
MW2P1UE-100EE |
MW2P1URE-25G |
| Dimension |
10" x 10" |
12” x 12” |
18” x 18” |
24” x 24” |
| Capacity / Readability (Lbs.) |
15 x 0.0005 |
60 x 0.002 |
150 x 0.005 |
300 x 0.01 |
| Capacity / Readability (Kg.) |
6 x 0.0002 |
30 x 0.001 |
60 x 0.002 |
150 x 0.01 |
| Legal For Trade |
NO |
| Cable Platform (ft.) |
10 |
| Data Interface |
ptional: RS-232, RS-485, RS-422, 4-20mA |
| Display |
0mm LCD, 14-segment, backlit |
| Net weight (approx.) |
2,3 kg |
Power supply
DC power supply
AC power supply
Battery operation |
100-240 VAC (–15/+10%), 50-60 Hz, max.17W/23VA
Optional 24 VDC (+/-5%), max.12 W
Optional 24 VAC (+/-5%), 50-60 Hz, max.12W
Optional via internal or external rechargeable battery pack |
|
|
|
