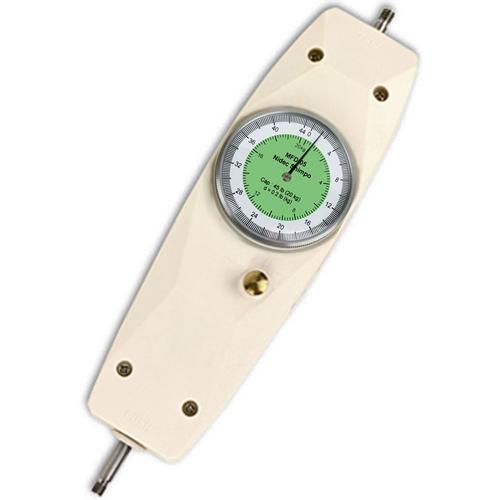

Name: Shimpo MFD-05 Push Pull Mechanical Force Gauge 45 x 0.2 lb and 20 x 0.2 kg
Brand: Shimpo
SKU: 46709
Price: 189.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

Shimpo MFD-05 Push Pull Mechanical Force Gauge 45 x 0.2 lb and 20 x 0.2 kg
So simple anyone can use, the economical MFD mechanical force gauges with dual kg/lb scales are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications. The peak force operation mode features an easy push-button reset, especially helpful for repetitive testing in an assembly line or in quality control. more ...

Test Equipment > Force Gauges > Mechanical Force Gauges

Shimpo MFD-05 Push Pull Mechanical Force Gauge 45 x 0.2 lb and 20 x 0.2 kg

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Features

So simple anyone can use, the economical MFD mechanical force gauges with dual kg/lb scales are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications. The peak force operation mode features an easy push-button reset, especially helpful for repetitive testing in an assembly line or in quality control.

The large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings. The MFD was ergonomically designed for handheld use, but may also be used with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate.

Calibration is achieved by a set of precisely matched springs which are overload protected. All standard Series MFD gauges include a protective carrying case, calibration certificate, plus attachment adapters.

Dual kilogram (kg) and pound (lb) units allows flexible usage in testing to multiple standards
Precision gauge movement provides a quick response for instantaneous analysis
Measures Tension and Compression Forces - Only one gauge required
Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
Smooth mechanical operation with precise action produces repetitive, proper readings
Peak Mode Reset is ideal for repetitive peak testing applications
Compact, light-weight, ergonomic design is perfect for handheld use
Rear threaded inserts makes it easy to mount to test stands

Carrying case
flat head
hook
chisel
notched head
cone head
extension rod
mounting screws

Weight: 4.00 lb

1 Year Manufacture Warranty

Other Shimpo MFD Mechanical Dual Scale (LB and KG) Force Gauges

Shimpo MFD-02 Push Pull Mechanical Force Gauge 4.5 x 0.02 lb and 2 x 0.02 kg

MFD-02
Push Pull Mechanical Force Gauge 4.5 x 0.02 lb and 2 x 0.02 kg
$189.00

Shimpo MFD-03 Push Pull Mechanical Force Gauge 11 x 0.05 lb and 5 x 0.05 kg

MFD-03
Push Pull Mechanical Force Gauge 11 x 0.05 lb and 5 x 0.05 kg
$189.00

Shimpo MFD-04 Push Pull Mechanical Force Gauge 22 x 0.1 lb and 10 x 0.1 kg

MFD-04
Push Pull Mechanical Force Gauge 22 x 0.1 lb and 10 x 0.1 kg
$189.00

MFD-05
Push Pull Mechanical Force Gauge 45 x 0.2 lb and 20 x 0.2 kg
$189.00

You are viewing this product

Shimpo MFD-06 Push Pull Mechanical Force Gauge 110 x 0.5 lb and 50 x 0.5 kg

MFD-06
Push Pull Mechanical Force Gauge 110 x 0.5 lb and 50 x 0.5 kg
$189.00

Specifications

Model	MFD-02	MFD-03	MFD-04	MFD-05	MFD-06
Capacity x Dial Graduation	4.5 x 0.02 lb	11 x 0.05 lb	22 x 0.1 lb	45 x 0.2 lb	110 x 0.5 lb
Capacity x Dial Graduation	2 x 0.02 kg	5 x 0.05 kg	10 x 0.1 kg	20 x 0.2 kg	50 x 0.5 kg
Accuracy	±1% F.S.
Display Analog	2 in. diameter (50 mm); rotatable 360° for taring purposes
Live/Peak Mode	Selectable
Needle Update	Immediate
Threaded Insert	4 on back for mounting inserts
Overload Capacity	120% of range
Product Weight	1.25 lb (0.57 kg))
Package Weight	2.2 lb (1 kg))
Warranty	1 year
Included Accessories	Carrying case and attachments (flat head, hook, chisel, notched head, cone head, extension rod), mounting screws
