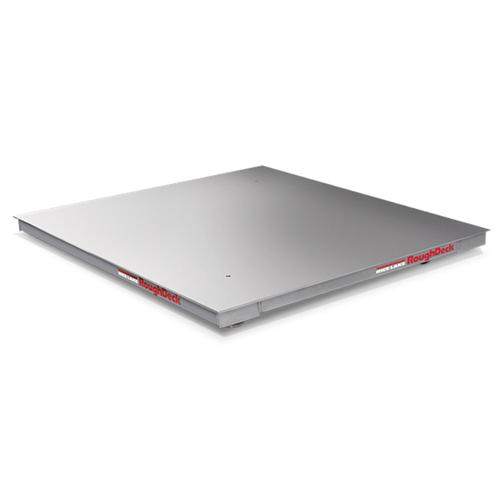

Rice Lake SS-4X4-1K Roughdeck SS 4 ft X 4 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 1000 lb |
|
| The RoughDeck SS floor scale is designed specifically for Legal for Trade applications requiring the added corrosion protection of stainless steel. Applications include dry chemical operations, fertilizer plants and other industries which require non-washdown corrosion resistance. more ... |
|
Scales >
Industrial Scales >
Floor Scales
|
|
|
|
|
|
Features
The Toughest, Most Accurate Floor Scale Available
The RoughDeck SS floor scale is designed specifically for Legal for Trade applications requiring the added corrosion protection of stainless steel. Applications include dry chemical operations, fertilizer plants and other industries which require non-washdown corrosion resistance.
A rigid six-inch, 304 stainless steel channel frame and smooth top plate provide a durable scale deck. For added corrosion resistance, four NTEP Certified stainless steel load cells, a stainless steel TuffSeal summing junction box and EL147HE hostile environment load cell cable complete the RoughDeck SS package.
The channel frame provides added protection by enclosing the load cells, cable and junction box inside, away from chemicals and other industrial elements.
All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.
- Rugged non-corrosive design
- 304 stainless steel construction
- Rigid stainless steel channel frame
- 4 stainless steel NTEP Certified shear-beam load cells
- 20ft of SURVIVOR® EL147HE hostile environment load cell cable
- Side access junction box
- TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
- Smooth stainless steel deck
- 4 adjustable stainless steel SUREFOOT™ support feet
|
1 Year Manufacture Warranty
|
Other Rice Lake Roughdeck SS Stainless Steel Floor Scales
SS-25X25-2K Roughdeck SS 2.5 ft X 2.5 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 2000 lb
$2,425.50
|
SS-3X3-1K Roughdeck SS 3 ft X 3 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 1000 lb
$2,791.25
|
SS-3X3-2K Roughdeck SS 3 ft X 3 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 2000 lb
$2,791.25
|
SS-4X4-1K Roughdeck SS 4 ft X 4 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 1000 lb
$4,004.00
You are viewing this product
|
SS-4X4-5K Roughdeck SS 4 ft X 4 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 5000 lb
$4,004.00
|
SS-4X5-5K Roughdeck SS 4 ft X 5 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 5000 lb
$4,573.80
|
SS-4X4-10K Roughdeck SS 4 ft X 4 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 10000 lb
$5,472.00
|
SS-5X5-5K Roughdeck SS 5 ft X 5 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 5000 lb
$5,802.60
|
SS-4X5-10K Roughdeck SS 4 ft X 5 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 10000 lb
$6,395.40
|
SS-5X5-10K Roughdeck SS 5 ft X 5 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 10000 lb
$7,459.40
|
SS-5X7-5K Roughdeck SS 5 ft X 7 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 5000 lb
$7,687.40
|
SS-5X7-10K Roughdeck SS 5 ft X 7 ft X 3.5 in Stainless Steel Floor Scale - Legal for Trade - Base Only - 10000 lb
$9,834.40
|
|
Specifications
| Model |
SS-25X25-2K |
SS-3X3-1K |
SS-3X3-2K |
SS-4X4-1K |
SS-4X4-5K |
SS-4X4-10K |
SS-4X5-5K |
SS-4X5-10K |
SS-5X5-5K |
SS-5X5-10K |
SS-5X7-5K |
SS-5X7-10K |
| 18663 |
46239 |
18664 |
46241 |
18665 |
18666 |
18667 |
18668 |
18671 |
18672 |
18675 |
18676 |
| Size |
2.5 ft x 2.5 ft x 3.5 in |
3 ft x 3 ft x 3.5 in |
3 ft x 3 ft x 3.5 in |
4 ft x 4 ft x 3.5 in |
4 ft x 4 ft x 3.5 in |
4 ft x 4 ft x 3.5 in |
4 ft x 5 ft x 3.5 in |
4 ft x 5 ft x 3.5 in |
5 ft x 5 ft x 3.5 in |
5 ft x 5 ft x 3.5 in |
5 ft x 7 ft x 3.5 in |
5 ft x 7 ft x 3.5 in |
| Capacity |
2,000 lb (1,000 kg)
| 1,000 lb (500 kg)
| 2,000 lb (1,000 kg)
| 1,000 lb (500 kg)
| 5,000 lb (2,500 kg)
| 10,000 lb (5,000 kg)
| 5,000 lb (2,500 kg)
| 10,000 lb (5,000 kg)
| 5,000 lb (2,500 kg)
| 10,000 lb (5,000 kg)
| 5,000 lb (2,500 kg)
| 10,000 lb (5,000 kg)
|
| Legal For Trade |
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d
AM-5301 |
| End Load Capacity:
|
200% full scale at 1,000 lb - 100% full scale at 2,000 lb and 5,000 lb - 80% full scale at 10,000 lb |
| Junction Box |
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card |
| Access |
Side access junction box |
| Construction |
304 stainless steel |
| Cable |
20ft SURVIVOR® EL147HE hostile environment load cell cable |
| Warranty |
RoughDeck SS weldment five years, load cells two years, all other components one yeaR |
|
|
|
|
|
|
|
