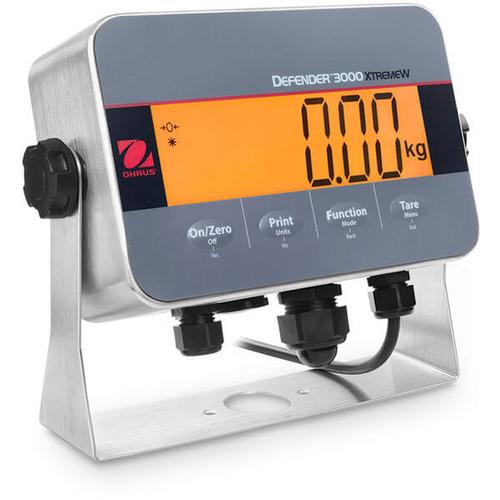

Ohaus i-DT33XW (30678638) Indicator With Stainless Steel Housing 3000 Series |
|
| Ohaus i-DT33XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or where the ability to frequently wash down is a must. The IP66 washdown stainless steel housing indicator features software for Weighing, Parts Counting, Checkweighing and Totalization, more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
Ohaus i-DT33XW Indicator With stainless steel Housing 3000 Series (30678638)
Ohaus i-DT33XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or where the ability to frequently wash down is a must. The IP66 washdown stainless steel housing indicator features software for Weighing, Parts Counting, Checkweighing and Totalization, a large multicolor backlit LCD display, stainless steel mounting bracket, and a built-in bi-directional RS232C for printing or data connectivity.
Applications - Weighing, Parts Counting, Checkweighing, and Totalization
Display - 7 Segment LCD with multicolor backlight
Operation - Internal power supply with power cord (included) or rechargeable battery (included)
Communication - Standard RS232 and optional USB Device or Ethernet
Construction - IP66 stainless steel housing and mounting bracket
- Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode display changes color (yellow/green/red) to alert when within the target weight range.
- Features software for Parts Counting, Checkweighing and Totalization. Includes RS232 with optional second port USB Device or Ethernet for printing or data connectivity.
-
- i-D33P indicator features a durable ABS housing and powder coated steel mounting bracket;
- i-D33XW indicator features an IP66 stainless steel housing and mounting bracket. Display resolution up to 1:30,000; NTEP and Measurement Canada approved to 1:6,000.
Dimensions
X:
8.30
Y:
2.80
Z:
5.80
Weight:
7.10 lb
|
|
Other Ohaus 3000 Series Indicator
|
Specifications
| MODEL |
i-DT33P |
i-DT33XW |
| Construction |
ABS housing, powder coated steel mounting bracket |
304 stainless steel housing and mounting bracket |
| Protection |
IP54 (with optional dust cover) |
IP66 |
| A/D Conversion Rate |
80 Hz |
| Capacity Selections |
Up to 99,999 g/kg/lb/t |
| Maximum Displayed Resolution |
1:30,000 |
| Maximum Approved Resolution |
1:6,000 Class III/IIIL NTEP and Class III/IIIHD Measurement Canada |
| Weighing Units |
g, kg, lb, oz, lb:oz, metric tonnes |
| Application Modes |
Weighing, Counting, Checkweighing, Totalization |
| Display |
6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits |
| Check Indicator |
3 color (red, green, yellow) backlight |
| Keyboard |
4 membrane function keys |
| Auto-zero Tracking |
Off, 0.5 d, 1 d or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Calibration |
Zero, Span or 3 point-Linear |
| Span Calibration |
1 kg or 1 lb to capacity |
| Internal Resolution |
68,500 counts per mV/V per second |
| Digital Filtering/Type |
Averaging |
| Load Cell Excitation Voltage |
5VDC |
| Load Cell Drive |
Up to 6 x 350 ohm load cells |
| Load Cell Input Sensitivity |
Up to 3 mV/V |
| Stabilization Time |
Within 1 second |
| Power |
100-240 VAC / 50/60 Hz Universal Power Supply or C cell battery (Not included) or optional internal rechargeable battery |
100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard rechargeable battery |
| Battery Life |
Up to 360 hours continuous use with backlight off (C cell battery) or up to 100 hours continuous use with backlight off (optional rechargeable battery) |
Up to 100 hours continuous use with backlight off |
| Interface |
RS232 included, Optional second port USB Device or Ethernet |
| Shipping Dimensions |
300 x 265 x 135 mm / 11.8 x 10.4 x 5.3 in |
| Product Dimensions (with bracket) |
251.6 x 177 x 81 mm / 9.9 x 7.0 x 5.3 in |
256 x 204 x 74 / 10.1 x 8 x 2.9 in |
| Approx. Net Weight |
1.4 kg / 3.1 lb |
3 kg / 6.6 lb |
| Approx. Shipping Weight |
1.8 kg / 4 lb |
3.4 kg / 7.5 lb |
| Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |
|
|
|
|
* within the 48 continental US States
|
|
