Ohaus VX32XW10000L 4 x 4 Floor Scale, 10000lb X 2lb |
|
| The OHAUS VX Series is a portable low-profile floor platform and indicator scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses. more ... |
|
Industrial Scales >
Floor Scales >
5001 lb to 10000 lb
|
View Full Detail Page
|
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
10000 lbx 2 lb
Pan Size
4 x 4 ft
|
|
|
|
|
|
|
|
|
Features
Performance, Ruggedness, Ohaus Quality & Value
The OHAUS VX Series is a portable low-profile floor platform and indicator scale package. It is the ideal
solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments,
as well as startup businesses. Quick connects and factory calibration allows the package to operate
out-of-the-box with minimal setup. This time saving solution combines a 5000d NTEP approved floor scale
(VX2500L and VX5000L) with four analog sealed load cells, and a stainless steel NEMA 4X/IP66 indicator
(T32XW) featuring an RS232 interface, high-visibility backlit LCD display, counting function and easy-tooperate
positive feedback keys.
Model Number |
VX32XW2500L |
VX32XW5000L |
VX32XW10000L |
VX32XW5000X |
VX32XW10000X |
 |
 |
 |
 |
 |
Capacity x Readability |
2,500 lb x 0.5 lb
1,000 kg x 0.2 kg |
5,000 lb x 1 lb
2,200 kg x 0.5 kg |
10,000 lb x 2 lb
4,500 kg x 1 kg |
5,000 lb x 1 lb
2,200 kg x 0.5 kg |
10,000 lb x 2 lb
4,500 kg x 1 kg |
Dimensions |
4’ x 4’ x 4.5” - 1,219 x 1,219 x 115 mm |
5’ x 5’ x 4.5” - 1,524 x 1,524 x 115 mm |
Resolution |
NTEP 5000d |
NTEP 5000d |
NTEP 5000d |
NTEP 5000d |
NTEP 5000d |
Indicator Model |
T32XW |
| Indicator Construction |
NEMA4X/IP66 Stainless Steel |
| Weighing Units |
lb, oz, lb-oz, kg, g |
| Modes |
Weighing, Counting* (min APW 1d) |
| Display |
1 in / 25 mm high, 6-digit, 7-segment, bright white backlit LCD |
| Keypad |
4-button, raised with tactile positive feedback membrane switches |
| Stabilization Time |
Within 2 seconds |
| Auto-zero Tracking |
Off, 0.5, 1 or 3d |
| Zeroing Range |
0%, 2% or 100% of capacity |
| Span Calibration |
5 lb or kg to 100% of capacity |
| Interface |
RS232C, bi-directional |
| Power |
100-240 VAC / 50-60 Hz, internal power supply |
| Indicator Dimensions |
8.3 x 2.8 x 5.8 in / 212 x 71 x 149 mm |
Net Weight |
185 lb / 84 kg |
437 lb / 198 kg |
280 lb / 127 kg |
660 lb / 300 kg |
Shipping Weight |
259 lb / 118 kg |
509 lb / 231 kg |
349 lb / 158 kg |
729 lb / 331 kg |
| Scale Shipping Dimensions (WxDxH) |
60 x 48 x 14 in
1,524 x 1,220 x 356 mm |
72 x 60 x 14 in / 1,829 x 1,524 x 356 mm |
| Material |
Painted Carbon Steel, treaded surface, fixed top plate, thickness 1/8” (up to 5000lb), 5/16” (10,000lb) |
| Maximum Central Load |
100% of maximum capacity |
| Safe End Load Capacity |
100% of maximum capacity |
| Load Cell |
4 x Shear Beam, IP67, nickel plated alloy steel |
| LC Output Impedance / Excitation Voltage |
350 Ù ± 3 Ù / 10V recommended~15V max, AC/DC |
| Junction Box |
Side panel access, NEMA 4X/IP67 Sealed Stainless Steel |
| Feet |
4 x fixed bolt design, adjustable height |
| Operating Temperature |
50°F to 104°F / 10 °C to 40 °C |
|
1 Year Manufacture Warranty
|
Other Ohaus VX32XW Floor Scales
| Image |
Name |
Price |
|
|
$2,177.91
|
|
|
$2,177.91
|
|
|
$2,492.91
|
|
|
|
$2,755.62
|
|
|
$3,142.44
|
|
|
| |
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus STP-103 Palm-Sized Thermal Printer
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
|
|
more info
|

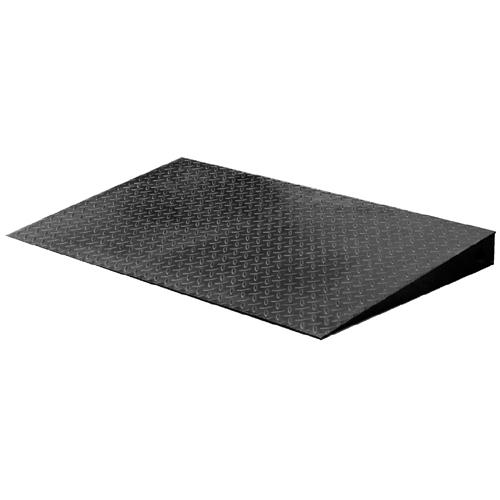

Ohaus 80252795 Floor Ramp 4 ft Wide for VX32XW10000L Floor Scale
Ohaus 80252795 Floor Ramp 48" Wide for VX32XW10000L Floor Scale
|
|
more info
|
Ohaus SF40A Portable Dot-Matrix Impact Printer
OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
- Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
- Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
- Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
|
|
|
|
|
|
|
|
|
