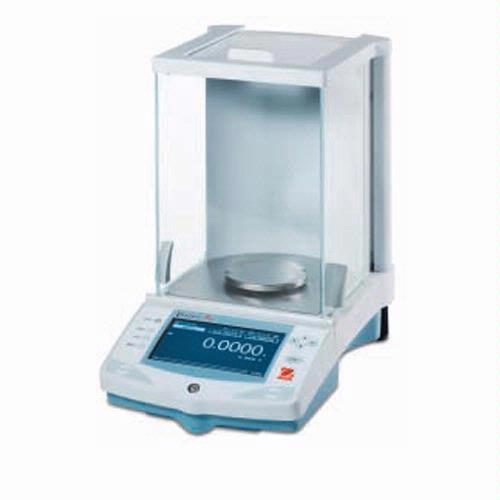

Ohaus VP-213CN Voyager Precision Balances, 210 g x 0.001 g - Draftshield - Legal for Trade
A full featured laboratory balance with multiple weighing modes and functions. 7 Built-in application modes plus below balance weighing: animal weighing, parts counting, percent weighing, check weighing, filling and gross/net/tare. more ...
When your applications demand more than a standard balance, the new Ohaus Voyager® Pro is up to the task. Voyager Pro´s Advanced Applications simplify even the most complex laboratory measurements. Whether it’s determining the difference between initial and residual weights or calculating the density of solids and liquids, Voyager Pro eliminates the need for time consuming manual calculations and data logging.
Advanced in applications but not in operation. With Voyager Pro´s dot matrix display and intuitive user interface, balance setup and use is effortless. For superior weighing performance, Voyager Pro´s AutoCal™ feature automatically calibrates the balance when it senses a temperature change sufficient enough to affect weighing accuracy.
The Voyager Pro also includes an ergonomic leveling system; cursor keys for menu navigation and balance setup; one function per key; auxiliary port; menu and calibration lock-out switch; factory reset option; spill gutter; removable draft shield doors.
Standard Features on both the Voyager Pro Analytical and the Voyager Pro Precision
AutoCal automatic internal calibration system
The most advanced application modes in the industry, including:
Statistical Quality Control (SQC)
Standard application modes including:
Applications library to store and quickly recall past procedures
Brilliant backlit high resolution dot matrix display with simple navigation windows and menus to guide you through balance functions
User selectable GLP/GMP outputs via RS232 to meet traceability requirements
User selectable filter, stability indicator and auto-zero tracking for use in difficult environments
Five operating languages--English, Spanish, French, German, Italian
Weigh-below hook for below-balance weighing applications
Protective in-use cover and security bracket
Industry leading 5 year warranty and support
0.01 / 0.1
Repeatability (std dev, g)
gram, milligram, ounce, troy ounce, carat, pennyweight, Hong Kong tael, Singapore tael, Taiwan tael, mommes, grain, ticals, Newton, custom
Statistics, Formulation, Differential Weighing, SQC, Density Determination, Pipette Calibration, Parts Counting,. Animal Weighing, Check Weighing, Percent Weighing, Filling, Gross-Net-Tare Weighing
50° to 104°F (10° to 40°C )
LCD Dot Matrix with Back light -- 240 x 128 pixels
100-120 V AC, 220-240 V AC, 50/60 Hz
4.7" (12 cm) diameter
6.8" x 6.8" (17.2 x 17.2 cm) with windshield
Dimensions (W x H x D)
8.3" x 13.8" x 13.8" (21 x 35 x 35 cm)
8.5" x 4" x 13.8" 21.5 x 10.3 x 35 cm
13.2 lbs (6 kg)
11 lbs (5 kg)
Superior Draftshield A large 3-door draftshield is standard on all Voyager Pro Analytical and Voyager Pro Precision balances with a 0.1/1 mg readability. The draftshield design provides optimum draft protection from wind currents for superior balance stability and reproducibility even in challenging environments. the large chamber can accommodate larger vessels and the removable side doors make it easy to clean
Automatic Calibration Voyager Pros standard AutoCal™ calibration feature automatically calibrates the balance when it senses a temperature change sufficient enough to affect weighing accuracy. This feature assures accuracy while saving operational time.
Protective Cover Voyager Pros standard in-use cover is replaceable and protects the display from harsh environments or spills that can ruin the balance.
Large Brilliant Display Voyager Pros high-resolution dot matrix display with backlight enhances viewing in any environment and has adjustable contrast and brightness controls. The display illustrates the weighing results with large numeric indicators and features user definable text fields to illustrate only the information you want! The display also illustrates secondary units, time and date.
Communication Port with GLP/GMP Data Output The standard RS232 communication port offers connectivity and its GLP/GMP data output capability prints time, date, balance, project, user ID, calibration information and weighing information. Simply connect your Voyager Pro to the optional Ohaus SF42 accessory printer and full traceability of weighing procedures is achieved without the need for sophisticated, expensive peripherals.
Innovative Software Voyager Pros innovative user interface combines a dot matrix display with scroll down menus, software prompts and 5 operating languages. Balance setup and use is made simple and easy to follow with no training required. The three application-specific soft-keys allow direct access to features such as calibration, units, sample size and reference information at the touch of a button. An applications library stores and quickly recalls past procedures eliminating the need to re-establish application parameters.
Advanced in applications but not in operation. With Voyager Pros dot matrix display and innovative user interface, balance setup and use is effortless. For superior weighing performance, Voyager Pros AutoCal™ feature automatically calibrates the balance when it senses a temperature change sufficient enough to affect weighing accuracy.
Statistical Quality Control (SQC)
The SQC feature is extremely useful during various types of process filling operations when it is desired to monitor and control the process to eliminate under and over filling. Provisions are made in the balance to accommodate the weight of various packaging methods. During operation, parameters of the packaged product are set into the balance such as packaging weight, acceptable weight limits and non-acceptable weight limits of the product.
These weight limits are identified as +T1, +T2, NOMINAL and -T1, -T2. As samples are weighed and stored in the balance, a trend analysis is developed and displayed on the balance. Up to 25 samples in a batch with up to 10 batches are visible on a trend screen for quality control purposes. Each batch of samples is shown on the display which indicates the maximum/minimum standard deviation and mean values for each batch. An ongoing examination of the relative deviation of the samples along with other statistical data can be viewed and is stored. By observing the results of the VIEW TRACE screen, you can effectively monitor the filling process operation.
Statistics are used when it is desired to compare a number of samples along with other statistical data. A minimum of three samples are required in this program. Statistics contains menu options which include: number of samples, maximum, minimum, difference, sum, mean, standard deviation, relative deviation, auto sample, and auto print. Weighing, Animal Weighing, Check Weighing and Filling application modes can also be linked to the Statistics mode to provide statistical data.
Differential weighing stores tare and weight values so samples can be dried or processed and the difference in weight be calculated. Up to 80 samples can be stored. The balance has the capability to work with one or two different containers or no container at all.
Pipette calibration checks the accuracy and precision values of pipettes by weight analysis. An analytical balance is recommended for maximum accuracy. The balance is capable of recording data from 3 to 30 samples of each pipette tested. The density table for water is included and if liquid is used for pipette calibration, Voyager Pro will accept the alternate liquids density in g/cc at current room temperature. Since all calculations are made within the balance, it is also required that you know the atmospheric pressure which has to be entered.
Four methods of density determinations can be made with the Voyager Pro balance. These are:
Solids more dense than water
Solids less dense than water
Porous material (impregnated with oil)
An accessory density determination kit is designed to be used with Ohaus Voyager Pro balances. A built-in reference density table for water at temperatures between 10° C and 30°C is included in the balance software. When making density measurements, the material should weigh at least 10.0 mg on an analytical balance and 100 mg on a precision balance.
Formulations can be named and have from 2 to 10 components specified. Once named, they may be recalled and used at any time. Each component of a given formulation can be specified as to its weight or percentage. Each element of a formulation is shown on a dual bar graph as a percentage and displays the desired weight. Thus, each component may be placed on the pan until 100% is indicated.
2 Year Manufacture Warranty
Other Ohaus Voyager Precision Balances Legal for Trade
OHAUS Value in a Full-Featured, Portable Printer The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
Ohaus takes the classic Scout® balance to the next level with the all-new Scout Pro! Designed for use in laboratory, industrial or education applications, the Ohaus Scout Pro continues the tradition set by the Ohaus Scout and Scout II products. Featuring easy-to-use two-button operation, a high-contrast LCD display, multiple weighing units, four application modes, and the option of either RS232 or USB connectivity, the Scout Pro is the portable balance for you!
Simple to operate, Scout digital scales allows weighing with minimal instruction, and the large, crisp display lets you view results from any angle. A sealed front panel, molded spill ring and stainless steel platform frotect from spills and make the Scout Pro digital scales easy to keep clean
Multiple Weighing Units – Including grams, kilograms, pounds, ounces, a combined pound:ounce display - change weighing units at the touch of a button
Multiple Application Modes – Including enhanced parts counting, percentage weighing, totalization, and display hold
Enhanced parts counting with average piece weight recalculation
Totalization for summing sample weights - only Ohaus Scout Pro digital scales allows repeated summation to the limit of the display, not just the capacity of the balance
Percent weighing for comparing sample weights to a reference weight
Display hold for weighing large packages - only Ohaus Scout pro offers this feature in a portable balance
Below-balance weighing using integral weigh below hook for density determination
Easy to Use – The high-contrast LCD display combined with two key operation makes the Scout Pro a snap to operate
USB or RS232 Connectivity – Quickly-installed option with integral cable allows data connection to PC or printer - Only Ohaus Scout Pro offers USB capability in an economical portable balance
Easy to Clean – Removable stainless steel weighing platform, sealed front panel and molded spill ring help keep the Scout Pro safe from spills
Battery or AC Power – Uses 4 ´AA´ batteries with auto shut-off feature for 40 hours of operation, or the Scout Pro can be run on the included AC powerpack
Integral Weigh-Below Hook – Critical for density or specific gravity determination
Integral Security bracket
Integral shipping lock to protect the weighing mechanism during transportation
Sealed front panel and molded spill ring to protect the balance during use
Physical lockswitch to allow the balance to be locked into a specific configuration, reducing operator error
2 year Ohaus warranty
Capacity (g): 400 g
Readability (g): 0.01
Repeatability (Std. Dev.) (g): 0.01
Linearity (g): ±0.01
Capacity x Readability (oz): 14.1095 x 0.0005
Capacity x Readability (ozt): 12.8605 x 0.0005
Capacity x Readability (dwt): 257.21 x 0.01
Application Modes: Parts Counting with Average Piece Weigh Recalculation, Percentage Weighing, Totalization, Display Hold
Tare Range: To Capacity By Subtraction
Over Range Capacity: Capacity +90d
Stabilization Time: 3 seconds
Operating Temp. Range: 50° to 104°F / 10° to 40°C
Power Requirements: AC Adapter (included) or 4 AA Batteries (not included)
Calibration Type: Digital Calibration from Keypad
Calibration Mass (Full Span): 400 g
Calibration Mass (Linear): 200 g
Display: High Contrast LCD with 6 digits 0.6in / 15mm high
Pan Size (in/cm): 4.7 Ø / 12 Ø
Dimensions WxHxD (in/cm): 7.56 x 2.13 x 8.27 / 19.2 x 5.4 x 21.0
Net Weight (lb/kg): 1.8 / 0.8
Shipping Dimensions WxHxD: 10 x 4 x 12 in / 25.4 x 10.2 x 30.5 cm
